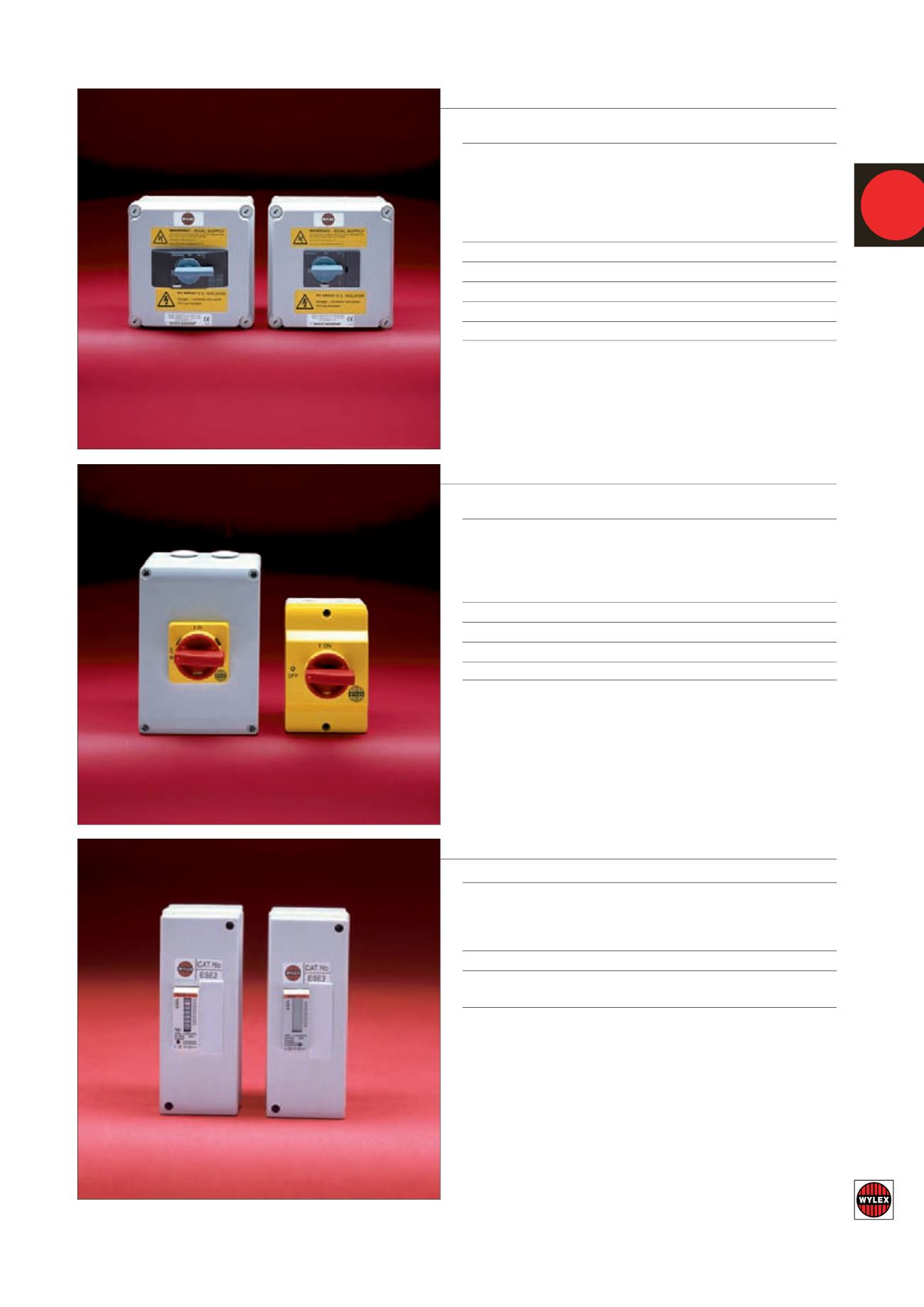

NH PhotoVoltaic
Note: Surge Protection devices andType B RCDs are available
on request
For PV Installation Requirements see page 60/61.
MID METERS IN ENCLOSURE
MID B&D certified meters c/w an IP40 insulated enclosure.
l
Direct connected kWh meter
l
Mechanical barell number or Liquid Crystal Display
l
Pulsed output for BMS monitoring
l
DIN Rail mounting
CAT REF.
DESCRIPTION
NHSPMTRA
1 Mod MID Meter (Analogue)
NHSPMTRD
1 Mod MID Meter (Digital)
AC ISOLATOR
AC Isolator in an all insulated IP65 enclosure with rotary door
interlock and padlock locking Off facility.
l
Multi Pole
l
16,
25 or 32A,AC 21 & AC 23 rated
l
230V AC
l
IP65 Enclosure
l
Rotary Handle & padlock ‘Off’ facility
CAT REF.
DESCRIPTION
NHTPSD16
16A 230V AC 3 Pole
NHTPSD25
25A 230V AC 3 Pole
NHTPSD32
32A 230V AC 3 Pole
DC ISOLATOR
DC Isolator in an all insulated enclosure with rotary handle and
padlock locking Off facility.
l
Multi Pole
l
25A, 32A, 40A
l
500V or
600V DC
l
Insulated Enclosure
l
Rotary Handle & padlock ‘Off’ facility
l
DC - 21B utilization category
CAT REF.
DESCRIPTION
NHDC325004P
32A 500V 4 Pole
NHDC405004P
40A 500V 4 Pole
NHDC256006P
25A 600V 6 Pole
NHDC406006P
40A 600V 6 Pole
NHSPMTRA NHSPMTRD
NHTPSD32
NHTPSD25
NHDC406006P
NHDC405004P
