For PV Installation Requirements see page 60/61.
PV- DCTYPE B RCD IN ENCLOSURE
CAT REF.
DESCRIPTION
NSPE-5579
16A 30mA DP RCD
NSPE-5580
40A 30mA DP RCD
NSPE-5581
40A 300mA DP RCD
NSPE - 5580
COMBINATION DC & AC PV ISOLATORWITH SUNCLIX PLUG IN
CONNECTORS
A combination of DC and AC Isolators in a single enclosure.The DC
Isolator(s) are connected to pre-wired Sunclix PV connectors that allows the
installer to save even more time by comparison to other methods that utilise
two separate enclosures. Class
II
construction.
l
Available with or without local circuit protection devices (MCB, RCD or RCBO)
l
Compact combined DC & AC Isolator in one enclosure
l
Speeds up installation
l
Outgoing Sunclix connections provided (no crimp tool required)
l
Securable in the Off position
l
Robust metal enclosure with Knockout cable entries
CAT REF.
DESCRIPTION
NSPE-5359/11
Dual Isolator with SP 16A MCB
NSPE-5359/10
Dual Isolator twin string 2 x DC & AC with
SP 16A MCB
When circuit protection devices are provided at the inverter output, the
installer must ensure that the characteristics of the protective device are
suitable for the fault levels at that point in the circuit and will meet
required disconnection times
PV supplies (DC &AC) must be arranged so that the converter can be
isolated from both supplies for maintenance

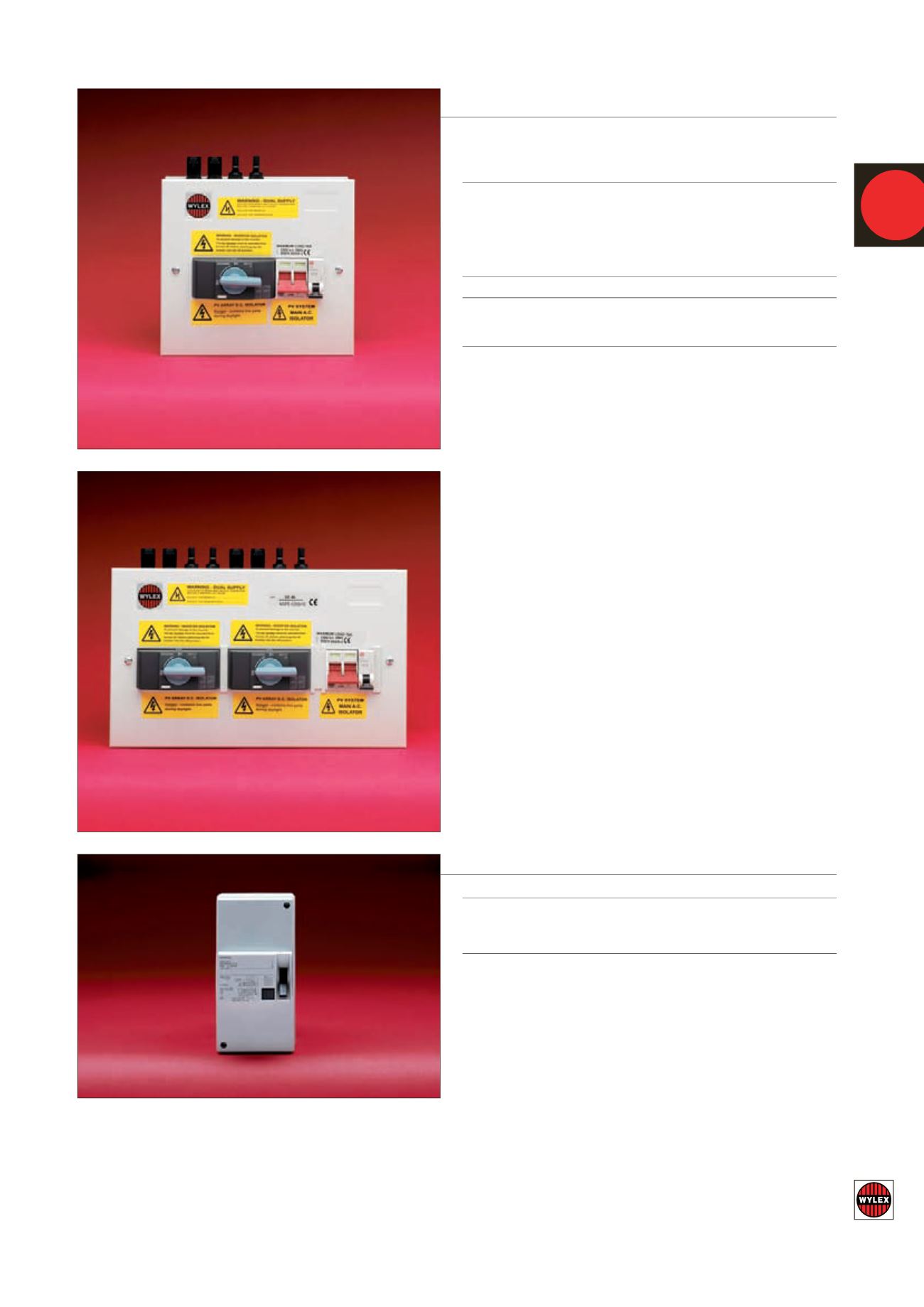

NSPE-5359/11
NSPE-5359/10
