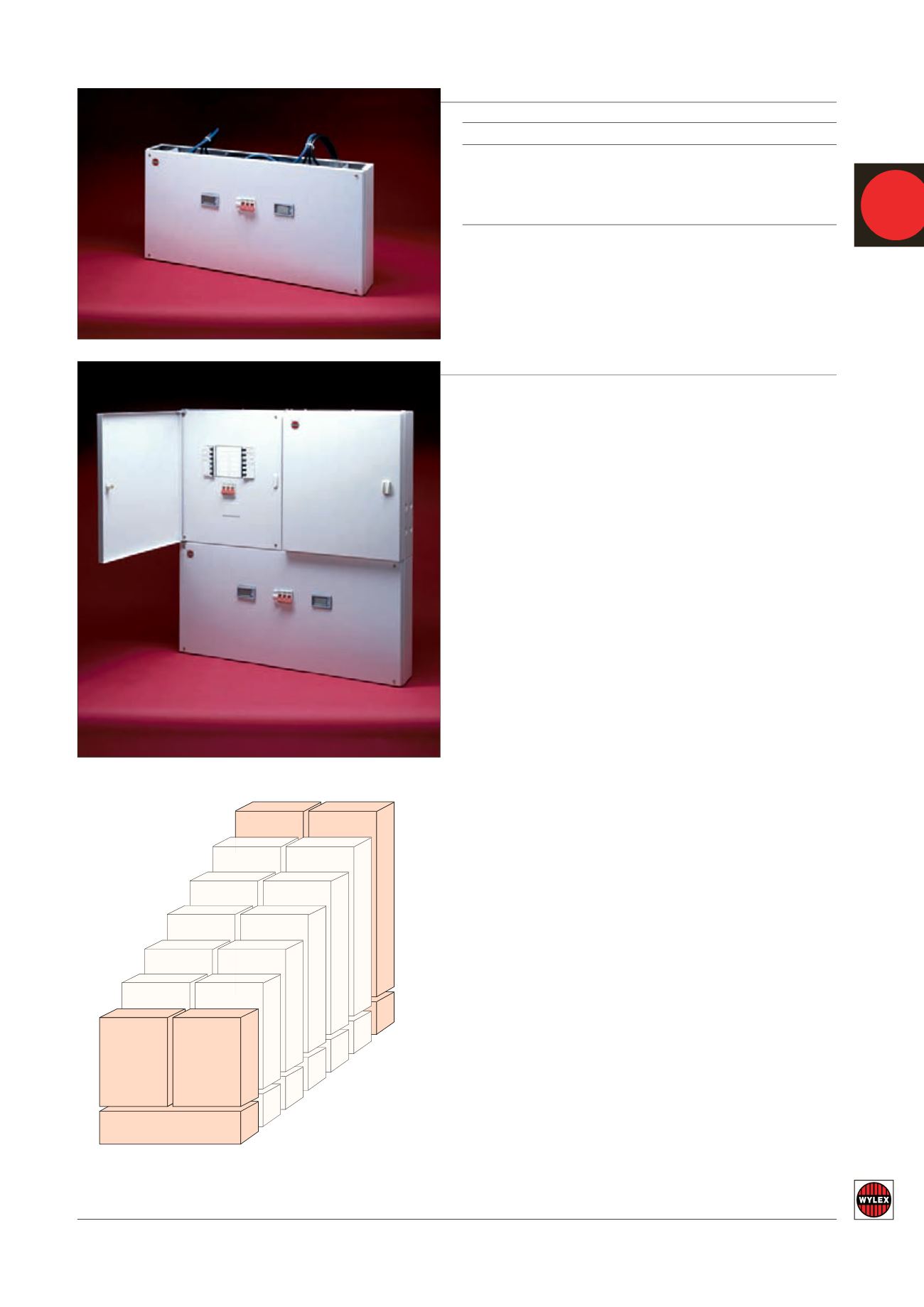

LIGHT AND POWER METER KIT EXTENSION BOXES
CAT REF.
DESCRIPTION
NHTN125LP
125A Meter extension box
l
For use with 125AType BTPN Distribution Boards
l
Complete with meter, current transformers & cable loom
l
Digital meter with kWh, amps, and volts readout
NHTN250LP
250A Meter extension box
l
For use with 250AType BTPN Distribution Boards
l
Complete with meter, current transformers & cable loom
l
Digital meter with kWh, amps, and volts readout
For MID approved options contactWylexTechnical for full details
DUAL METERED LIGHT AND POWER BOARDS
l
Suitable for use with any size of distribution board of the same rating
l
49 Distribution Board combinations
l
Min 2 x 4TP ways
l
Max 2 x 24TP ways
l
Any two standard size distribution boards can be mounted to the L&P metering
unit to meet your specific requirements
A wide range of custom built variations are also available contactWylexTechnical
for full details
49 different configurations can be achieved from the 7Triple pole way standard
design options – 4w, 6w, 8w, 12w, 16w, 20w and 24way of NH distribution boards.
Any standard size of NH unit can be combined together ranging from the 7 basic
even splits options e.g. 4w + 4w plus another 42 uneven split combinations that can
be assembled together for example the utmost combination of a 4w + 24w units.
These 49 design combinations give 17 options for the total number of combined
triple ways ranging from 8TP ways - 4w + 4w to a maximum of 48TP ways - 24w
+ 24w combination.
A wide range of custom built variations are also available, contactWylexTechnical
for full details.
25
NH Metering Options
Metering
Metering
Metering
4 way
Metering
4 way
6 way 6 way
24 way 24 way
8 way 8 way
12 way 12 way
16 way 16 way
20 way 20 way
NHTN125LP
NHTN125LP + 2x NHTN4
