RCD INCOMER
CAT REF RCD RATING MCB WAYS DINMODULES
NHRS204/40 40A 30mA 2
NHRS204/63 63A 30mA 2
NHRS504 100A 30mA 5
NHRS804 100A 30mA 8
NHRS1104 100A 30mA 11
NHRS1404 100A 30mA 14
NHRS1904 100A 30mA 19
NHRM204/40 40A 100mA 2
NHRM204/63 63A 100mA 2
NHRM504 100A 100mA 5
NHRM804 100A 100mA 8
NHRM1104 100A 100mA 11
NHRM1404 100A 100mA 14
NHRM1904 100A 100mA 19
NHRS504+3 100A 30mA 5 3
NHRS804+3 100A 30mA 8 3
NHRS804+6 100A 30mA 8 6
NHRS1104+3 100A 30mA 11 3
NHTM504 100A 100mATD* 5
NHTM804 100A 100mATD* 8
NHTM1104 100A 100mATD* 11
NHTM1404 100A 100mATD* 14
NHTM1904 100A 100mATD* 19
*Time Delay RCD
TIME DELAY FLEXIBLE SPLIT LOAD CONSUMER UNITS
CAT REF RCD RATING MCB WAYS TD RCD *MCB WAYS MCB WAYS
MIN MAX MIN MAX TOTAL*
NHSTM9SL 80A 30mA 3 6 100A 100mA 3 6 9
NHSTM12SL 80A 30mA 3 9 100A 100mA 3 9 12
NHSTM17SL 80A 30mA 5 12 100A 100mA 5 12 17
Flexible consumer units utilise a full DIN rail and accept modular DIN devices
such as a BellTransformer orTimer.
SPLIT LOADWITHTIME DELAY RCD INCOMER
CAT REF RCD RATING MCB WAYS TD RCD *MCB WAYS
NHSTM3604 80A 30mA 3 100A 100mA 6
NHSTM4504 80A 30mA 4 100A 100mA 5
NHSTM5404 80A 30mA 5 100A 100mA 4
NHSTM6304 80A 30mA 6 100A 100mA 3
NHSTM3904 80A 30mA 3 100A 100mA 9
NHSTM4804 80A 30mA 4 100A 100mA 8
NHSTM5704 80A 30mA 5 100A 100mA 7
NHSTM6604 80A 30mA 6 100A 100mA 6
NHSTM7504 80A 30mA 7 100A 100mA 5
NHSTM8404 80A 30mA 8 100A 100mA 4
NHSTM9304 80A 30mA 9 100A 100mA 3
NHSTM12504 80A 30mA 12 100A 100mA 5
NHSTM11604 80A 30mA 11 100A 100mA 6
NHSTM8904 80A 30mA 8 100A 100mA 9
NHSTM9804 80A 30mA 9 100A 100mA 8
NHSTM10704 80A 30mA 10 100A 100mA 7
NHSTM71004 80A 30mA 7 100A 100mA 10
NHSTM61104 80A 30mA 6 100A 100mA 11
NHSTM51204 80A 30mA 5 100A 100mA 12
A range of matching DIN enclosures is also available, see page 51.
* RCBOs or MCBs may be fitted to unprotected ways depending upon the
installation requirements see page 59.
INSULATED - DUAL RCD 2x 80A 30mA RCD
RCD 1 RCD 2 TOTAL No of
CAT REF MSWAYS MCB WAYS MCB WAYS MCB WAYS
NHISS3404 - 3 4 7
NHISS4604 - 4 6 10
NHISS5504 - 5 5 10
NHISS8704 - 7 8 15
INSULATED - FLEXIBLE DUAL RCD 2x 80A 30mA RCD
RCD1 RCD2 TOTAL No of
CAT REF MSWAYS MCB WAYS MCB WAYS MCB WAYS
NHISS10SL - 4 to 6 Max 4 to 6 Max 10
NHISS15SL - 6 to 9 Max 6 to 9 Max 15
6
NH Insulated Range
With DIN
Accessory
Section

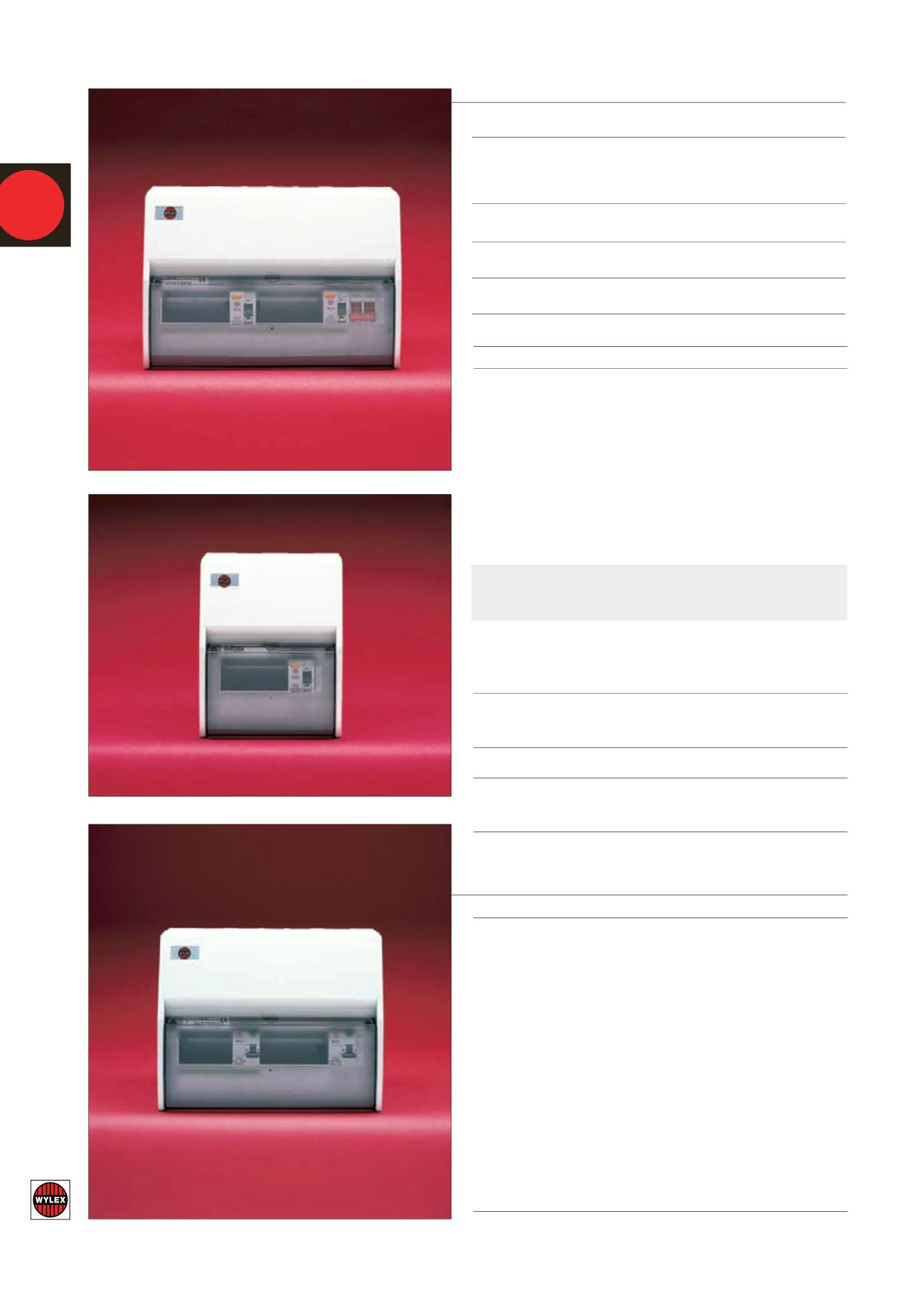

NHISS5504
