Lamps & Lighting Electronics Catalogue 2014

163 / 272

> >
(continued)
Type Line
Voltage
Line
Frequency
Max ballast
on MCB(16A
type B)
Lifetime 90%
surv.
@Tcaselife
Dim.
no.
Packing
type/
Packing
configu-
ration
National Order
Code
Ordering number
(V) (Hz) (x) (h)
HID-PV C 70 /S CDM 220-240 50/60 20 40,000 4 1NO / 12 12 PVC070SCDM 8727900859744 00
HID-PV C 70 /P CDM 220-240 50/60 20 40,000 6 UNP / 12 12 PVC070PCDM 8727900865530 00
HID-PV C 70 /I CDM 220-240 50/60 20 40,000 3 1NO / 12 12 PVC070ICDM 8727900859881 00

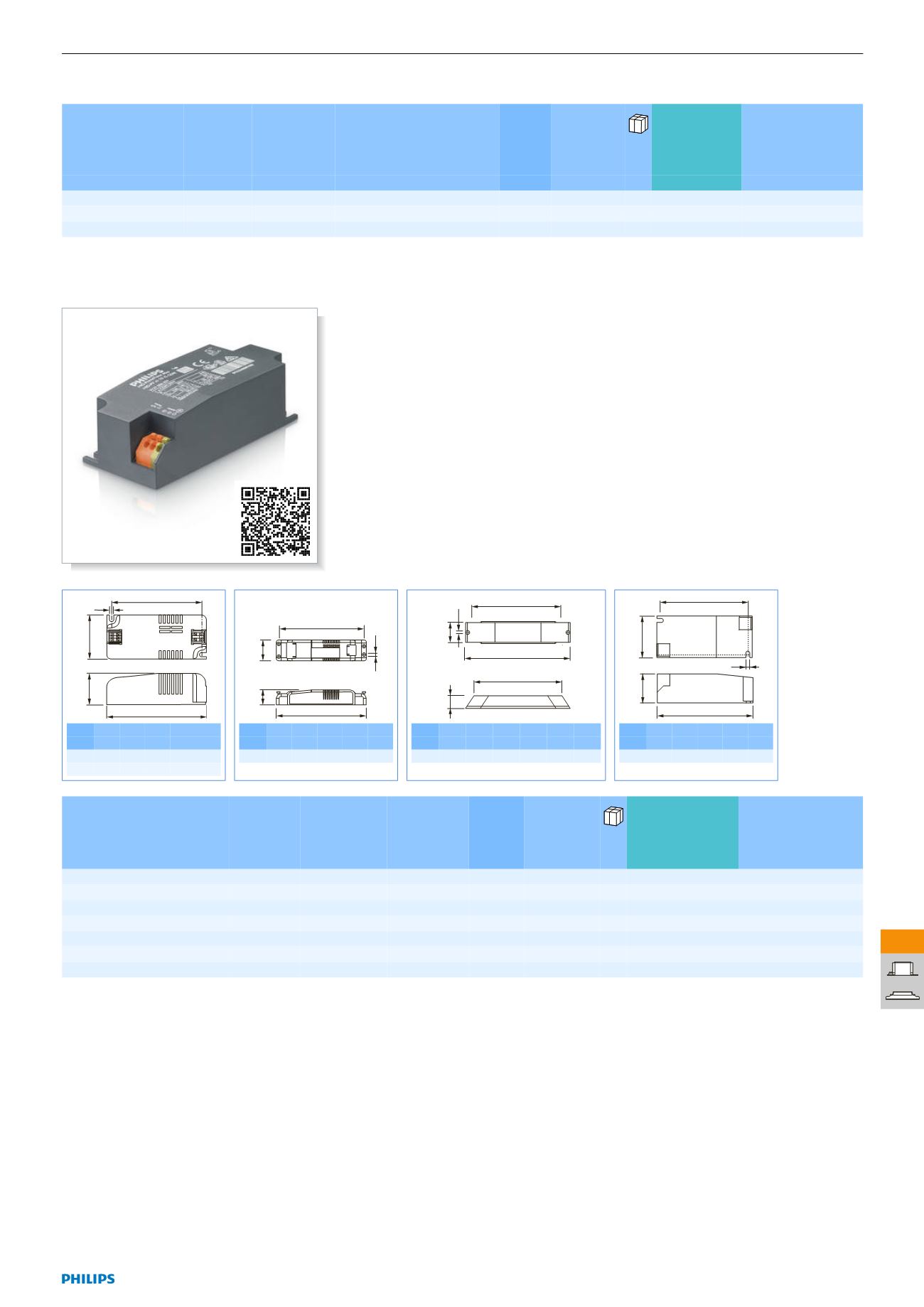

PrimaVision Mini for CDM
PrimaVision Mini (20 W, 35 W & 50 W) for
CDM - Miniature size to enhance creativity
Miniature HID electronic gear for PGJ5
CDM lamps – freeing up the boundaries of
creativity and innovation in luminaire design
Product Benefits
•Miniaturization enables stylish luminaire
design and retrofit halogen replacement
•Optimal lamp performance thanks to
minimal lamp power tolerance
•Easy luminaire design-in
Product Features
•Loop Through feature (in independent
version)
•Smallest gear and highest wattage in
miniature size
•Minimal lamp power spread
•Microprocessor-controlled
•Lamp end-of-life detection
•High Tambient and Tcase temperatures
•Long lifetime of 40,000 hours
Applications
•20/35/50 W accent and decorative lighting
for shops, public spaces, lobbies and o ces
•Suitable for indoor use only
A2
A1
C1
D1
B1
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
1 97.3 88.3 43.3 30.5 4.2
2 97.3 88.3 43.3 30.0 4.2
B1
C1
A1
A2
D1
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
3 190 154 43.3 30 4.2
A2
B1
D1
A1
A3
C1
Dim. A1 A2 A3 B1 C1 D1
no. nom. nom. nom. nom. nom. nom.
4 234.7 225.1 202 49.4 34 4.8
C1
A1
A2
D1
B1
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
5 97.3 88.3 43.3 30.2 4.2
Type Line
Voltage
Line
Frequency
Max ballast
on MCB(16A
type B)
Dim. no. Packing
type/Packing
configu-
ration
National Order
Code
Ordering number
(V) (Hz) (x)
HID-PV m PGJ5 35/S HPF CDM 220-240 50/60 24 1 1NO / 12 12 PVM35S 872790088341100
HID-PV m PGJ5 20 LPF CDM 220-240 50/60 48 3 1NO / 12 12 HIDPVMPGJ5020I 871150090981730
HID-PV m PGJ5 20 LPF CDM 220-240 50/60 36 2 1NO / 12 12 HIDPVMPGJ5020S 871150053608230
HID-PV m 20 /I HPF CDM 220-240 50/60 24 4 UNP 10 PVM20IHPF 872790089060000
HID-PV m 20 /S HPF CDM 220-240 50/60 32 5 1NO / 12 12 PVM20SHPF 871829167159600
HID-PV m 35 /S HPF CDM 220-240 50/60 24 5 1NO / 12 12 PVM35S 871829167161900
HID-PV m 35/I HPF CDM 220-240 50/60 24 4 UNP 10 PVM35I 872790089164500
