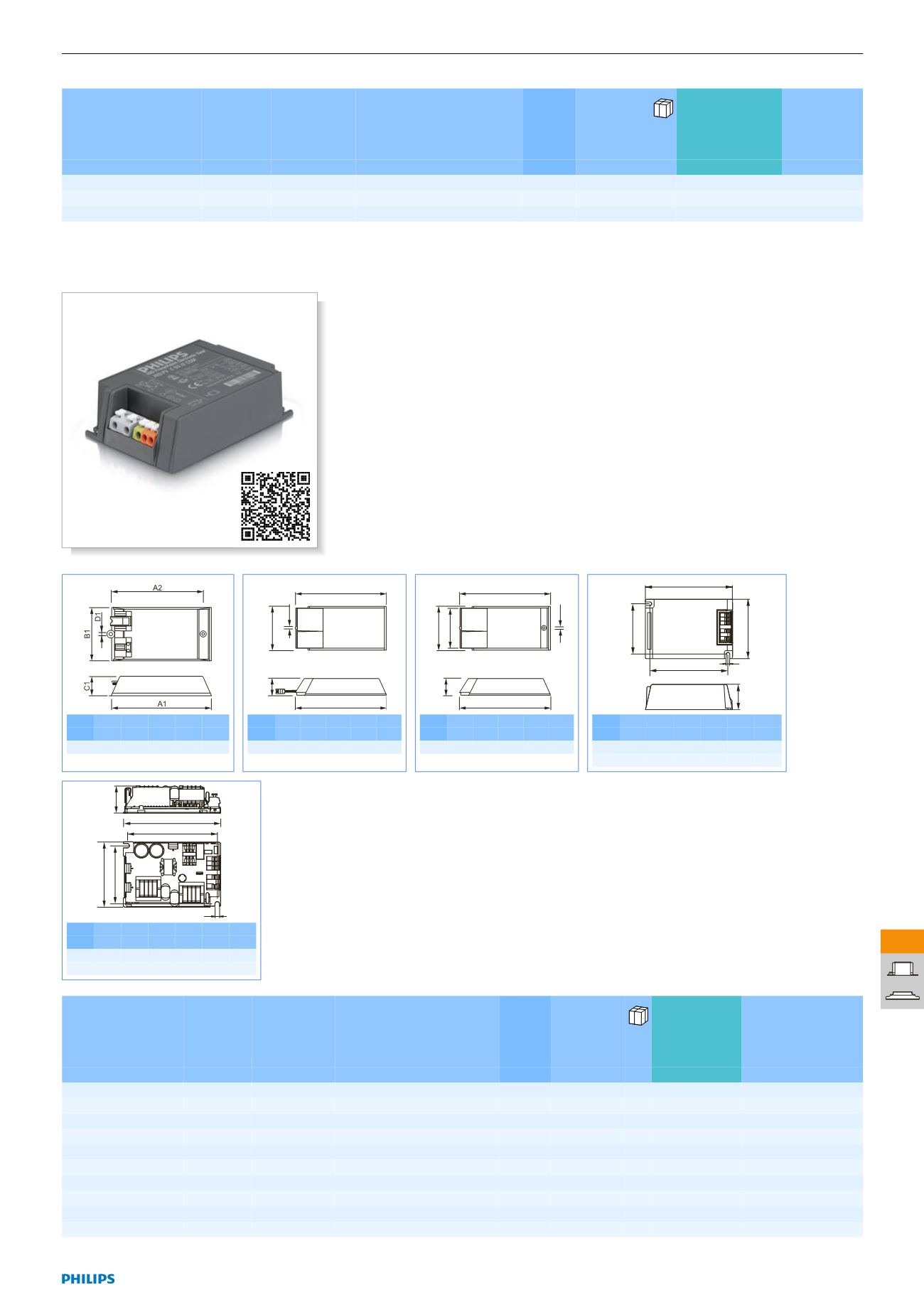

Lamps & Lighting Electronics Catalogue 2014

162 / 272

> >
Type Line
Voltage
Line
Frequency
Max ballast
on MCB(16A
type B)
Lifetime 90%
surv.
@Tcaselife
Dim. no. Packing
type/
Packing
configu-
ration
National Order
Code
Ordering
number
8718291...
(V) (Hz) (x) (h)
HID-AV C 35-70 /S CDM 220-240 50/60 58 40,000 1 1NO / 12 12 HIDAVTW3570S 23310700
HID-AV C 35-70 /I CDM 220-240 50/60 58 40,000 2 1NO / 12 12 HIDAVTW3570I 23312100
HID-AV C 35-70 /C CDM 220-240 50/60 58 40,000 3 1NO / 12 12 HIDAVTW3570C 23314500
PrimaVision Compact for CDM
High quality and robust performance
High-quality, compact and lightweight HID
electronic gear for optimal and reliable
performance of 20, 35, 50 and 70 W CDM
lamps
Product Benefits
•Optimal lamp performance thanks to
minimal lamp power tolerance
•CDM lamp life increased by up to 30%
•Eliminates all visible lamp flicker
Product Features
•Minimal lamp power spread
•Low gear energy losses
•Lamp end-of-life detection
•High Tambient and Tcase temperatures
•Long lifetime of 40,000 hours
Applications
•Accent and decorative lighting for shops,
public spaces, lobbies and o ces
•Suitable for indoor use only
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
1 162.2 143 83 32.4 4.8
B1
A2
A1
C1
D1
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
2 188 170 82.7 34.5 4.8
B1 B2
D1
A2
A1
C1
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
3 188 170 82.7 34.5 4.8
C1
A1
A2 D1
B1 B2
Dim. A1 A2 B1 B2 C1 D1
no. nom. nom. nom. nom. nom. nom.
4 109.6 98.5 74.4 63.7 32.2 4.9
5 109.6 98.5 74.4 32.2 4.9
A2
D1
A1
C1
B1 B2
Dim. A1 A2 B1 B2 C1 D1
no. nom. nom. nom. nom. nom. nom.
6 106.6 98.5 71.6 63.7 29.6 4.9
7 98.5 71.6 63.7 29.6 4.9
Type Line
Voltage
Line
Frequency
Max ballast
on MCB(16A
type B)
Lifetime 90%
surv.
@Tcaselife
Dim.
no.
Packing
type/
Packing
configu-
ration
National Order
Code
Ordering number
(V) (Hz) (x) (h)
HID-PV C 35 /C CDM 220-240 50/60 24 1 1NO / 12 12 HIDPVC35C 8718291228578 00
HID-PV C 35 /G CDM 220-240 50/60 24 40,000 2 1NO / 6 6 PVC35GCDM 8727900916423 00
HID-PV C 35 /I CDM 220-240 50/60 24 40,000 3 1NO / 12 12 PVC035ICDM 8727900859737 00
HID-PV C 35 /S CDM 220-240 50/60 24 40,000 4 UNP / 12 12 PVC035SCDM 8727900859621 00
HID-PV C 35 /P CDM 220-240 50/60 24 40,000 6 UNP / 12 12 PVC035PCDM 8727900865547 00
HID-PV C 50 /C CDM 220-240 50/60 24 1 1NO / 12 12 HIDPVC50C 8718291228455 00
HID-PV C 50 /S CDM 220-240 50/60 24 40,000 5 1NO / 12 12 PVC050SCDM 8727900933635 00
HID-PV C 50 /P CDM 220-240 50/60 24 40,000 7 1NO / 12 12 PVC050PCDM 8727900943382 00
HID-PV C 50 /I CDM 220-240 50/60 24 40,000 3 1NO / 12 12 PVC050ICDM 8727900933659 00
HID-PV C 70 /G CDM 220-240 50/60 20 40,000 2 1NO / 6 6 PVC70GCDM 8727900916447 00
More data see next page
Philips Lamps and Lighting Electronic Catalogue 2014 162
