Unitrunk MR

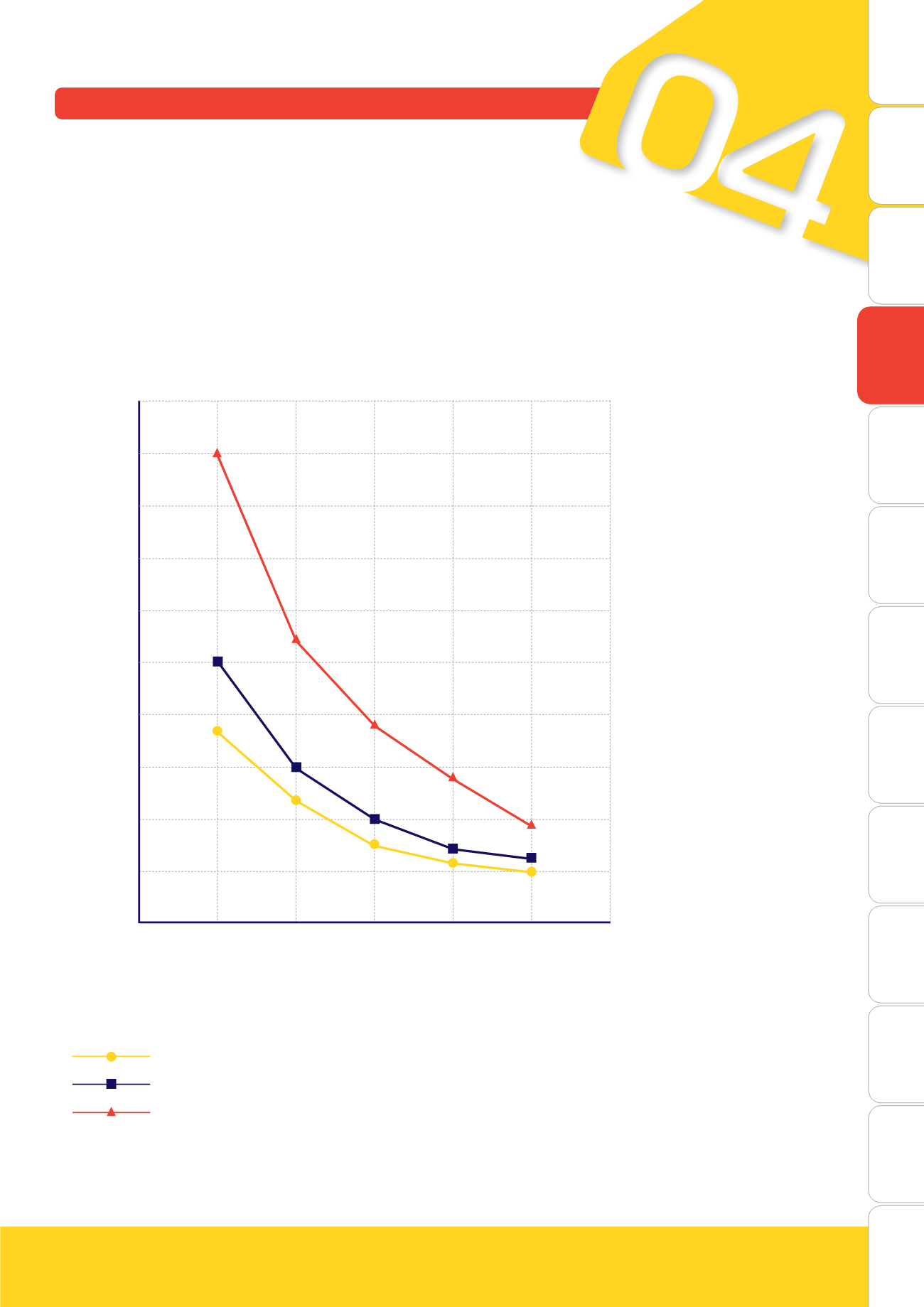

LOADING DATA FOR ALL UNITRUNK MR CABLE TRAY SYSTEMS
Key
50 - 150
225 - 300
450 - 900
200
180
160
140
120
100
80
60
40
20
0 1 1.25 1.5 1.75 2
SPAN in mm
UDL in kg/m
