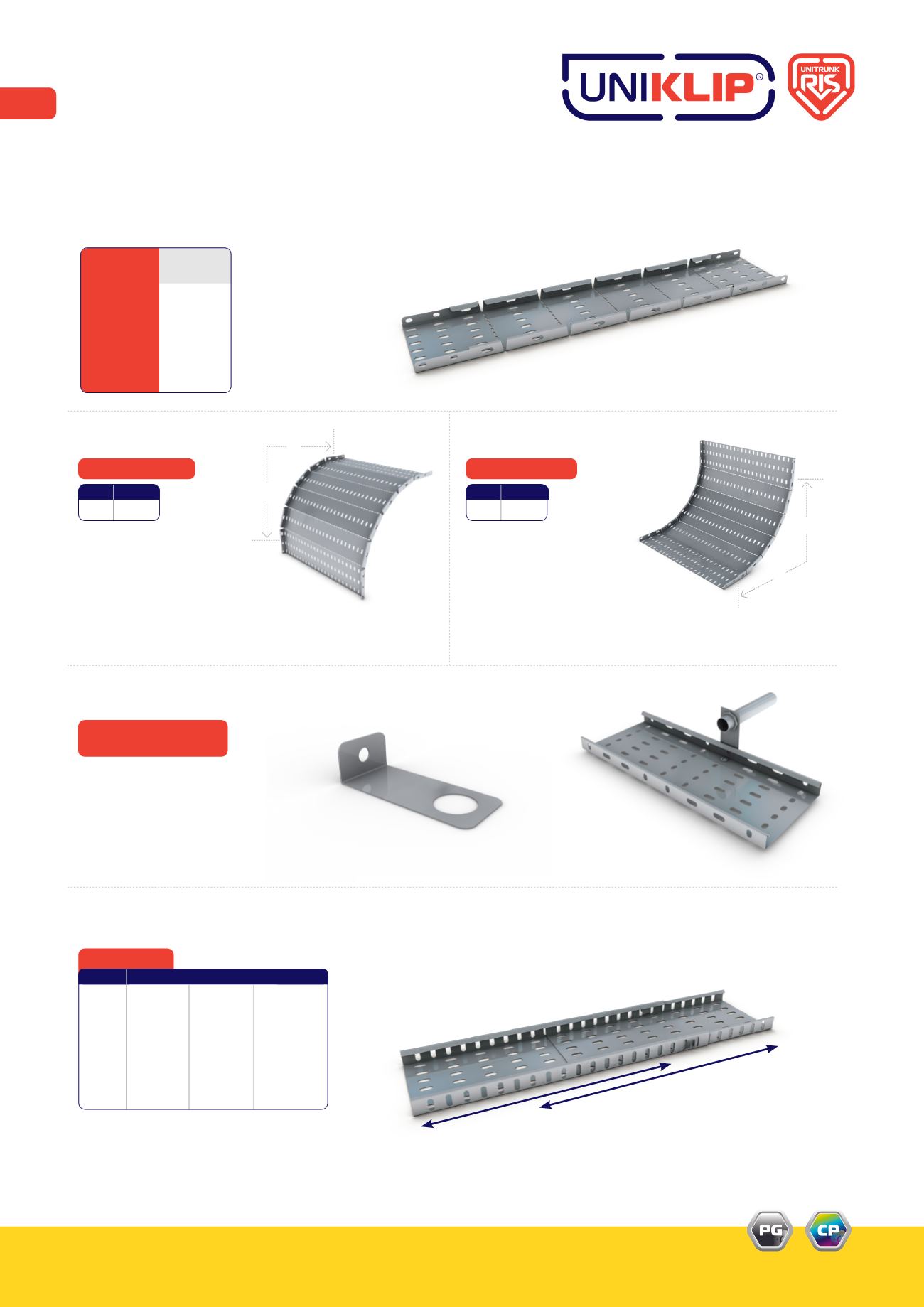

Variable Riser
(Fitting widths W. Sizes in mm)
Standard radius: 300mm.
Outside Riser
Ref. KLMR 600ER
600
326
X
Size
Standard radius: 300mm.
600 will be supplied formed 90
degrees
Inside Riser
Standard radius: 300mm.
600 will be supplied formed 90
degrees
Ref. KLMR 600IR
600
300
X
Size
Ref.
Tray Width
mm
50
75
100
150
225
300
450
KLMR50VR
KLMR75VR
KLMR100VR
KLMR150VR
KLMR225VR
KLMR300VR
KLMR450VR
X
X
X
X
Made to order item. Other lengths available
on request.
Adjustable Range
Adjustable Tray Extension
Ref. KLMRATE
Size
50
75
100
150
225
300
450
600
Adjustable length ranges
300 - 450 500 - 800 750 - 1200
300 - 450 500 - 800 750 - 1200
300 - 450 500 - 800 750 - 1200
300 - 450 500 - 800 750 - 1200
300 - 450 500 - 800 750 - 1200
300 - 450 500 - 800 750 - 1200
300 - 450 500 - 800 750 - 1200
300 - 450 500 - 800 750 - 1200
Suitable For Light/Medium/Heavy.
Conduit Take-off Plate
Ref. TRCB20 (20mm)
Ref. TRCB25 (25mm)
MEDIUM DUTY CABLE TRAY SYSTEMS
Product Finishing Key (See page 24)
UK PATENTED: UK Patent number: GB2476569, IRELAND PATENT PENDING: application number:2010/0795
