Introduction Earthing
Furse earthing components are manufactured to meet exacting British, European and international
standards to ensure robust, long lasting performance in even the harshest soil conditions.
All components are designed to withstand mechanical damage and the thermal and electromechanical stresses
from the earth fault and leakage currents expected within an installation.
Furse high quality earthing components have now been installed in, and continue to be specified for, many low
voltage and high voltage earthing installations worldwide.

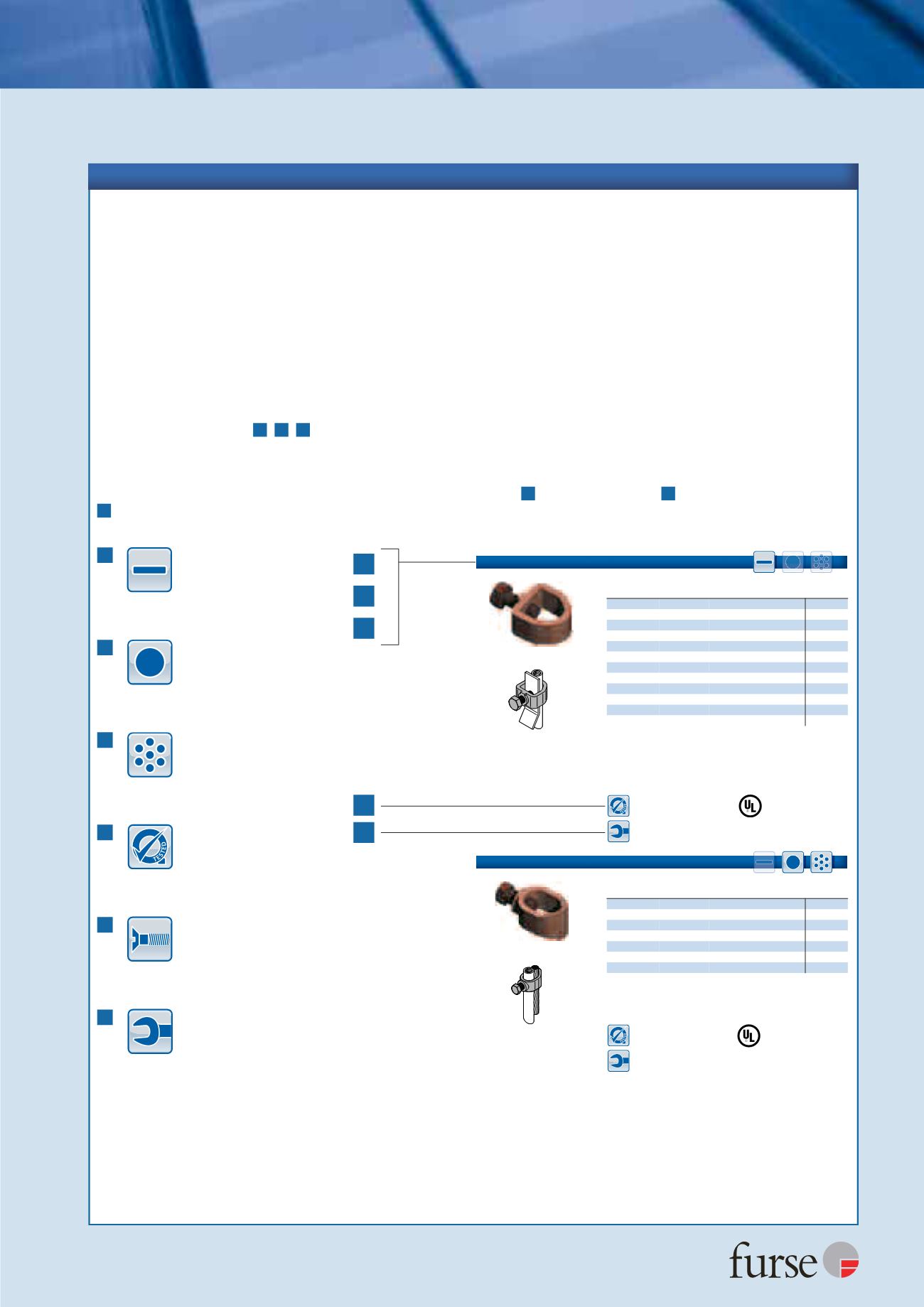

Earthing products shown in this catalogue include where appropriate a range of quick reference icons to define
their conductor compatibility, installation requirements and their testing standard.
These icons, as well as a sample product page, are shown below.
The icon bar above each product defines the appropriate main conductor system to which the product can be
connected.
Therefore, where items , , are highlighted in full, the product is suitable for connection to the main
conductor system shown (see below).
Icons defining installation requirements and product testing feature under the product text.
These are shown in the example below, and on product pages as - testing standard, - fixings required, and
- torque setting.
1 2 3
4 5
6
Special component design and manufacture
For the vast majority of installations, the standard range of earthing components is highly suitable for completing
an earthing system. On occasion however, an installation may include a special requirement needing a non-
standard component.
Where this is the case, our technical services team can develop and design a special component to customer needs,
which on approval can be manufactured in the quantity specified for the project. For further information, or to
discuss a particular project need, please contact us.
Designed for connection of flat tape conductor to an earth rod.
Corrosion resistance, conductivity and mechanical strength are essential
considerations in clamp design to ensure an earthing system remains
operative for many years. All Furse earth rod clamps have high strength
copper alloy bodies and screws e.g. aluminium bronze, phosphor bronze
etc., commercial brass is not used.
BS EN 50164-1 Class H, BS 7430
†UL467 (CR105)
Tightening torque 15 Nm
*Suitable forusewith8mmØ solid circular copper conductor.
Rod to cable clamp (type G)
Nominal rod
diameter
Max.
conductor
WeightPart
each No.
3⁄ 8” 9.5mm 6-35mm2 0.03 kg CR505
1⁄ 2” 12.5mm 16-50mm2 0.05 kg CR510-FU*
5⁄ 8” 16mm 5.2-33.6mm2 0.06 kg G5†
5⁄ 8” 16mm 16-70mm2 0.06 kg CR515*
3⁄ 4” 20mm 5.2-33.6mm2 0.06 kg G6†
3⁄ 4” 20mm 35-95mm2 0.06 kg CR520*
1” 25mm 70-150mm2 0.14 kg CR525
BS EN 50164-1 Class H, BS 7430
†UL467 (G5 & G6)
Tightening torque 12 Nm
Nominal rod
diameter
Max.
conductor
WeightPart
each No.
1⁄ 2” 12.7mm 26 x12mm 0.15 kg CR105 †
5⁄ 8” 16mm 26 x12mm 0.15 kg CR105 †
3⁄ 4” 20mm 26x10mm 0.15 kg CR105 †
5⁄ 8” 16mm 30 x2mm 0.16 kg CR108
3⁄ 4” 20mm 30x2mm 0.16 kg CR108
5⁄ 8” 16mm 40 x12mm 0.24 kg CR110
5⁄ 8” 16mm 51x8mm 0.30 kg CR115
3⁄ 4” 20mm 51 x12mm 0.30 kg CR125
1⁄ 2” 12.7mm 26 x20mm 0.23 kg CR130
5⁄ 8” 16mm 26 x18mm 0.23 kg CR130
3⁄ 4” 20mm 26 x10mm 0.23 kg CR130
1” 25mm 26 x10mm 0.23 kg CR130
Rod to tape clamp (type A)
CR105
CR515
High strength copper alloy clamp designed to provide a high quality, low
resistance connection between solid circular or stranded conductor and an
earth rod.
1
4
6
2
3
1 Component is suitable for
use with flat tape conductor
in sizes shown
2 Component is suitable for
use with solid circular
conductor in sizes shown
3 Component is suitable for
use with stranded conductor
in sizes shown
4 Component has been
tested to the quoted
standard (BS/BS EN/IEC/UL)
5 Component requires
additional fixings as
advised to enable
installation
6 Component should be
tightened to the torque
setting advised
