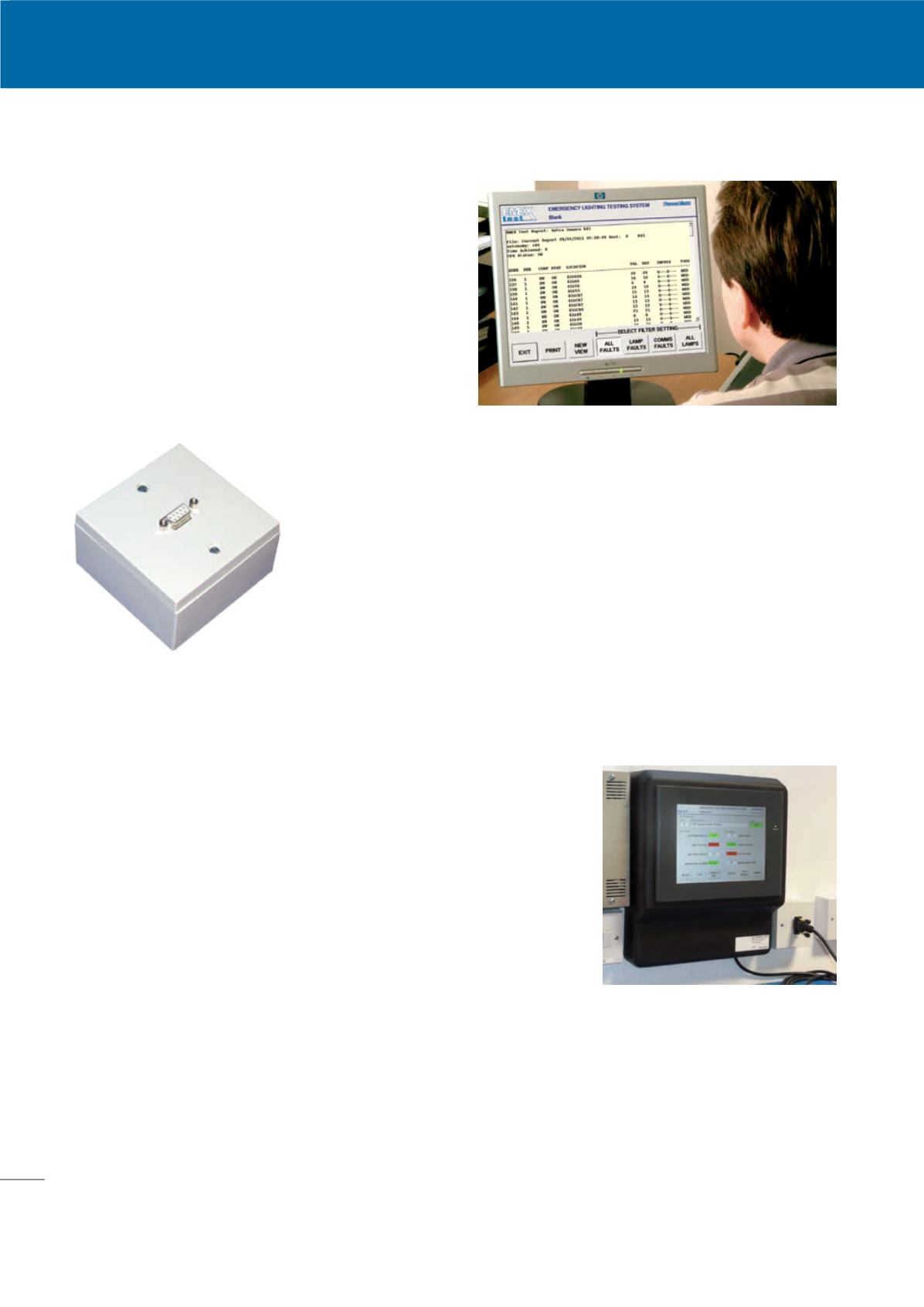

EMEX Test software
The focal point of an EMEX Test monitoring network is a PC running the EMEX Test software package.
EMEX Test software is Windows™ based. It provides
detailed address information of all connected Central
Power Supply Systems and luminaires. Scheduled
testing is configured quickly and easily – once set
up it can be left to operate, without further input,
in the background. Reports are created and collated
automatically. These are date stamped and can be
printed or distributed electronically.
MXKP station adapter kit
Included with /TS Systems
The MXKP station adapter kit is required to integrate the EMEX Power
static inverter with the EMEX Testing System. Ordered separately, the
MXKP station adapter kit is factory fitted in the inverter cabinet.
l 4,000 luminaire address capability
l Output capacity of 100 x MXD4 and/or MXC units per MXKP
l 2-core data bus to MXD4 and MXC units and to/from MXKP units
l 2-core screened 240V, (1.0mm2 minimum) data cable
(Max. distance 2500 metres – additional repeaters available)
MXIN test input node
Included with /TS Systems
Provides an input point to allow roving access to the system using a
laptop PC.
Wall mounted EMEX Test Control Panel
Description
l Wall mounted EMEX Test Control Panel utilising a touch screen for
operation of the Emex Test programme 8” High Brightness TFT LCD
(400 cd/m ), long life-time display, support 800 x 600
l Fanless and AMD LX-800 500MHz processor
l One 200-pin SO-DIMM DDR 266/333MHz
l up to 1GB Sealed resistive touch screen
l Support Panel / VESA 75 mount
l DC 11~28V wide-range power input
Specification details
l Maximum AC voltage 240V AC 50/60Hz
l Windows CE net 4.2 / 5.0, XP, XP Embedded
l I/O ports: COM1: RS-232, COM2: RS-232/422/485, COM3: RS-232, External
USB 2.0 x2, 2x5 2.0mm pin header for internal USB 2.0 x2, 1xVGA, 1 x
PS/2 keyboard & mouse, 1xReset switch , 1 x power on/off switch 1 x
LAN (10/100Mb),
Construction
l Plastic front panel & metal housing IP 20
l Enclosure dimensions 318mm L x 270mm W x 104mm H
l Cable termination 2.5mm2 maximum
l Cable entry 20mm gland hole
System components
