51 / 156
Adaptaflex Product Catalogue |
LIT211GB 0715
2/37
2
Non-metallic conduit systems

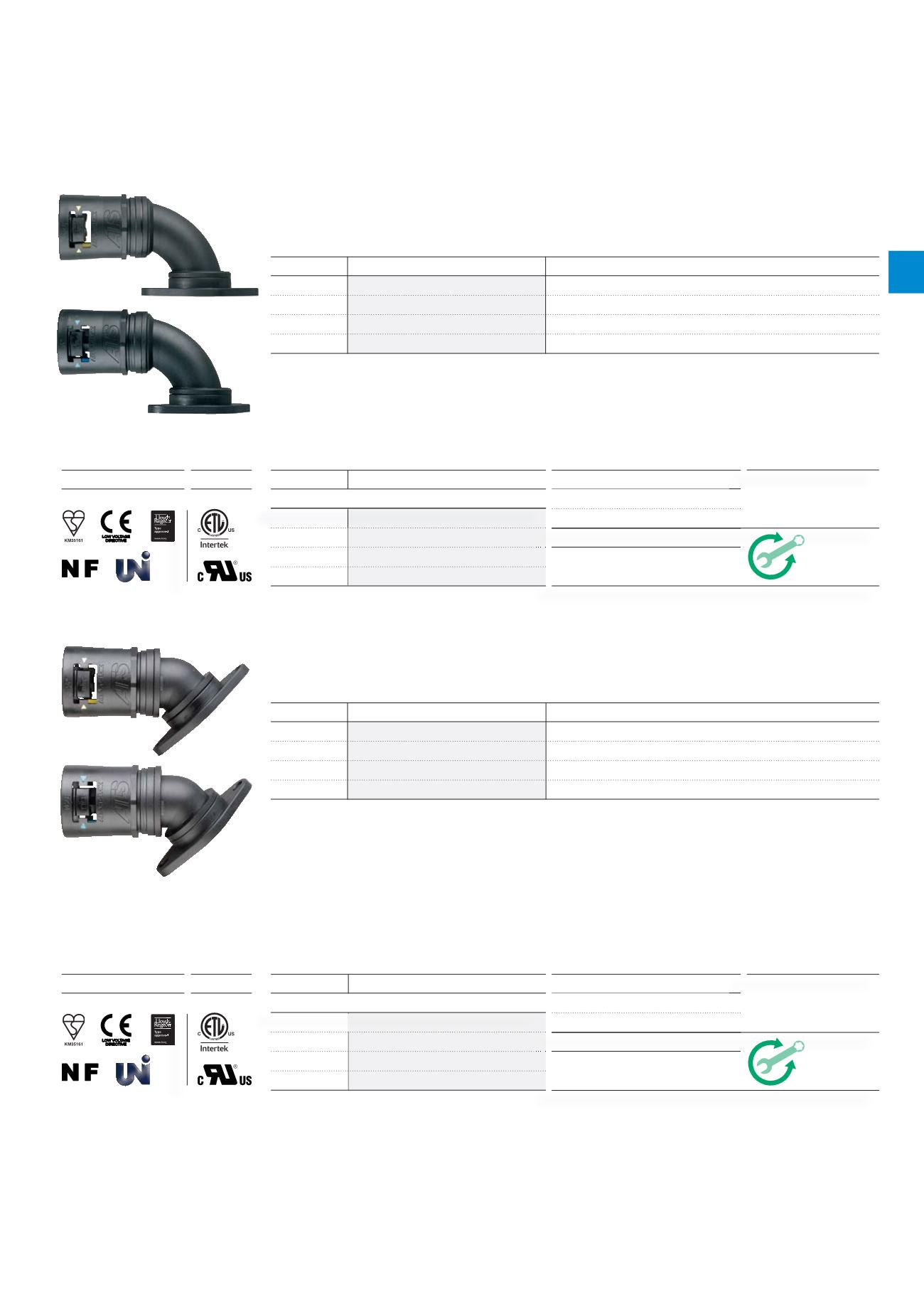

Panel Mounting Type FL/C90 & FL45 - Adaptalok ATS
™
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PADL / PF
IP40
Yes
IP65
Yes
IP68
Yes (4 bar 30mins)
IP69K
Yes
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Panel Mounting Type FL/C90 - Adaptalok ATS
™
90º Elbow Body - Panel Mounting Swivel Flange
/
For panel mounting via 2 hole fixing & integral face seal
Materials:
Polyamide (Nylon) 66/TPE /
Colour:
Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Part No.
Nominal Conduit Size
AT13/FL/C90 13mm
AT16/FL/C90 16mm
AT21/FL/C90 21mm
AT28/FL/C90 28mm
To order quote part number, body colour & Elastomer colour, e.g. AT21/FL/C90/BLB
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PADL / PF
IP40
Yes
IP65
Yes
IP68
Yes (4 bar 30mins)
IP69K
Yes
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Panel Mounting Type FL45 - Adaptalok ATS
™
45º Elbow Body - Panel Mounting Swivel Flange
/
With integral face seal
Materials:
Polyamide (Nylon) 66/TPE /
Colour:
Black (BL), Grey (GR) / Yellow (W), Blue (B) Elastomer
Part No.
Nominal Conduit Size
AT16/FL/45 16mm
AT21/FL/45 21mm
AT28/FL/45 28mm
AT54/FL/45 54mm
To order quote part number, body colour & Elastomer colour, e.g. AT21/FL/45/BLB
Panel Mounting Type FL45
45º Elbow Body
Panel Mounting Type FL/C90
90º Elbow Body
Approvals
Blue Elastomer
Version Only
Approvals
Blue Elastomer
Version Only
