Adaptaflex Product Catalogue |
LIT211GB 0715
2
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PADL / PF
IP40
Yes
IP65
Yes
IP68
Yes (4 bar 30mins)
IP69K
Yes

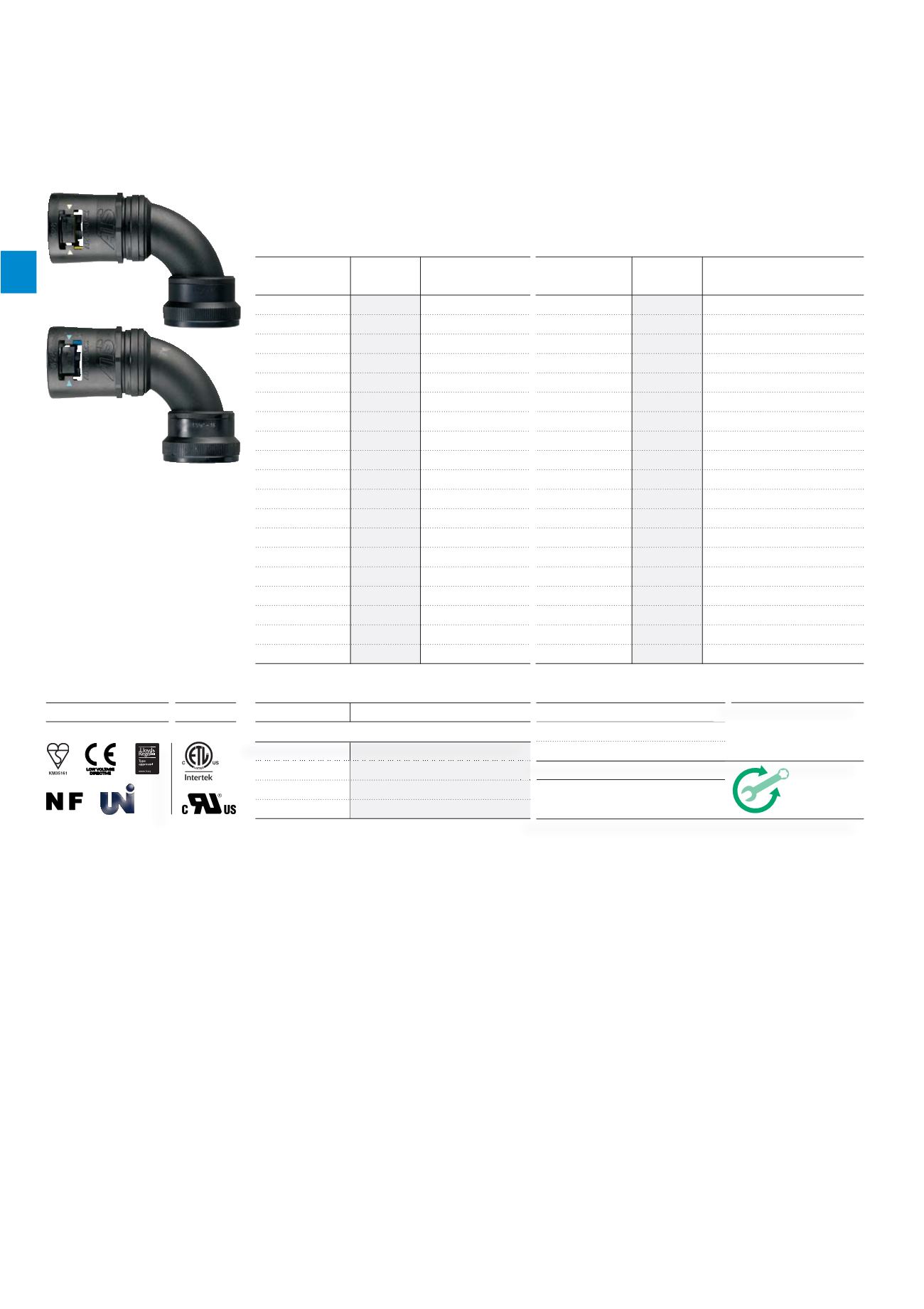

UNEF Type CSF90 - Adaptalok ATS
™
90º Elbow Body - Swivel Internal Female Thread
/
For coupling to UNEF circular connectors
Materials:
Polyamide (Nylon) 66, Aluminium/TPE /
Colour:
Black (BL) Only / Yellow (Y), Blue (B) Elastomer
Nominal
Connector
Nominal
Connector
Part No.
Conduit Size UNEF Thread
Part No.
Conduit Size UNEF Thread
AT13/U063/CSF90 13mm
5/8” - 24
AT21/U144/CSF90 21mm
1 7/16” - 18
AT13/U075/CSF90 13mm
3/4” - 20
AT21/U175/CSF90 21mm
1 3/4” - 18
AT13/U088/CSF90 13mm
7/8” - 20
AT28/U088/CSF90 28mm
7/8” - 20
AT16/U063/CSF90 16mm
5/8” - 24
AT28/U094/CSF90 28mm
15/16” - 20
AT16/U075/CSF90 16mm
3/4” - 20
AT28/U100/CSF90 28mm
1” - 20
AT16/U081/CSF90 16mm
13/16” - 20
AT28/U119/CSF90 28mm
1 3/16” - 18
AT16/U088/CSF90 16mm
7/8” - 20
AT28/U138/CSF90 28mm
1 3/8” - 18
AT16/U094/CSF90 16mm
15/16” - 20
AT28/U144/CSF90 28mm
1 7/16” - 18
AT16/U100/CSF90 16mm
1” - 20
AT28/U175/CSF90 28mm
1 3/4” - 18
AT16/U119/CSF90 16mm
1 3/16” - 18
AT28/U200/CSF90 28mm
2” - 16
AT16/U131/CSF90 16mm
1 5/16” - 18
AT28/U225/CSF90 28mm
2 1/4” - 16
AT21/U075/CSF90 21mm
3/4” - 20
AT34/U100/CSF90 34mm
1” - 20
AT21/U088/CSF90 21mm
7/8” - 20
AT34/U119/CSF90 34mm
1 3/16” - 18
AT21/U094/CSF90 21mm
15/16” - 20
AT34/U144/CSF90 34mm
1 7/16” - 18
AT21/U100/CSF90 21mm
1” - 20
AT34/U175/CSF90 34mm
1 3/4” - 18
AT21/U113/CSF90 21mm
1 1/8” - 18
AT34/U200/CSF90 34mm
2” - 16
AT21/U119/CSF90 21mm
1 3/16” - 18
AT42/U175/CSF90 42mm
1 3/4” - 18
AT21/U131/CSF90 21mm
1 5/16” - 18
AT42/U200/CSF90 42mm
2” - 16
AT21/U138/CSF90 21mm
1 3/8” - 18
To order quote part number, body colour & Elastomer colour, e.g. AT16/U063/CSF90/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
UNEF Type CSF90
90º Elbow Body
Non-metallic conduit systems
UNEF Type CSF90 - Adaptalok ATS
™
Approvals
Blue Elastomer
Version Only
