IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PADL / PF
IP40
Yes
IP65
Yes
IP68
Yes (4 bar 30mins)
IP69K
Yes

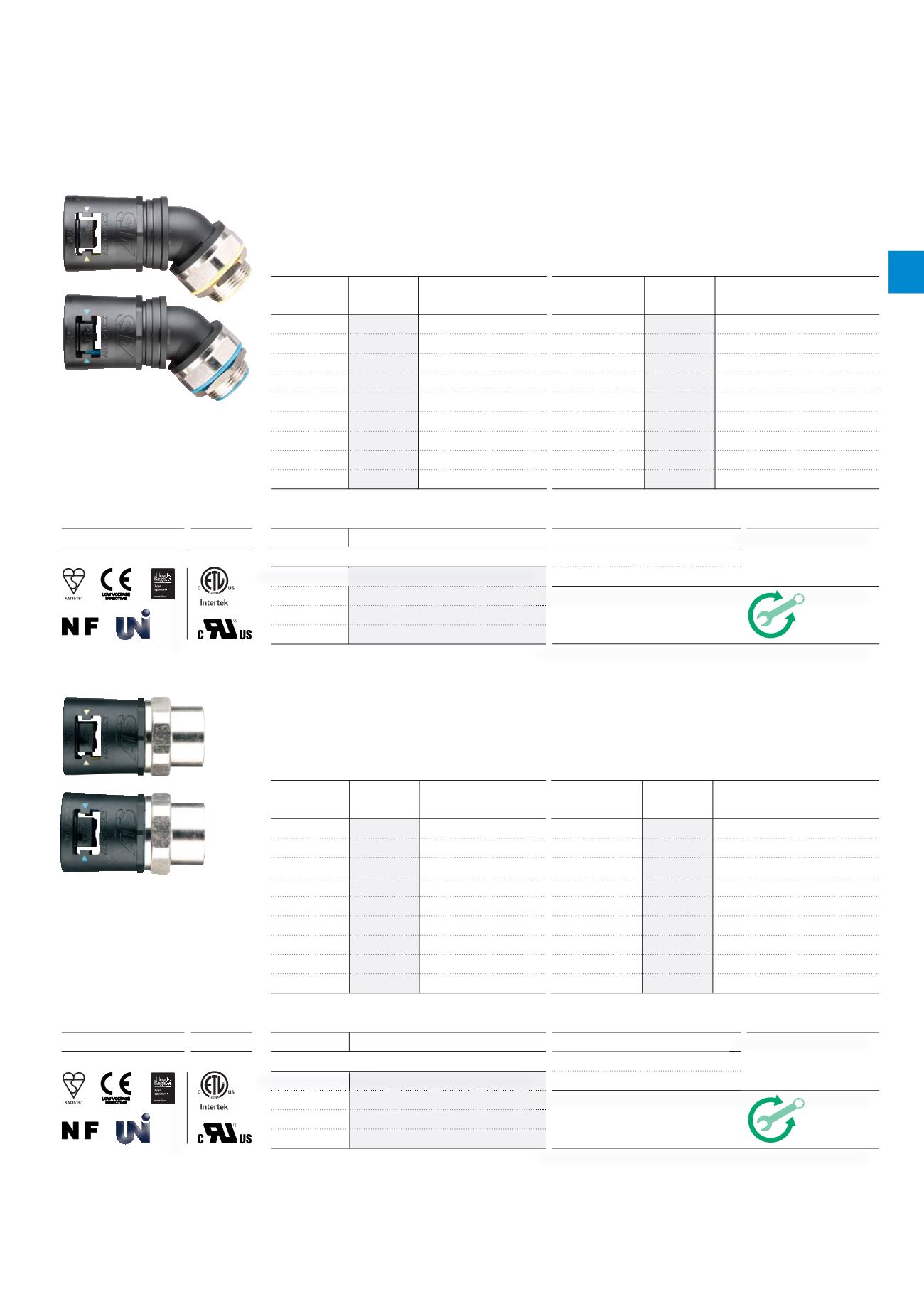

Type S45 - Adaptalok ATS
™
45º Elbow Body - Swivel External Male Thread
/
For insertion into threaded entries & knockouts. Order locknuts separately
Materials:
Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE
Colour:
Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal
Metric
Nominal
NPT
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AT13/M16/S45 13mm
M16
AT13/038/S45
13mm
3/8”
AT16/M16/S45 16mm
M16
AT16/038/S45
16mm
3/8”
AT21/M20/S45 21mm
M20
AT21/050/S45
21mm
1/2”
AT28/M25/S45 28mm
M25
AT28/075/S45
28mm
3/4”
AT34/M32/S45 34mm
M32
AT34/100/S45
34mm
1”
AT42/M40/S45 42mm
M40
AT42/125/S45
42mm
1 1/4”
AT48/M50/S45 48mm
M50
AT48/150/S45
48mm
1 1/2”
AT54/M50/S45 54mm
M50
AT54/150/S45
54mm
1 1/2”
AT54/M63/S45 54mm
M63
AT54/200/S45
54mm
2”
To order quote part number, body colour & Elastomer colour, e.g. AT54/M63/S45/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Type S45
45º Elbow Body
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PADL / PF
IP40
Yes
IP65
Yes
IP68
Yes (4 bar 30mins)
IP69K
Yes
Type SFA - Adaptalok ATS
™
Straight Fitting - Swivel Internal Female Thread
/
For attachments to external threads & other fittings
Materials:
Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE
Colour:
Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal
Metric
Nominal
NPT
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AT13/M16/SFA 13mm
M16
AT13/038/SFA
13mm
3/8”
AT16/M16/SFA 16mm
M16
AT16/038/SFA
16mm
3/8”
AT21/M20/SFA 21mm
M20
AT21/050/SFA
21mm
1/2”
AT28/M25/SFA 28mm
M25
AT28/075/SFA
28mm
3/4”
AT34/M32/SFA 34mm
M32
AT34/100/SFA
34mm
1”
AT42/M40/SFA 42mm
M40
AT42/125/SFA
42mm
1 1/4”
AT48/M50/SFA 48mm
M50
AT48/150/SFA
48mm
1 1/2”
AT54/M50/SFA 54mm
M50
AT54/M63/SFA 54mm
M63
AT54/200/SFA
54mm
2”
To order quote part number, body colour & Elastomer colour, e.g. AT54/M63/SFA/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Type SFA
Straight Fitting
Non-metallic conduit systems
Type S45 & SFA - Adaptalok ATS
™
Approvals
Blue Elastomer
Version Only
Approvals
Blue Elastomer
Version Only
