57 / 156
Adaptaflex Product Catalogue |
LIT211GB 0715
2/43
2

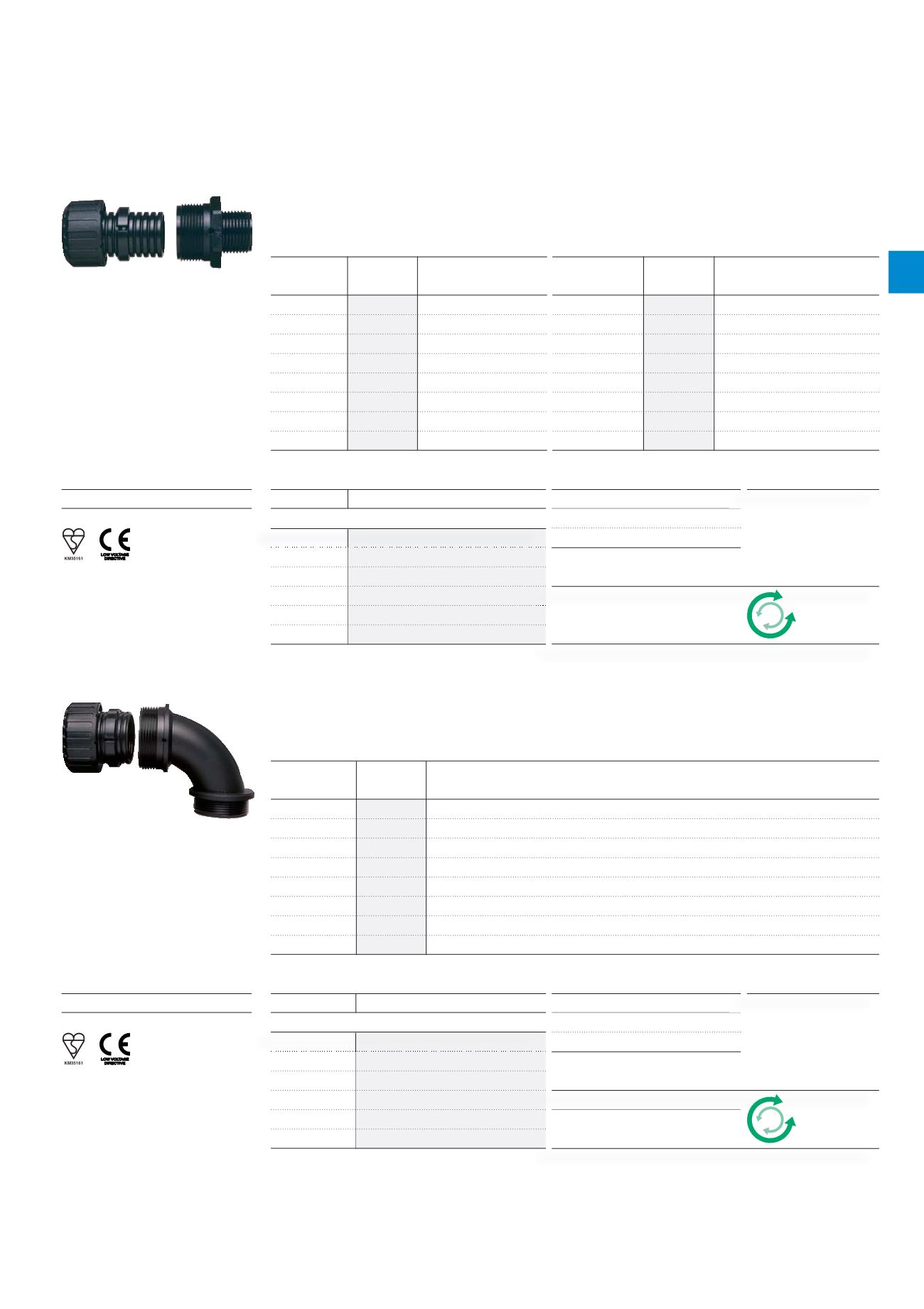

Non-metallic conduit systems
Type A & C90 - Adaptaring
Type A - Adaptaring
Straight Fitting - Fixed External Male Thread
/
For insertion into threaded entries & knockouts. Locknut supplied with METRIC THREAD ONLY
Materials:
Polyamide (Nylon) 66 & Acetal (POM) /
Colour:
Black (BL) Only
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AR13/M16/A 13mm
M16
AR13/PG9/A
13mm
PG9
AR16/M16/A 16mm
M16
AR16/PG11/A
16mm
PG11
AR16/M20/A 16mm
M20
AR16/PG13/A
16mm
PG13.5
AR21/M20/A 21mm
M20
AR21/PG16/A
21mm
PG16
AR28/M25/A 28mm
M25
AR28/PG21/A
28mm
PG21
AR34/M32/A 34mm
M32
AR34/PG29/A
34mm
PG29
AR42/M40/A 42mm
M40
AR42/PG36/A
42mm
PG36
AR54/M50/A 54mm
M50
AR54/PG48/A
54mm
PG48
To order quote part number, e.g. AR21/M20/A/BL
PF & NPT thread sizes available
Type A
Straight Fitting
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP40
Yes
IP65
N/A
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Fitting Characteristics
Approvals
Type C90 - Adaptaring
90º Elbow Fitting - Fixed External Male Thread
/
For insertion into knockouts. Locknut supplied with METRIC THREAD ONLY
Materials:
Polyamide (Nylon) 66 & Acetal (POM) /
Colour:
Black (BL) Only
Nominal
Metric
Part No.
Conduit Size Thread
AR13/M16/C90 13mm
M16
AR16/M16/C90 16mm
M16
AR16/M20/C90 16mm
M20
AR21/M20/C90 21mm
M20
AR28/M25/C90 28mm
M25
AR34/M32/C90 34mm
M32
AR42/M40/C90 42mm
M40
AR54/M50/C90 54mm
M50
To order quote part number & body colour, e.g. AR21/M20/C90/BL
PF & NPT thread sizes available
Type C90
90º Elbow Fitting
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP40
Yes
IP65
N/A
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Fitting Characteristics
Approvals
