HomeSafe Product Guide 27

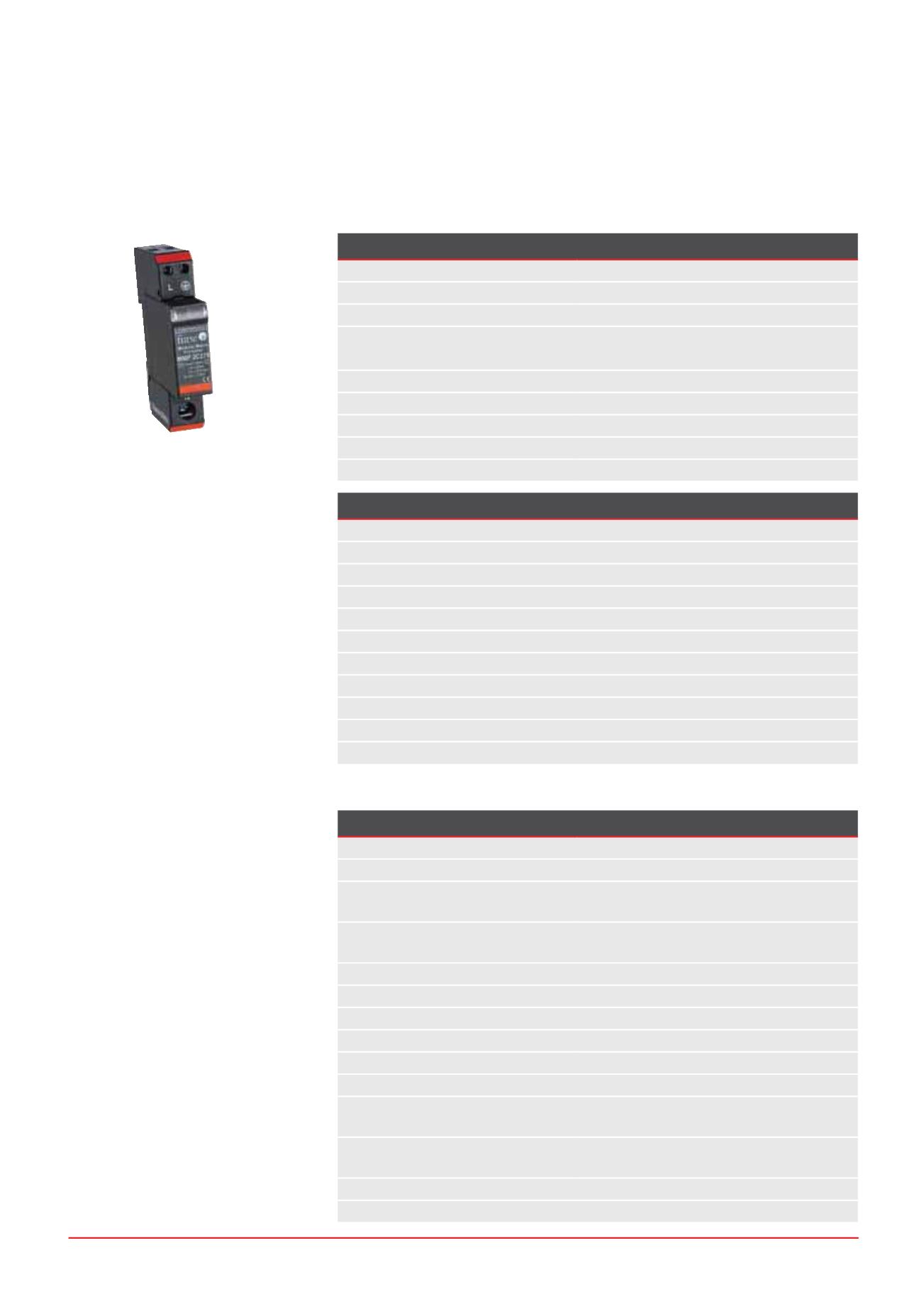

MMP 2C275
$KDBSQHB@K 2ODBHkB@SHNM
MMP 2C275/2
MMP 2C275/1+1T
Installation
TN-S / TN-C-S
TT
-NLHM@K UNKS@FD 4N
220-240 VRMS
220-240 VRMS
Nominal frequency range
47-63 Hz
47-63 Hz
Maximum continuous
NODQ@SHMFUNKS@FD 4B
275 Vac / 350 Vdc 275 Vac / 350 Vdc
Maximum back up fuse
100 AgL
100 AgL
Short circuit capability
25 kA / 50 Hz
25 kA / 50 Hz
Signal contact ratings
250 VRMS / 0.5 A 250 VRMS / 0.5 A
Signal contact module part no.
MMP 2C275/1/S MMP 2C275/1+1/S
Replacement module part no.
MMP 2C275
MMP 2C275/TT
3Q@MRHDMS 2ODBHkB@SHNM
MMP 2C275/2
MMP 2C275/1+1T
QQDRSDQ BK@RRHkB@SHNM
1
EN
2
2
IEC
II
II
E DIN VDE 0675
C
C
+DS SGQNTFG UNKS@FD 4O
2
@S J ƅR
< 0.9 kV
< 0.9 kV
at
I
M
ƅR
< 1.5 kV
< 1.5 kV
Nominal discharge current
I
M
ƅR
20 kA
20 kA / 20 kA (N-E)
Maximum discharge current
I
L@W
ƅR
40 kA
40 kA / 40 kA (N-E)
1
Tested to BS EN/IEC-61643
2
Values stated are per pole
,DBG@MHB@K 2ODBHkB@SHNM
MMP 2C275/2
MMP 2C275/1+1T
Temperature range
-40 to +80 ºC
Connection type
for power (upper terminals)
6 mm2 solid conductor, 4 mm2 stranded
conductor
for signal (lower terminals)
35 mm2 solid conductor, 25 mm2
stranded conductor
for signal (remote contact)
1.5 mm2 conductor (/S option)
Mounting
Indoor, 35mm top hat DIN rail
#DFQDD NE OQNSDBSHNM
IP20
Case material
Thermoplastic, UL 94 V-0
#HLDMRHNMR
,DBG@MHB@K RODBHkB@SHNM
MMP 2C275/2
MMP 2C275/1+1T
for /2 & /1+1 versions to DIN 43880
90 x 68 x 17.5 mm
(1TE)
90 x 68 x 17.5 mm
(1TE)
Units with the remote signal contact
terminals (removable) are 100 mm high
Enclosure dimensions
for up to /4 versions (4TE)
170 x 98 x 105 mm (MMP ENC4)
