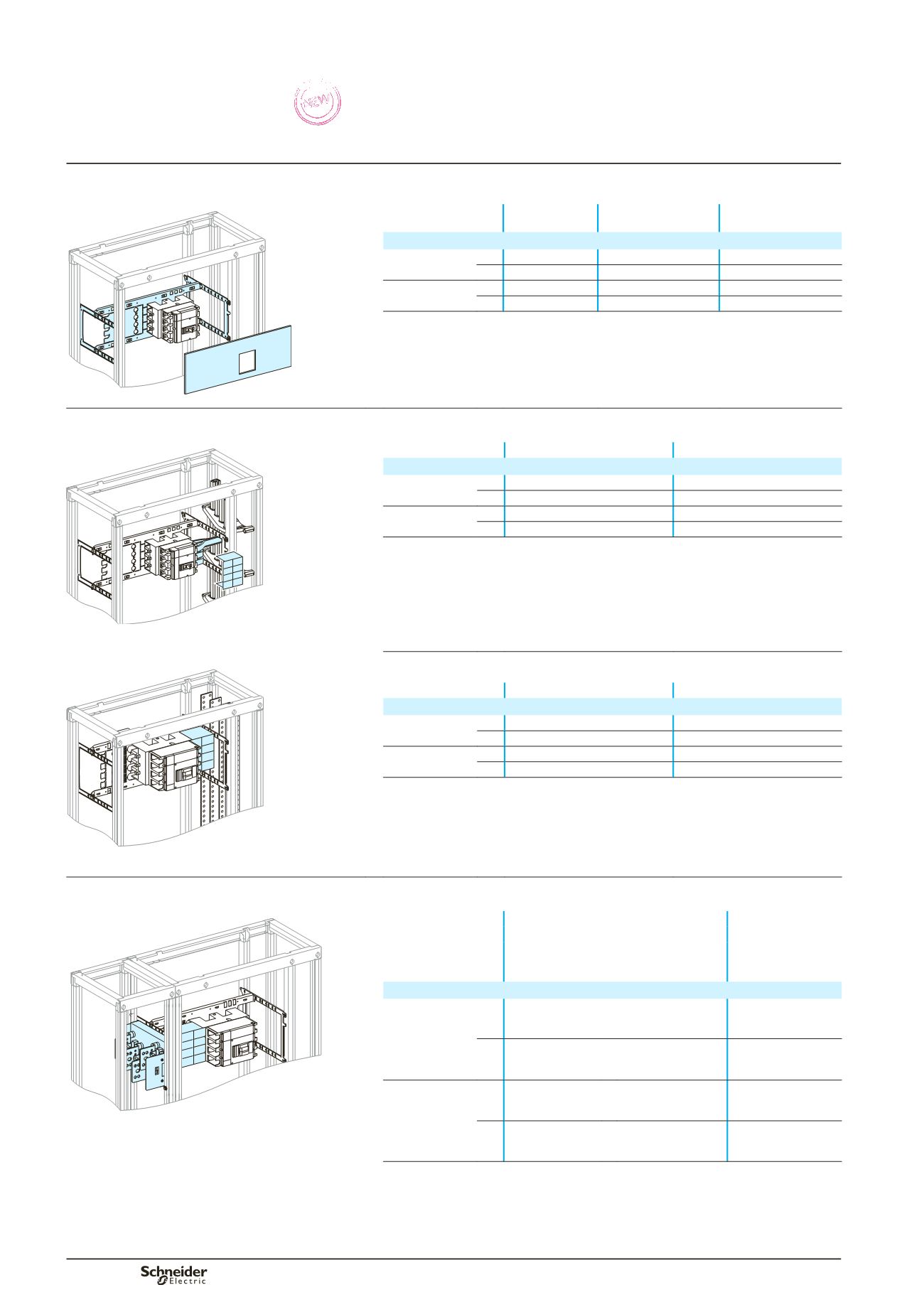

A-24
Functional units
Installation
DD383869
Device
No. of vertical
modules
Mounting plate
Cut-out front plate
Plug-in Compact NSX and Vigicompact NSX
NSX100/250
3P 3
03413
03604
4P 4
03414
03606
NSX400/630
3P 4
03453
03643
4P 5
03454
03644
Busbar connection
Linergy busbars
Dd383556
Device
Prefabricated connection
Adaptator + terminal shields
Plug-in Compact NSX and Vigicompact NS X
NSX100/250
3P
04431
LV429306 + LV429517
4P
04432
LV429307 + LV429518
NSX400/630
3P
04461
LV432584 + LV432593
4P
04462
LV432585 + LV432594
Prefabricated connection + terminal shields.
Dd383557
Flat busbars
Device
Connection
Adaptator + terminal shields
Plug-in Compact NSX and Vigicompact NSX
NSX100/250
3P
must be made
LV429306 + LV429517
4P
must be made
LV429307 + LV429518
NSX400/630
3P
must be made
LV432584 + LV432591
4P
must be made
LV432585 + LV432592
Selection of flexible bars for the connection: see page B-54.
Terminal shields.
Connection
Dd383558
Front connection
Rear connection
Device
Adaptator + long
terminal shields
or transfer assembly
(w/o connection) +
adaptator +
long terminal shields
Long insulated
terminals
Plug-in Compact NSX and Vigicompact NSX
NSX100/250
3P
LV429306 +
LV429517
04429
+ LV429306
+ LV429517
LV429276
(1)
+ 2 x
LV429235 + LV429236
+ LV429306
4P
LV429307 +
LV429518
04430
+ LV429307
+ LV429518
LV429277
(1)
+ 2 x
LV429235 + 2 x
LV429236 + LV429307
NSX400/630
3P
LV432584 +
LV432593
04459
+ LV432584
+ LV432593
LV432526
(1)
+ 2 x
LV432475 + LV432476
+ LV432584
Transfer assembly (w/o connection) + long terminal shields.
4P
LV432585 +
LV432594
04460
+ LV432585
+ LV432594
LV432527
(1)
+ 2 x
LV432475 + 2 x
LV432476 + LV432585
(1)
Protection of terminals is ensured by Form 4 partitioning: see page B-32.
H
Compact NSX100 to NSX630
Horizontal
Toggle
Plug-in
Circuit breakers
