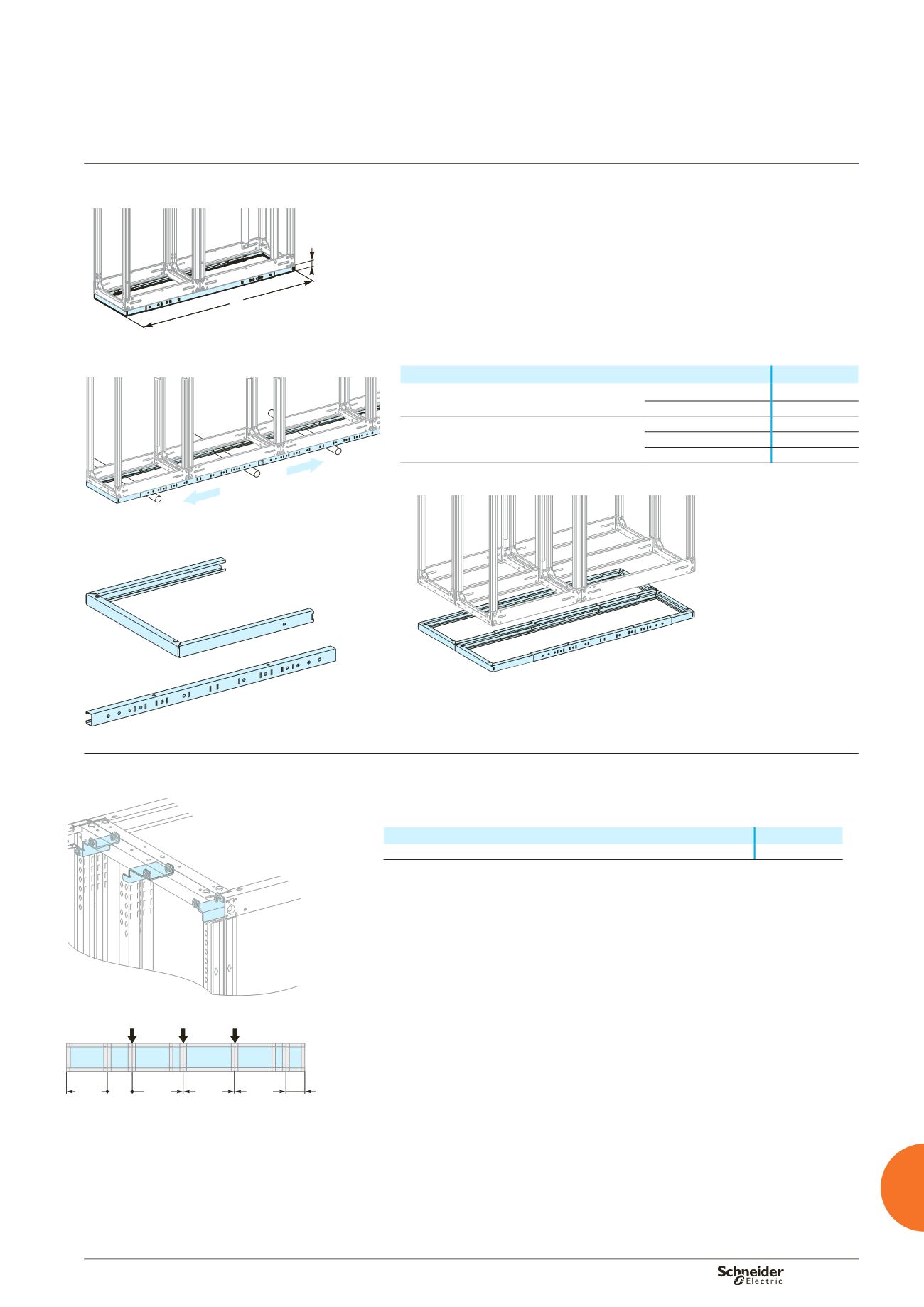

Cubicle handling and rolling
base
Lifting reinforcement kit for
combined cubicles
Additional informations
Lifting reinforcement kit
Kit 08722 is recommended for lifting combined cubicles and can be used together
with handling base end-pieces 08714 for severe transport or handling conditions.
Catalogue number 08722 includes 3 reinforcement brackets for 400 or 600 mm
deep cubicles and the corresponding mounting hardware.
b
DD383838
Designation
Cat. no.
Lifting reinforcement kit for combined cubicles W = 400/600 mm
08722
DD383839
08722
08722
08722
300
650 400
800
800
800
A lifting reinforcement kit should be installed every 800 mm.
50 mm high base
This type of base is designed to increase the rigidity of cubicle frameworks to avoid
any risk of deformation during transport and handling.
Five different catalogue numbers offer 27 width possibilities (1200 to 3050 mm) for
400 and 600 mm deep cubicles.
Two catalogue numbers each include 2 end-pieces for handling bases for 400 and
600 mm deep cubicles respectively and the corresponding mounting hardware.
Three catalogue numbers each include 2 lengths for the sides of handling bases
for 1200 to 3050 mm wide cubicles respectively and the corresponding mounting
hardware.
Handling bases can be used for both side-by-side and back-to-back cubicle
combinations.
In this case, the mounting hardware for one of the sets is used.
b
b
DD383845
L
50
08714 + 08705.
DD383849
Designation
Cat. no.
2 cubicle handling base end-pieces
D = 400 mm
08714
D = 600 mm
08716
2 cubicle handling base side-lengths
W = 1200 to 1900 mm
08705
W = 2000 to 2550 mm
08706
W = 2650 to 3050 mm
08707
DD383840
Combined cubicles equipped with a handling base can be
moved easily and safely on rollers.
DD380652
08716
08705
Side-by-side and back-to-back combination of 4 cubicles equipped with a
handling base.
