Handling on the site
Additional informations
DD381541

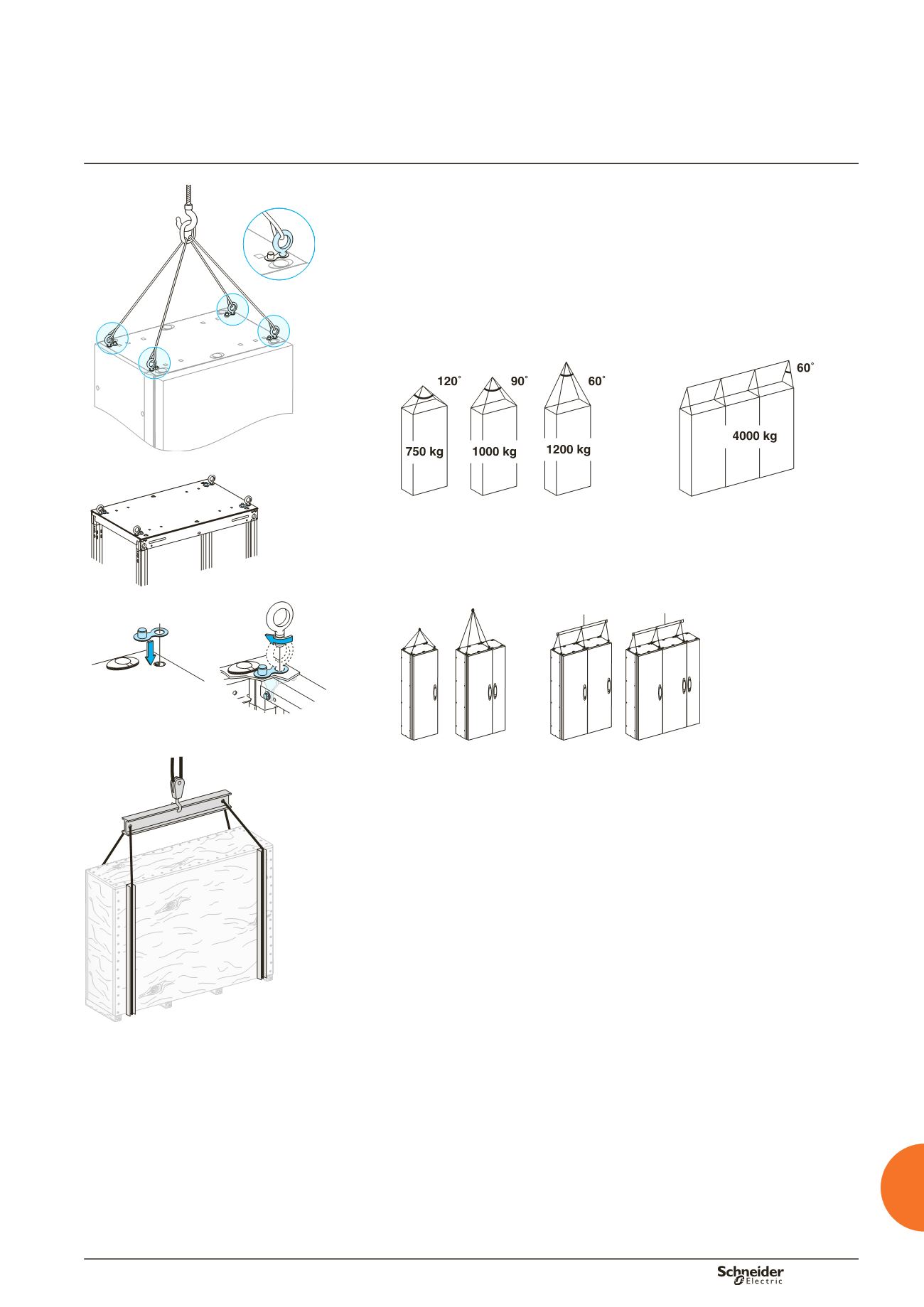

Handling by the top
If cranes or overhead hoists are used, only slings that are sufficiently strong
and in good condition should be used.
The slings must be attached to the 4 cubicle lifting lugs.
Adjust the length of the slings according to the switchboard dimensions so that the
angle formed does not exceed the angle indicated below depending on the
switchboard weight. When 2 switchgear cubicles are combined, a lifting beam must
be used.
Never tilt the cubicle during handling.
Take care to equally distribute the load on the 4 rings.
b
b
b
b
DD383915
DD210574
Position of lifting rings
The lifting rings can be installed and removed without dismantling the roof. Even with
the lifting rings permanently installed, the switchboard retains its original degree of
protection.
For combined cubicles, only install lifting rings on cubicles with switchgear.
DD383379
DD383916
Lifting several cubicles packed together
In the special case of an assembly with more than 2 cubicles, you must:
first of all move the assembly in its original packing as close as poss ble to where
it is to be installed
use a lifting beam and slings to support the switchboard from underneath.
b
b
