Monitor electrical network
status
Installation
Simple wiring makes for fast and easy installation of
the supervision system in the switchboard.
Schneider Electric provides all the tools required to
produce intelligent switchboards while maintaining the
criteria that make Prisma Plus stand out, i.e. safety,
quality and simplicity.
DD384064
DD384059
Masterpact
NW 2500A
EGX
100
NSX
630A
NSX
630A
NSX
630A
NSX
630A
ULP network
Modbus network
IFM
FDM
121
FDM
121
FDM
121
FDM
121
PM
800
Tesys U
Tesys U
Ethernet

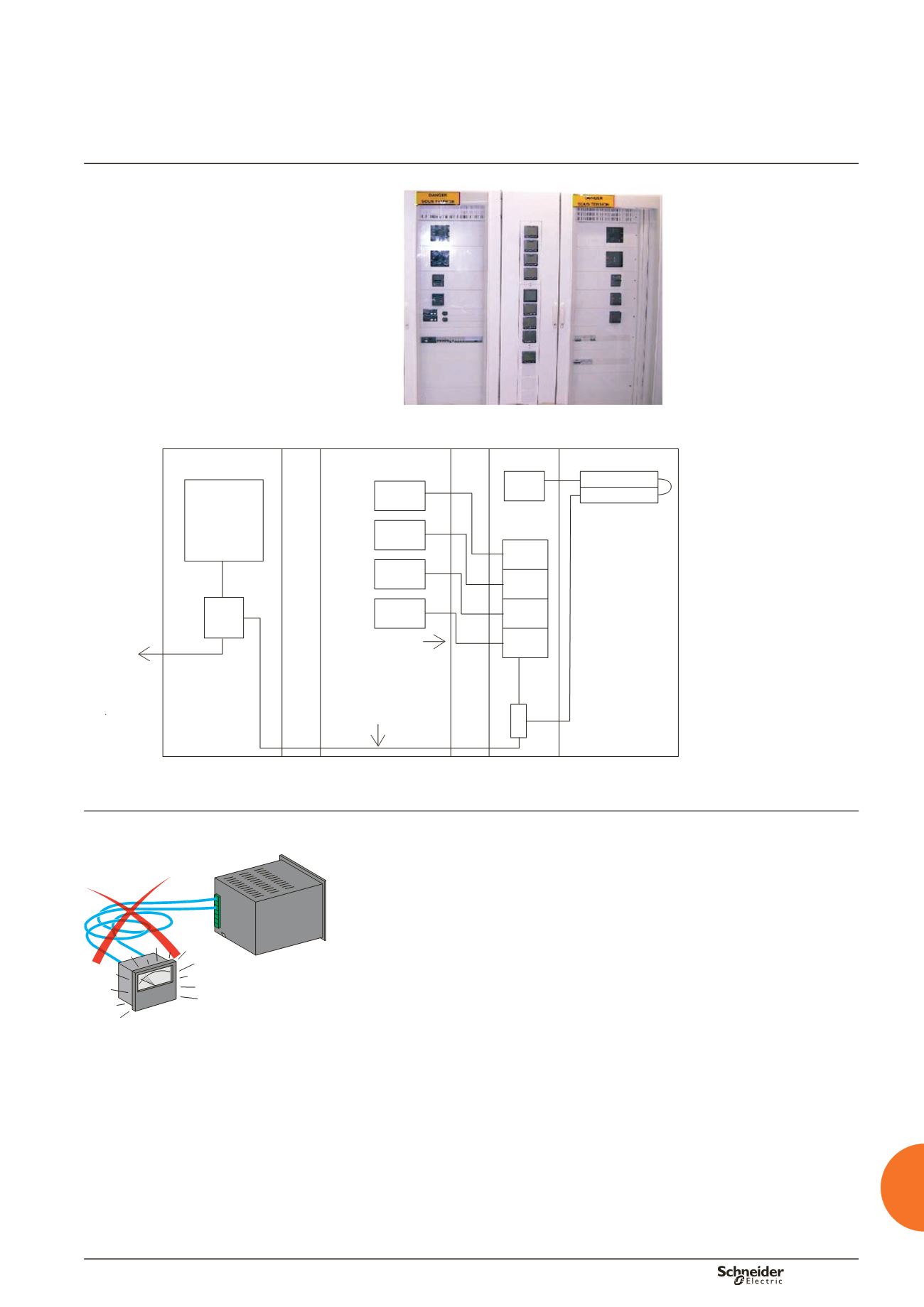

Example of a communication network in a switchboard combining power distribution and motor control.
Wiring rules
Some care is required in setting up a communicating circuit in a switchboard.
The cables must be as short as possible to avoid loops that cause stray currents
generated by magnetic fields.
For more information on wiring rules, please see the installation guide.
