D-21

Busbars

The maximum load current for a set of busbars is a function of the thermal

environment.

The type and the size of the conductors must be determined in view of carrying the

required currents taking into account the temperatures reached in the switchboard.

These conductors are subjected to additional heat rise caused by the flowing current

(joule effect) and the connected devices.

The temperatures reached by the conductors and the insulating materials, etc. must

not exceed the maximum temperatures for which the products were designed.

Merlin Gerin busbars and distribution blocks are sized to operate without any

particular constraints for the assemblies in Prisma Plus switchboards operating

under normal environmental conditions (standard switchboard configuration, 35 °C

outside the switchboard, etc.).

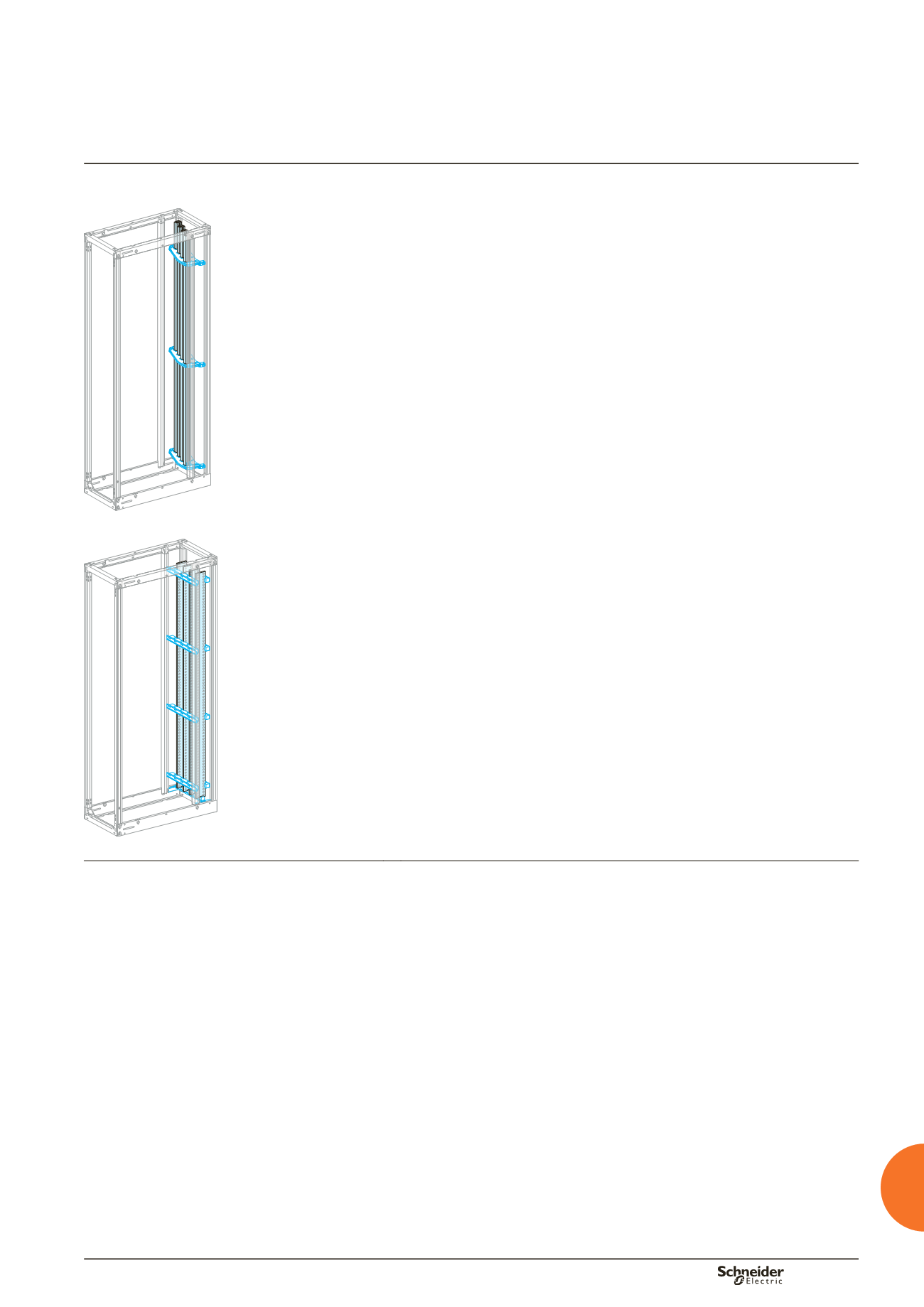

DD381459

To determine the

Linergy busbars

required, see the tables on page D-24

.

They can be used to determine:

the type of Linergy busbars, as a function of:

the current

the IP value

the ambient temperature around the switchboard.

Linergy

busbars:

I

y

1600 A.

Double Linergy

busbars:

1600 A

<

I

y

3200 A.

b

v

v

v

DD381460

To determine the required

flat busbars

, see the tables on page D-23 (horizontal

busbars) and on page D-25 (vertical busbars)

They can be used to determine:

the permissible current as a function of:

the size of the busbars

the number of bars

the ambient temperature around the switchboard

the IP value.

Flat copper busbars

5 mm thick: I

y

1600 A.

Flat copper busbars

10 mm thick: I

y

3200 A.

b

v

v

v

v

Connection of devices

u

630 and

busbar connections

To determine the

size of upstream and downstream connections

for devices, see

the tables starting on page D-27.

They can be used to determine:

the size of copper busbars

the maximum permissible current.

As a function of:

the type of circuit breaker

the IP value

the ambient temperature around the switchboard

the type of installation.

b

b

b

b

b

b
