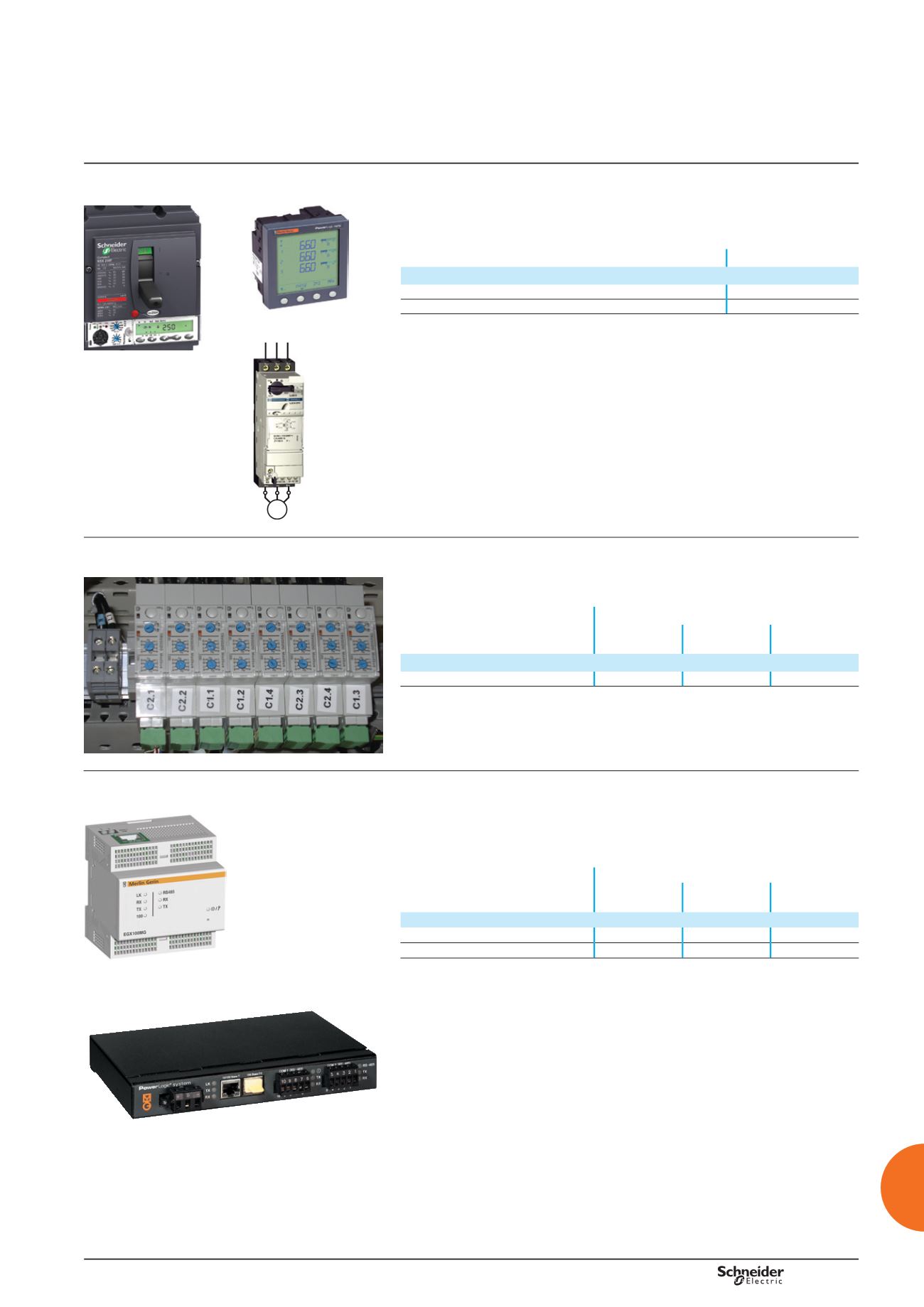

Monitor electrical network
status
Power monitoring solutions
Communicating devices
Intelligent functional units (e.g. Masterpact, Compact NSX) in the switchboard can
provide power monitoring functions without any additional installation requirements.
Prisma Plus is perfectly suited in terms of device layout, installation on mounting
plates, use of specially designed front plates, etc.
PB103208-33
PB100708-20
Device
Installation
Designation
Masterpact
See page A-5
Compact NSX
-
PM710.
DB107849
M
3
a
Other intelligent functional units from the motor control range such as TeSys U are
also very easy to install and set up.
Note:
for more information, see pages 212-213 in the catalogue and the catalogue Contrôle
Commande Moteur
Modbus interface module
Compact NSX devices require a Modbus interface module for data transmission.
The devices are installed on a stacking accessory that can be clip-mounted on a
modular rail.
DD384065
Device
Installation
No. of vertical
modules
Modular rail
Modular front
plate
Designation
Modbus interface Module
4
03401
03805
Note:
Modbus interface modules are set up either manually or using RSU software (see the ULP
guide).
Communication gateway
For remote operation, the Prisma Plus intelligent-switchboard offers two
communication gateways, the EGX100 and 400. The EGX400 is also a web server
with a 16 MB memory.
They transmit data over Ethernet networks and can be easily installed in the
switchboard on a modular rail.
DB107851-33
Device
Installation
No. of vertical
modules
Modular rail
Modular front
plate
Designation
EGX100
4
03401
03805
EGX400
8
03401
03807
EGX100.
PB100704-68
EGX400.
