20 Moulded Case Breakers 0115
ABB Low Voltage

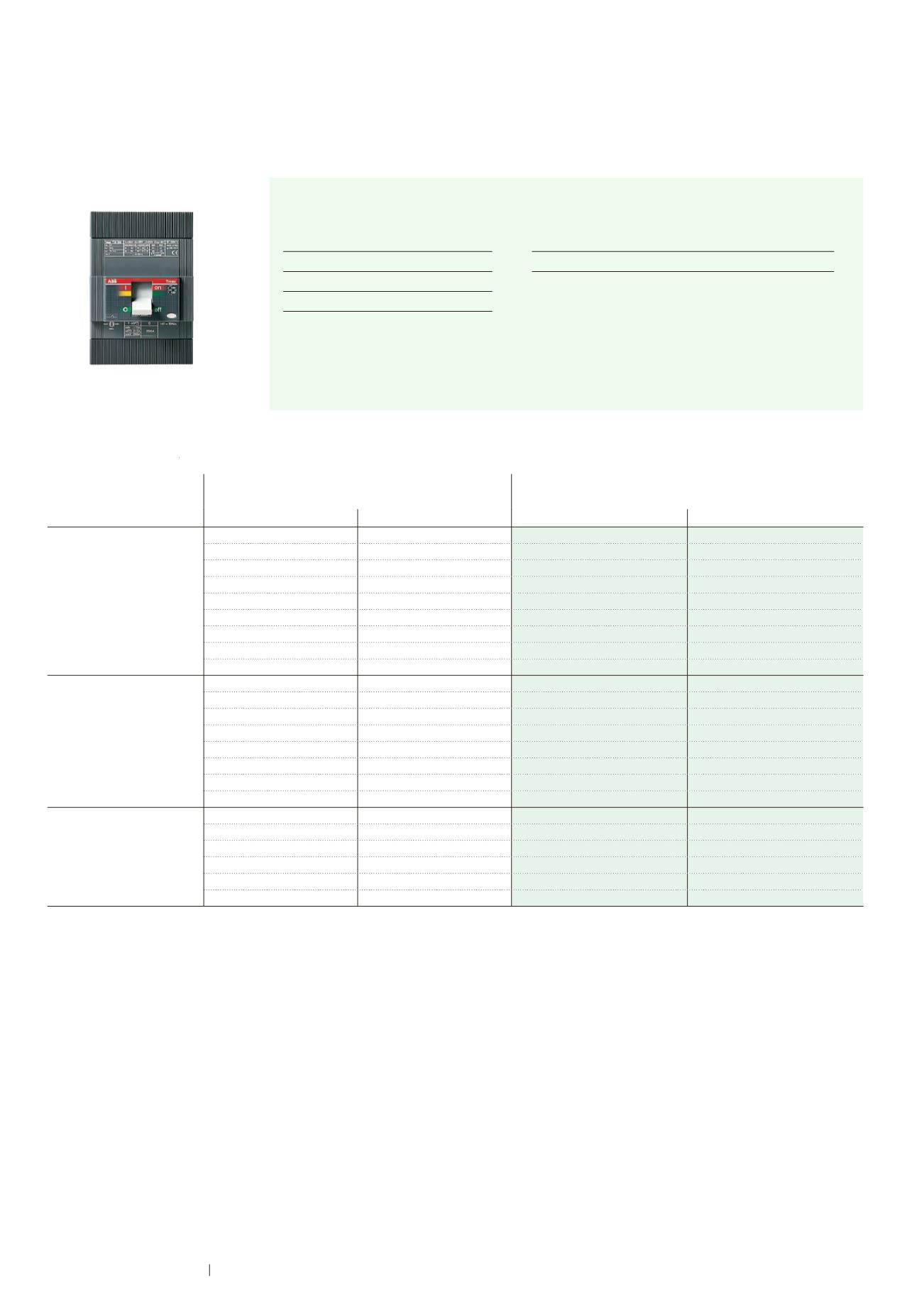

Fixed Pattern Circuit Breaker
Supplied as standard with front bar terminals for busbar - for other terminals see
accessories section
Ratings @ 400V
Icu
Ics
XT1C
25kA
100%
XT1N
36kA
75%
XT1S
50kA
75%
Protection types available
Settings
Type
Ith
Im
Standard Distribution (3&4 pole)
70-100%
Model
Current [A]
Product Hierarchy 3000009
Order Code
Ith/In
I3
3 Pole
4 Pole
XT1C
XT1C160R25
450A
1SDA067391R1
1SDA067400R1
XT1C160R32
450A
1SDA067392R1
1SDA067401R1
XT1C160R40
450A
1SDA067393R1
1SDA067402R1
XT1C160R50
500A
1SDA067394R1
1SDA067403R1
XT1C160R63
630A
1SDA067395R1
1SDA067404R1
XT1C160R80
800A
1SDA067396R1
1SDA067405R1
XT1C160R100
1000A
1SDA067397R1
1SDA067410R1
XT1C160R125
1250A
1SDA067398R1
1SDA067409R1
XT1C160R160
1600A
1SDA067399R1
1SDA067641R1
XT1N
XT1N160R32
450A
1SDA067411R1
1SDA067419R1
XT1N160R40
450A
1SDA067412R1
1SDA067647R1
XT1N160R50
500A
1SDA067413R1
1SDA067421R1
XT1N160R63
630A
1SDA067414R1
1SDA067422R1
XT1N160R80
800A
1SDA067415R1
1SDA067423R1
XT1N160R100
1000A
1SDA067416R1
1SDA067424R1
XT1N160R125
1250A
1SDA067417R1
1SDA067427R1
XT1N160R160
1600A
1SDA067418R1
1SDA067428R1
XT1S
XT1S160R50
500A
1SDA067431R1
1SDA067439R1
XT1S160R63
630A
1SDA067432R1
1SDA067440R1
XT1S160R80
800A
1SDA067433R1
1SDA067441R1
XT1S160R100
1000A
1SDA067434R1
1SDA067442R1
XT1S160R125
1250A
1SDA067435R1
1SDA067445R1
XT1S160R160
1600A
1SDA067436R1
1SDA067446R1
