PVC-U perimeter trunking systems
PVC-U PERIMETER TRUNKING SYSTEMS
148 |
XL Trunking 211 to 213

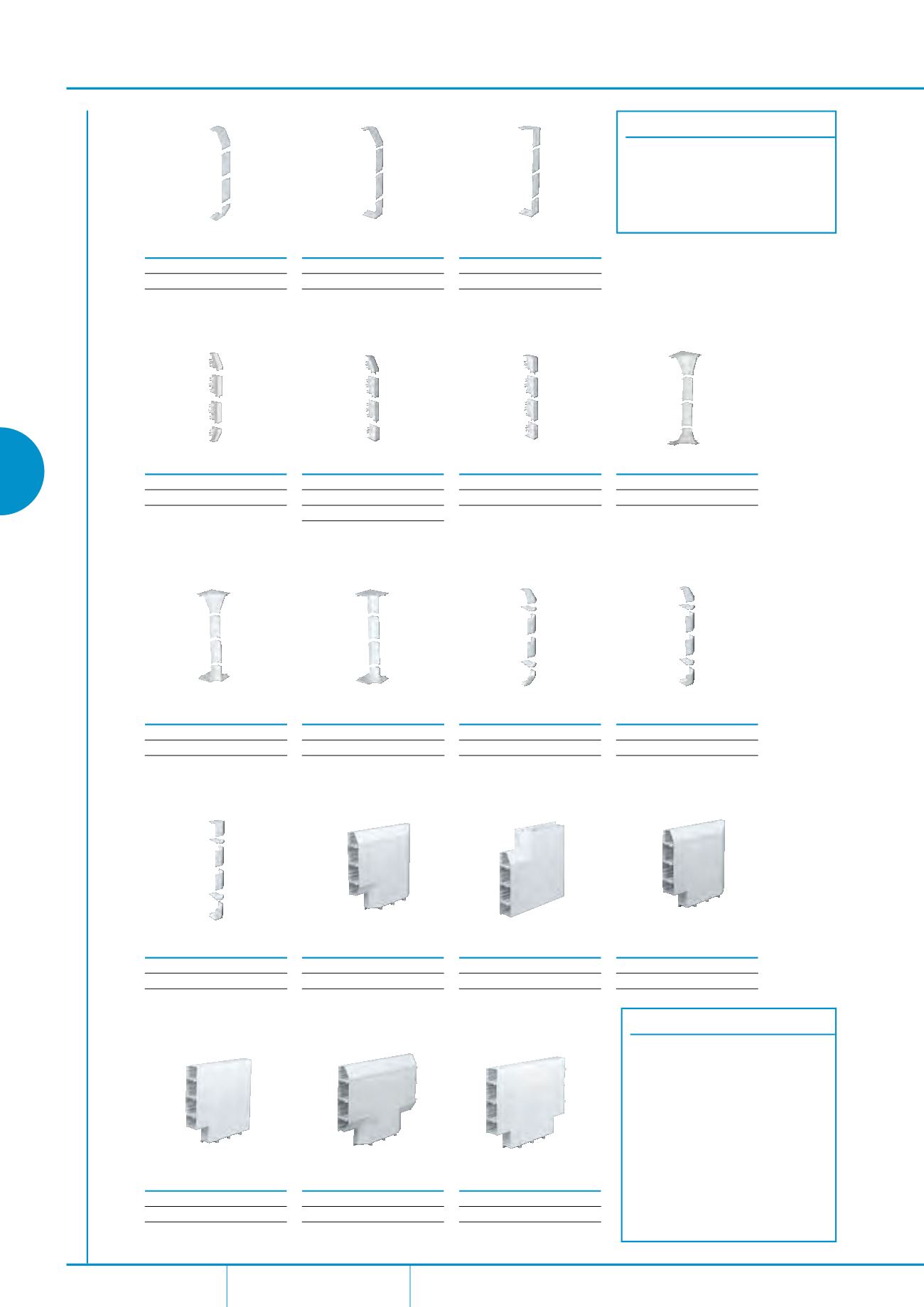

Fittings
XL 211 – Coupler
code
pack
EC201WH
plus
ELLCC200WH
5
XL 213 – Coupler
code
pack
EC203WH
plus
ELLCC200WH
5
XL 212 – Coupler
code
pack
EC202WH
plus
ELLCC200WH
5
XL 211 – End cap
code
pack
EEC201WH
plus
ELLEC200WH
5
Universal for both LH & RH
XL 213 – End cap
code
pack
EEC203WH
plus
ELLEC200WH
5
Universal for both LH & RH
XL 212 – End cap
code
pack
EEC202LHWH
(Left hand)
5
EEC202RHWH
(Right hand)
5
plus
ELLEC200WH
XL 211– Internal bend
code
pack
EIB201WH
plus
ELLIB200WH
5
XL 212 – Internal bend
code
pack
EIB202WH
plus
ELLIB200WH
5
XL 213 – Internal bend
code
pack
EIB203WH
plus
ELLIB200WH
5
XL 211 – External bend
code
pack
EXB201WH
plus
ESLEB200WH
5
XL 213 – External bend
code
pack
EXB203WH
plus
ESLEB200WH
5
XL 212 – External bend
code
pack
EXB202WH
plus
ESLEB200WH
5
XL 213 Flat angle – up/down
code
pack
EFA213WH
1
XL 211 Flat angle – up/down
code
pack
EFA211WH
1
XL 212 Flat angle – upward
code
pack
EFA212UWH
1
XL 212 Flat angle – downward
code
pack
EFA212DWH
1
4-compartment fittings
When ordering couplers, end caps or
bends for 4-compartment systems, you
must request both component parts
i.e. XL211 Coupler = EC201WH
PLUS
ELLCC200WH.
† XL 212 trunking flat tees
Where profles have one angled cover
and one square cover, as with XL 212, it
is possible to create a tee by changing
the top or bottom cover to match the
profle of the trunking.
For example:
• Upward tee – select XL 211 tee
remove the angled bottom cover and
replace with square cover.
• Downward tee – select XL 213 tee
remove the square top cover and
replace with angled cover.
Flat tee XL 211 – up/down
code
pack
EFT211WH
1
Flat tee XL 213 – up/down
code
pack
EFT213WH
1
