PVC-U perimeter trunking systems
PVC-U PERIMETER TRUNKING SYSTEMS

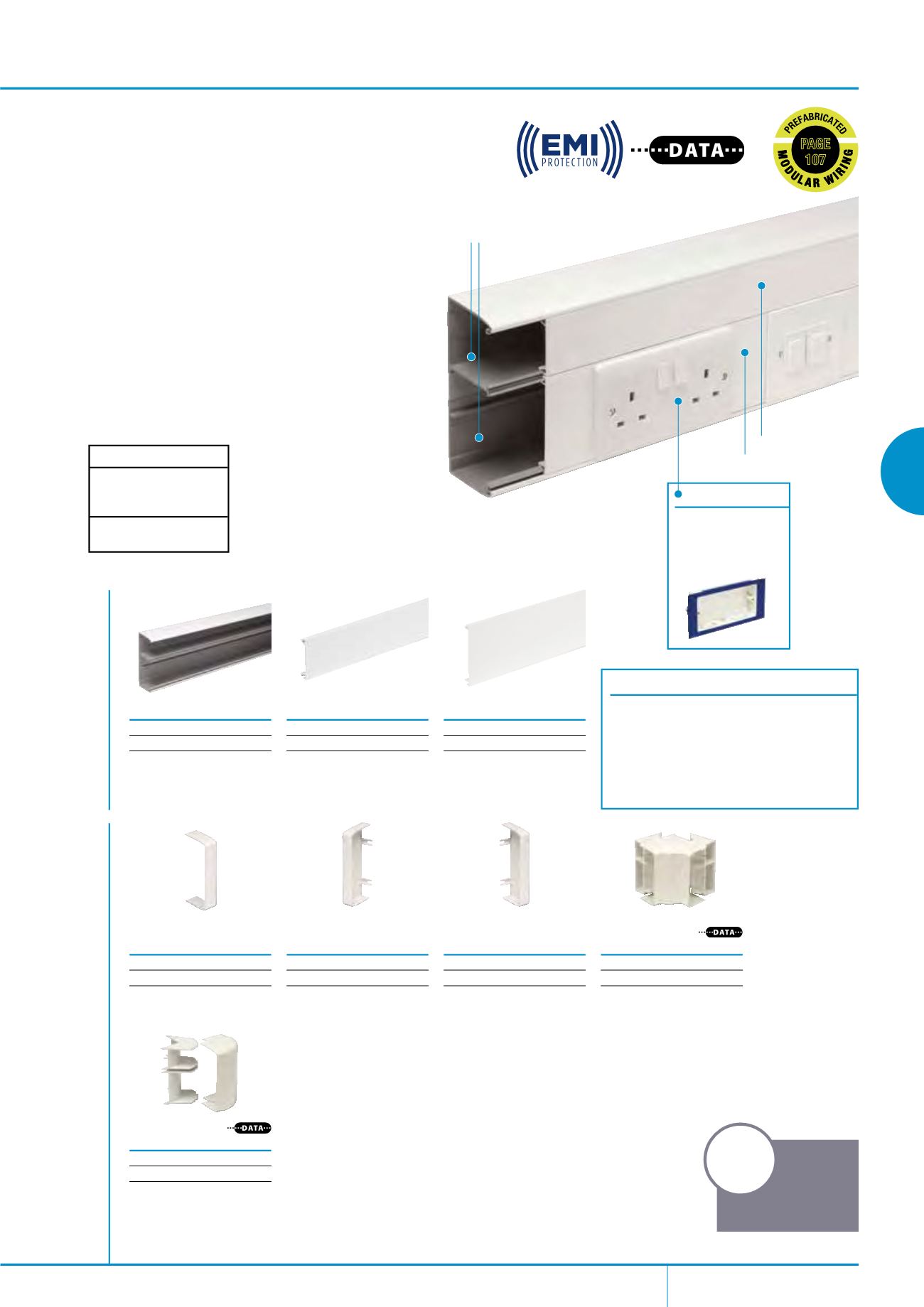

Twin165 trunking | 151
Twin165 fittings
Compartment 1 is the smaller compartment.
Compartment 2 is the larger compartment.
When ordering end caps, flat angles and
tees, please take care to ascertain which
compartment is to be installed uppermost to
ensure you receive the correct fttings.
PAGE
107
Twin165 trunking is a mid-size, two-compartment
system, designed as a compact variation of Twin
Plus. Twin165 offers high capacity for Cat 6 and
Cat 6a data cabling for specification in commercial,
industrial and educational environments.
Product information
• 160 x 65mm
• 2 compartment trunking with 60/40 split
• Separate cover access to each compartment
• Suitable for dado application
• Adjustable bends allow between 85° and 95°
to accommodate building tolerances
Data information
• Standard bend radius 25mm
• Data fttings available for bend radius up to 50mm
• Adjustable data box 32-47mm
• Steel screening divider
Compartment 2
Compartment 1
Two separate covers
Basic components
Fittings
Base Unit
code depth pack
AY1120WH 65mm 4 x 3m
Cover small (Comp 1)
code pack
AY1130WH 8 x 3m
Cover large (Comp 2)
code pack
ETL1WH 8 x 3m
Coupler
code depth pack
AY1210WH 65mm 1
External bend
adjustable
code depth pack
AY1250WH 65mm 1
Internal bend
adjustable
code depth pack
AY1240WH 65mm 1
End cap LH (Comp 1 top)
End Cap RH (Comp 2 top)
code depth pack
AY1220WH 65mm 1
End cap RH (Comp 1 top)
End Cap LH (Comp 2 top)
code depth pack
AY1230WH 65mm 1
Part M
For boxes that meet the
requirements of Part M
(DDA) please refer to
page 106 of this section.
Standard colour
WH
WH: White
p282
