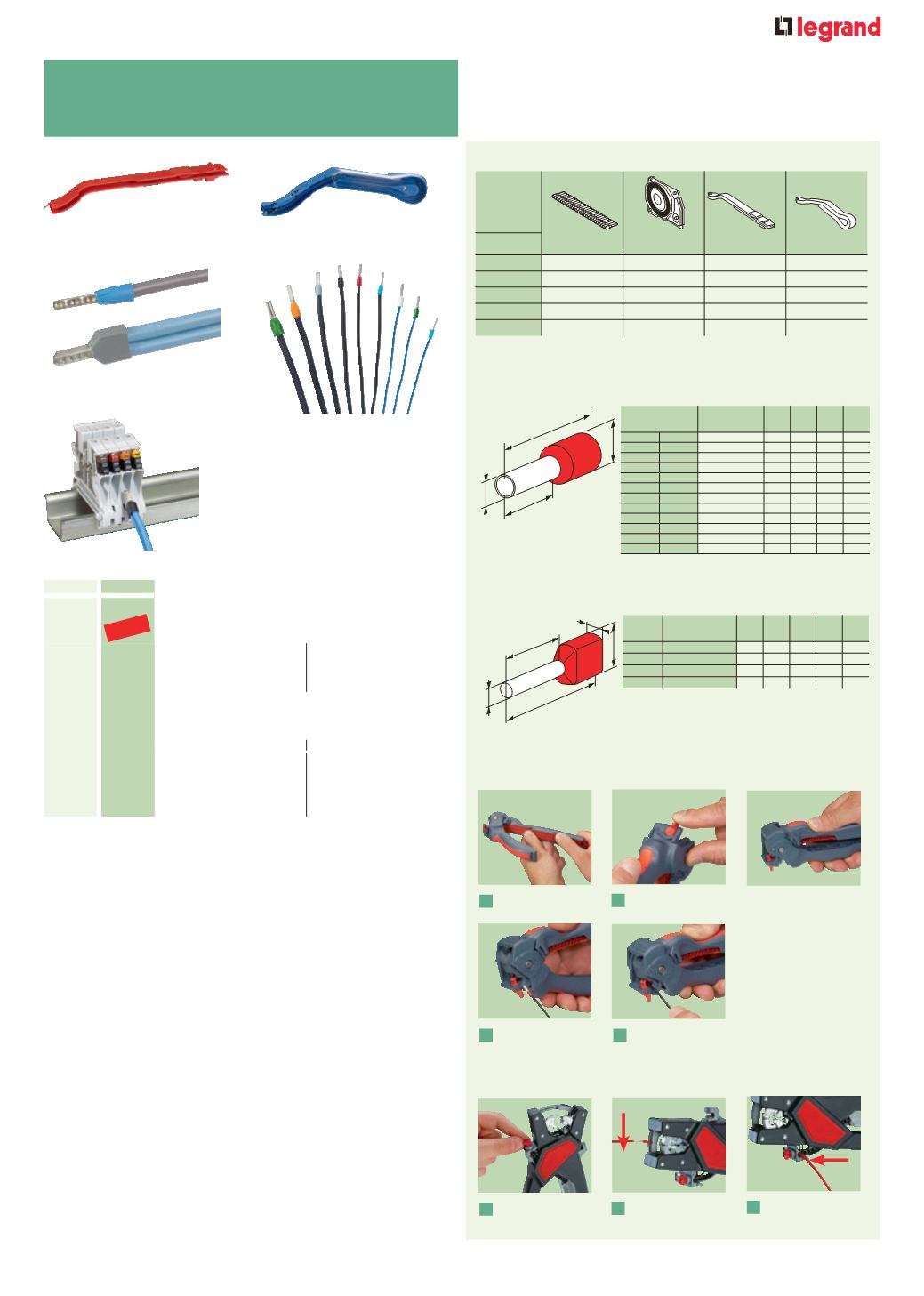

Starfix applicators
For Starfix crimping tool
For dispensing strips of ferrules in Starfix crimping
tools Cat. Nos. 0376 08/09/10/97
For ferrules cross-section (mm²)
Colour
10
0376 46
0 . 25 and 0 . 34
yellow
10
0376 47
0 . 5 to 2 . 5
red
10
0376 48
4 and 6
orange
For Starfix S multi-purpose crimping tool
For dispensing colour-coded strips of ferrules
Removable transparent cover
For ferrules cross-section (mm²)
Colour
5
0376 80
0 . 5
white
5
0376 81
0 . 75
(1)
blue
5
0376 82
1
(1)
red
5
0376 83
1 . 5
black
5
0376 84
2 . 5
grey
Starfix
®
applicators
Starfix
®
applicators
0376 47
B
D
A
C
E
Double ferrules
■
Correspondance table
B
D
A
C
■
Starfix usage example
■
Starfix S usage example
Starfix S tool
Example of single/double ferrules
on cables
Adjust the
cross-section
1
Fit the applicator
1
Insert the cable
3
Crimp
4
Strip and twist
2
Adjust
2
Crimp
3
The 2 material handle
gives an excellent grip
■
Dimensions (mm)
Single ferrules
Cat. Nos.
Cross-section
(mm
2
)
A B C D
0376 50
0 . 25
8 14 . 5 1 . 1 3
0376 60
0 . 34
8 14 . 5 1 . 1 3
0376 61 0376 41
0 . 5
8 14 . 5 1 . 5 3 . 4
0376 62 0376 42
0 . 75
8 14 . 5 1 . 5 3 . 4
0376 63 0376 43
1
8 14 . 5 1 . 7 3 . 6
0376 64 0376 44
1 . 5
8 14 . 5 2 4 . 1
0376 66 0376 45
2 . 5
8 14 . 5 2 . 6 4 . 8
0376 67
4
12 21 3 . 2 5 . 7
0376 68
6
12 23 3 . 9 7 . 2
0376 69
10
12 21 4 . 9 8 . 1
0376 70
16
18 29 6 . 3 9 . 8
0376 71
25
18 31 7 . 9 12
Cat.
Nos.
Cross-section
(mm
2
)
A B C D E
0376 87 2 x 0 . 75
8 15 2 . 1 6 3 . 3
0376 88
2 x 1
8 15 2 . 35 6 4
0376 89 2 x 1 . 5
8 16 2 . 6 7 . 2 4 . 2
0376 90 2 x 2 . 5
10 18 . 5 3 . 3 8 . 4 4 . 8
Example of different cables
and ferrules
NEW
Cross-section
(mm
2
)
Single ferrule
Large capacity
ferrule - refills Starfix applicator
Starfix S
applicator
Ferrule
0 . 5
0376 61
0376 41
0376 47
0376 80
0 . 75
0376 62
0376 42
0376 47
0376 81
1
0376 63
0376 43
0376 47
0376 82
1 . 5
0376 64
0376 44
0376 47
0376 83
2 . 5
0376 66
0376 45
0376 47
0376 84
0376 81
(1) If Tri-rated use one size larger applicator
