kWh Meters
Three Phase
Description
Energy meters are used to
measure the active energy
consumed by an installation.
They allow the user to
understand and control the real
cost of an installation and to
divide the consumption between
the different appliances.
MID approval for sub billing on
EC364M.
Characteristics
• Fully compliant with
the European standard
EN 50470-3
• Class B
• Accuracy 1%
• Energy readout: 7 digits
• Backlit display
• Indication of instantaneous
power consumption
• Total / partial counter
(expected MID references)
• Pulsed output
• Unlimited saving of
measurements
• LED flashes according to
consumption
• Option: tariff 1/ tariff 2
• Three phase energy meters are
adapted to all kind of networks
• Display indication in case of
incorrect wiring
1 Mod = 17.5mm
2 Mod = 35mm
3 Mod = 52.5mm
4 Mod = 70mm
7 Mod = 122.5mm
Note:
Use of heat dissipation inserts
(cat ref. LZ060) are
recommended on each side of
direct connection meters.
Three Phase kWh Meters - Direct 63A
Voltage 230/400V~ 50/60Hz
Starting current = 40mA
Base current = 10A
Max current = 63A
Max cable size = 16mm
Characteristics
Width
Cat ref.
Energy meter with pulsed output and total / partial counter
4 Mod
EC350
Energy meter with pulsed output - total / partial counter and 2 tariffs
4 Mod
EC352
Three Phase kWh Meters - Direct 100A
Voltage 230/400V~ 50/60Hz
Starting current = 80mA
Base current = 20A
Max current = 100A
Max cable size = 35mm
Characteristics
Width
Cat ref.
Energy meter with pulsed output and total / partial counter
7 Mod
EC360
Energy meter with pulsed output - total / partial counter and 2 tariffs
7 Mod
EC362
Energy meter with pulsed output - with MID approval
7 Mod
EC364M
Energy meter with bidirectional counter
7 Mod
EC365B
Energy meter with KNX output
7 Mod
TE360
Three Phase kWh Meters - Connection via Current Transformers
To be connected to CT with 5A on the secondary
Voltage 230/400V~ 50/60Hz
Starting current = 10mA
Max current on CT secondary = 6A
Characteristics
Width
Cat ref.
Energy meter with pulsed output and total / partial counter
4 Mod
EC370
Energy meter with pulsed output - total / partial counter and 2 tariffs
4 Mod
EC372
Energy meter with KNX output
4 Mod
TE370

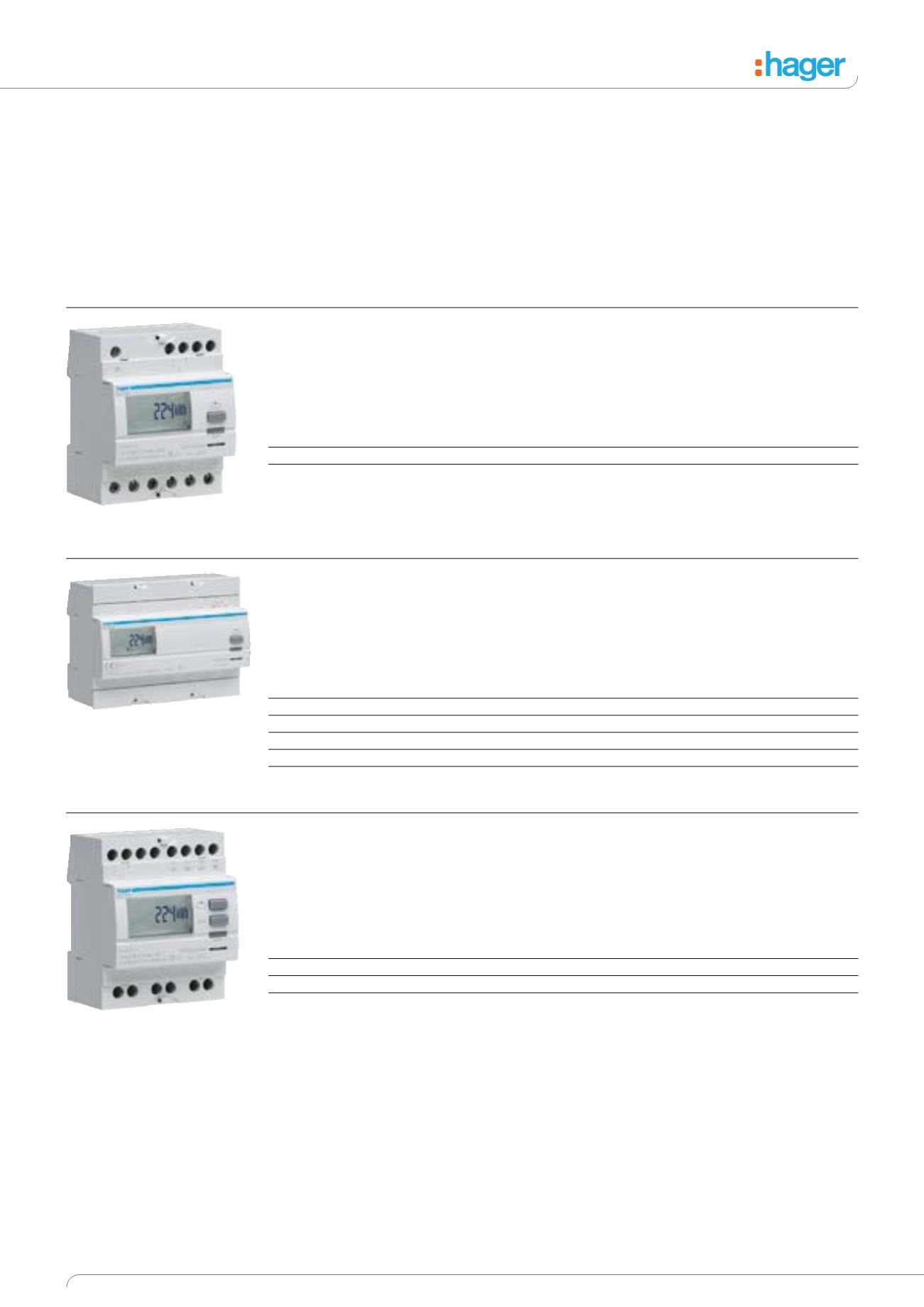

EC350
EC364M
EC370
