5.29
kWh Meters
Single Phase
Description
Energy meters are used to
measure the active energy
consumed by an installation.
They allow the user to
understand and control the real
cost of an installation and to
divide the consumption between
the different appliances.
MID approval for sub billing on
EC154M.
Characteristics
• Fully compliant with
the European standard
EN 50470-3
• Class B
• Accuracy 1%
• Energy readout: 7 digits
• Backlit display
• Indication of instantaneous
power consumption
• Total / partial counter
(expected MID references)
• Pulsed output
• Unlimited saving of
measurements
• LED flashes according to
consumption
• Option: tariff 1/ tariff 2
• Three phase energy meters are
adapted to all kind of networks
• Display indication in case of
incorrect wiring
1 Mod = 17.5mm
2 Mod = 35mm
3 Mod = 52.5mm
4 Mod = 70mm
Note:
Use of heat dissipation inserts
(cat ref. LZ060) are
recommended on each side of
direct connection meters.

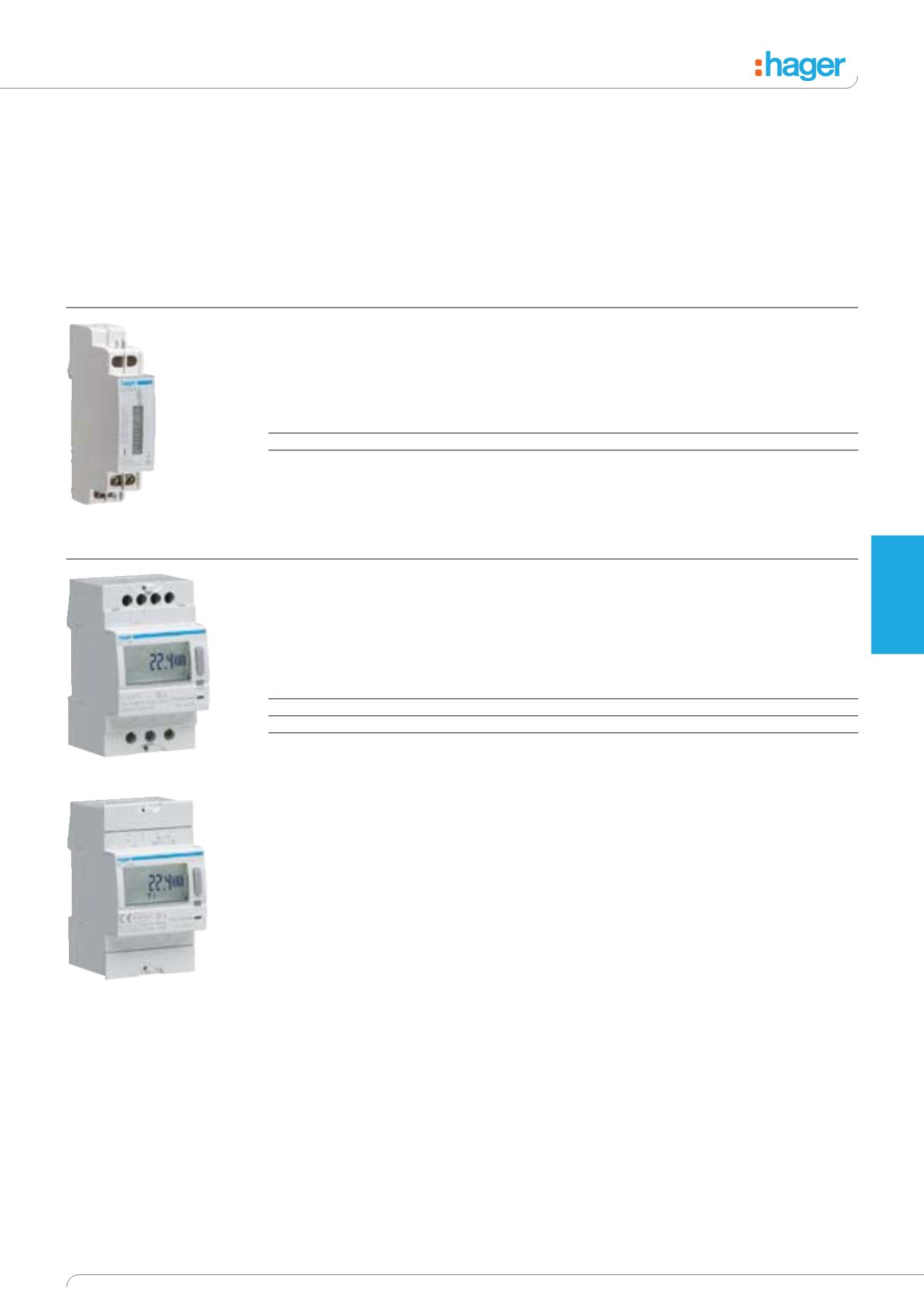

Single Phase kWh Meters
Voltage 230V~ 50Hz
Direct connection
In = 320mA - 32A
Characteristics
Width
Cat ref.
Total counter, non resettable counter
1 Mod
EC050
Total counter, non resettable counter, pulsed output 1 pulse = 100Wh
1 Mod
EC051
Single Phase kWh Meters - Direct 63A
Voltage 230V~ 50/60Hz
Starting current = 40mA
Base current = 10A
Max current = 63A
Max cable size = 16mm
Characteristics
Width
Cat ref.
Energy meter with pulsed output and total / partial counter
3 Mod
EC150
Energy meter with pulsed output - total / partial counter and 2 tariffs
3 Mod
EC152
Energy meter with pulsed output - with MID approval
3 Mod
EC154M
EC150
EC154M
EC050
Modular
Devices
