2.11

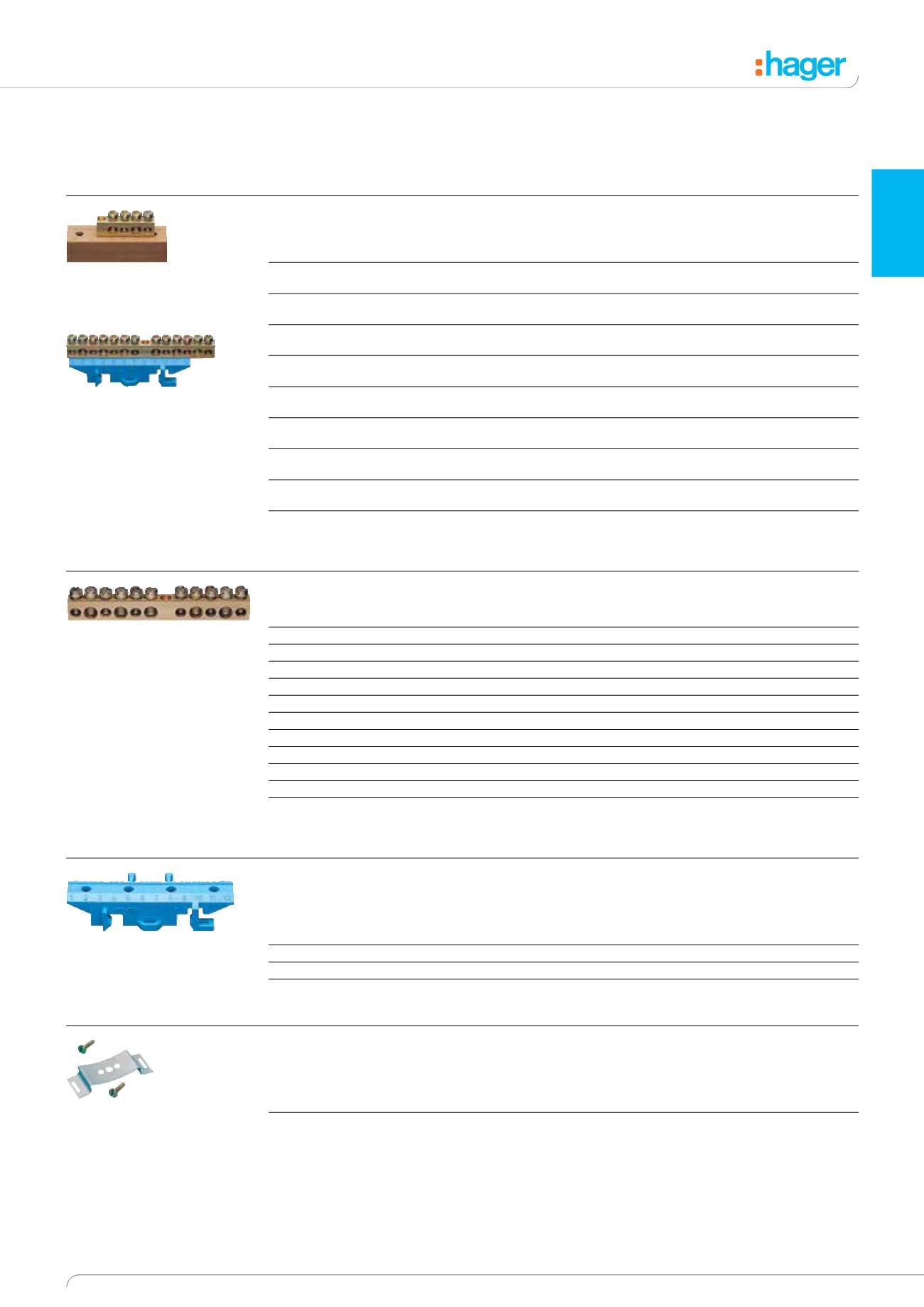

Brass Terminals ≤ 60A
Description
Brass terminals with/without
support for neutral/earth/phase
connections.
Colour Code
Neutral = Blue support
Earth = Green/Yellow support
Phase = Brown support
Insulated support can be fitted
on DIN rail with KZ060 rail clip or
flat bar 12 x 2mm.
Brass Terminals ≤ 60A With Support
Connections:
Neutral
Earth
Phase
number + section
Cat ref.
Cat ref.
Cat ref.
2 x 16 + 2 x 10mm
2
-
-
KM04L
4 Connections Length 30mm
3 x 16 + 4 x 10mm
2
KM07N
KM07E
KM07L
7 Connections Length 49mm
5 x 16 + 5 x 10mm
2
KM10D
KM10F
-
10 Connections Length 67mm
5 x 16 + 6 x 10mm
2
KM11N
KM11E
KM11L
11 Connections Length 73mm
2 x 16 (Double Drive) + 8 x 10mm
2
KM10N
KM10E
-
10 Connections Length 69mm
6 x 16 + 7 x 10mm
2
KM13N
KM13E
-
13 Connections Length 85mm
1 x 25 + 5 x 16 + 5 x 10mm
2
-
KM11B
-
11 Connections Length 85mm
1 x 25 + 8 x 16 + 8 x 10mm
2
KM17N
KM17E
-
17 Connections Length 121mm
(2 supports)
1 x 25 + 11 x 16 + 13 x 10mm
2
KM25N
KM25E
-
25 Connections Length169mm
Brass Terminals ≤ 60A Without Support
Connections: number + section
Cat ref.
2 x 16 + 2 x 10mm
2
4 Connections Length 30mm
K140
3 x 16 + 4 x 10mm
2
7 Connections Length 49mm
K142
5 x 16 + 5 x 10mm
2
10 Connections Length 67mm
K143
5 x 16 + 6 x 10mm
2
11 Connections Length 73mm
K144
2 x 16 (Double Drive) + 8 x 10mm
2
10 Connections Length 69mm
K145
6 x 16 + 7 x 10mm
2
13 Connections Length 85mm
K148
1 x 25 + 5 x 16 + 5 x 10mm
2
11 Connections Length 85mm
K151
1 x 25 + 8 x 16 + 8 x 10mm
2
17 Connections Length 121mm
K156
1 x 25 + 11 x 16 + 13 x 10mm
2
25 Connections Length169mm
K158
1 x 25 + 8 x 16 + 29 x 10mm
2
Long Length Terminals Length 242mm
K159
1 x 25 + 16 x 16 + 61 x 10mm
2
Fixing on Flat Bar
K160F
12 x 2 with Supports Length 482mm
Terminal Supports
For K140 - K160 terminals insulating material M4 x 8 fixing screws
Description
Cat ref.
Blue Support for Neutral
KZ012
Green / Yellow Support for Earth
KZ013
Beige Support
KZ014
Rail Clip
For fixing terminals on DIN Rails not for; KM04L, KM10D, KM10F, KM10N, KM10E
Description
Cat ref.
Mounts on DIN Rail Width 50mm
KZ060
KM04L
KM13N
K144
KZ012
KZ060
