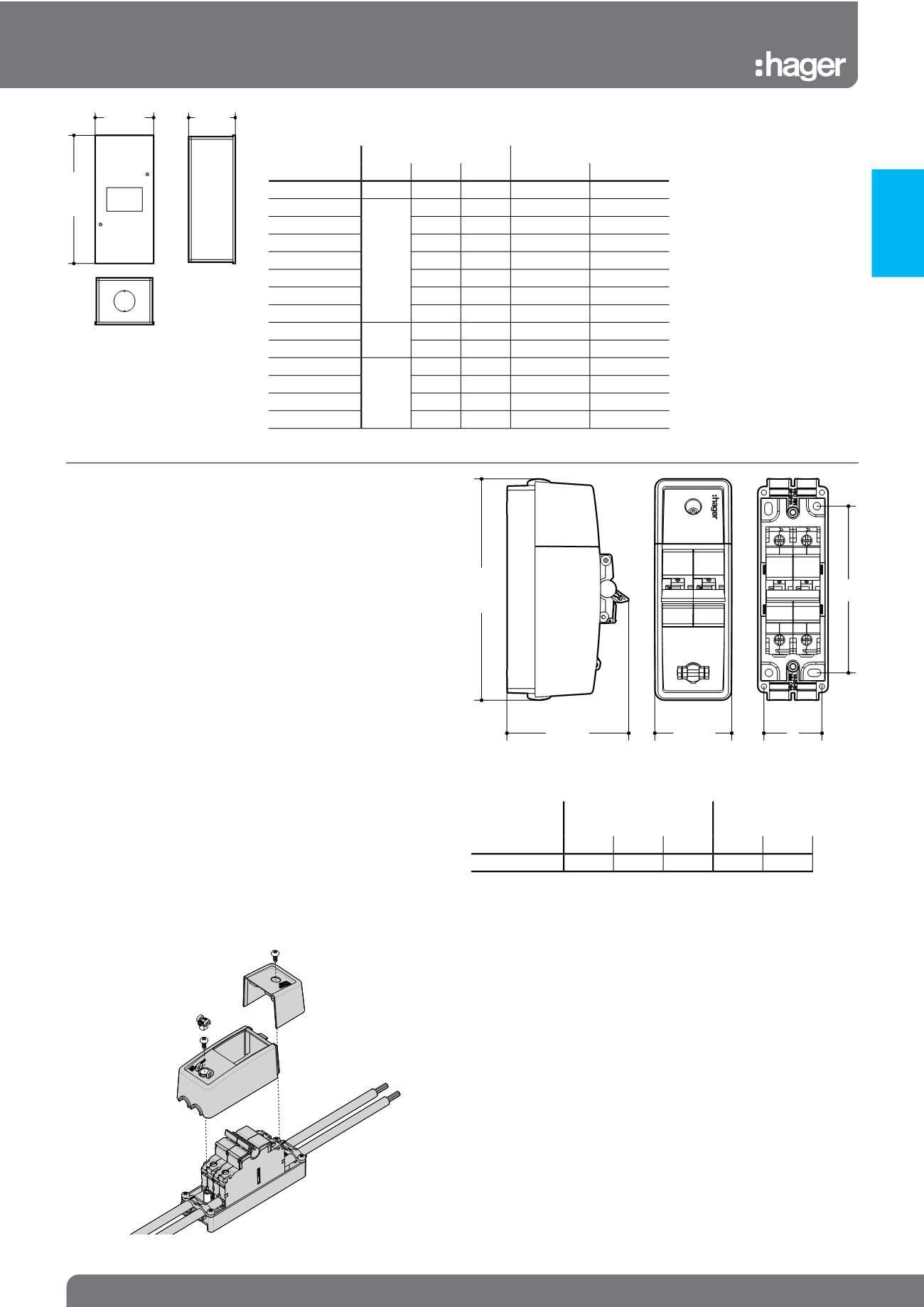

Dimensions
Enclosures & Meter Box Switch
Installation
Enclosures and Switch Fuses
Dimensions (mm)
Width Height Depth Connection Knockouts
IU41
50
152 61.5 Earth only 2 x 20mm
IU2
80
152 61.5 Earth only 2 x 20mm
IU3
152 61.5 Earth only 2 x 20mm
IU2/D
152 87.5 Earth only 2 x 20mm
IU2/GD
152 87.5 Earth only 2 x 20mm
IU3/D
152 87.5 Earth only 2 x 20mm
IU42
312 61.5 Earth only 2 x 20mm
IU42/D
312 100 Earth only 2 x 20mm
IU4
115
187 61.5 Earth only 2 x 25mm
IU4/D
187 87.5 Earth only 2 x 25mm
IU44
125
312 73.5 Earth only None
IU45
312 73.5 Earth only None
IU44/D
312 99.5 Earth only None
IU44/GD
312 99.5 Earth only None
Meter Box Switch Dimensions
Dimensions (mm)
Fixing Centres
(mm)
Width Height Depth A B
VC02SW 50
145 78.5 31
109
Meter Box Switch
VC02SW is an Enclosed Switch Disconnector suitable for Meter Box
Applications where an isolating switch between the electricity meter
and consumer unit is required.
The twin cable clamps have been additionally proven to secure
insulated and sheathed meter tales with conductor sizes ranging from
16-35mm2. This greatly reduces the strain on the switch terminals
reducing the likelihood of loose electrical connections.
The anti-tamper screw cap is another unique feature of VC02SW,
which allows the supply authority to simply secure the main cover
in place following installation. The device can also be locked in the
open/off position with the appropriate Hager accessory.
VC02SW conforms with BS EN 60947-3:2009+A1:2012 which
facilitates the installation to comply with BS 7671 IET Wiring
Regulations, in particular guidance given in table 53.4.
VC02SW (BS EN 60947-3:2009+A1:2012)
Comes complete with three part enclosure comprising of base,
supply authority cover and end installer cover.
Factory fitted SBR290, 100A switch.
2 x Cable clamps: subjected to additional pull force tests for use with
16/25/35mm2 insulated and sheathed meter tail cables.
6 x M4x10mm PZ2 self tapping plastite screws.
1 x Anti-tamper screw cap (supply authority use). (Hager wire seal
available separately: MZN176).
Width
Height
Depth
VC02SW
IP30
BSEN60947-3
WIRE
SEAL
Height
Depth
Width
A
B
