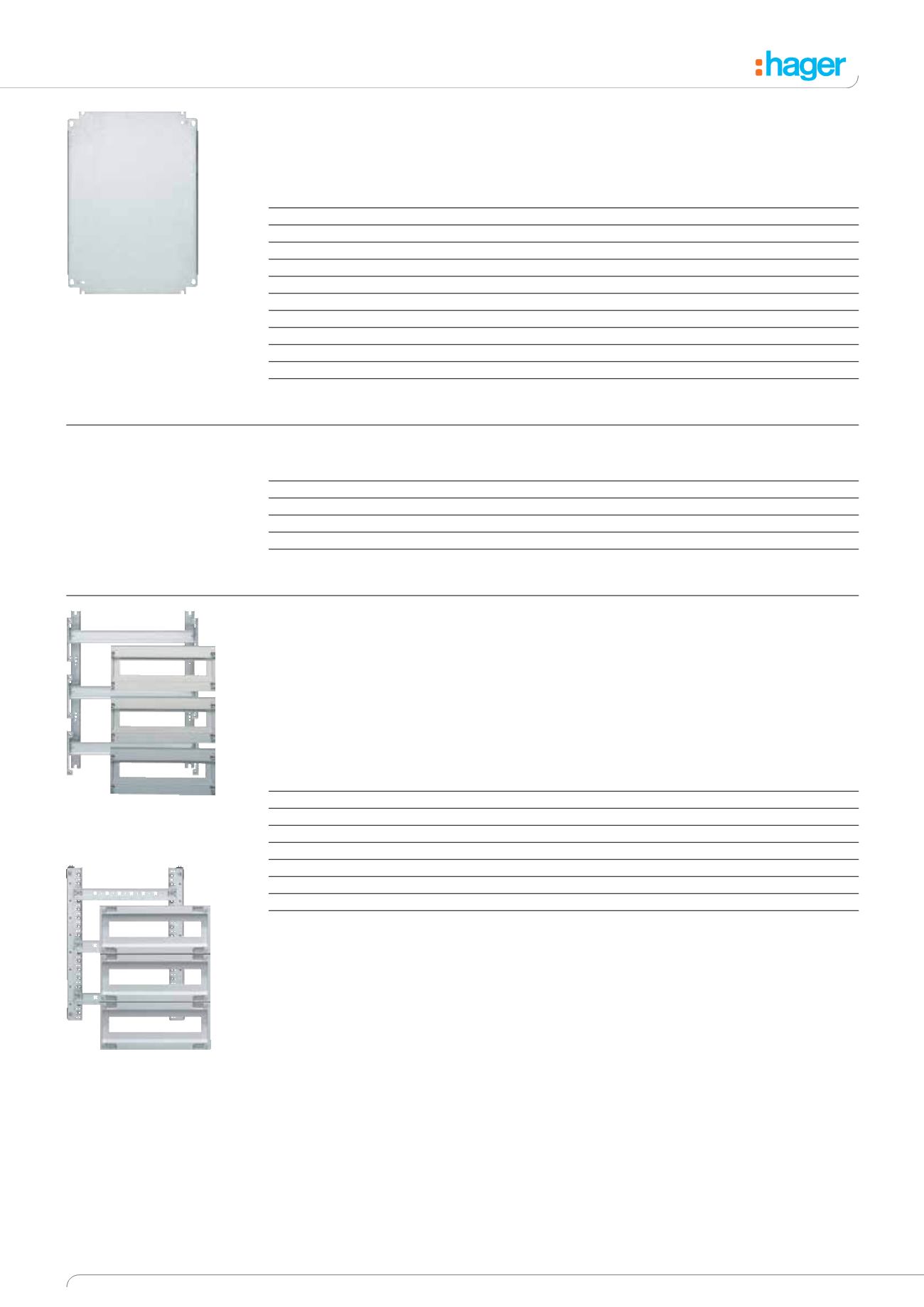

orion plus Accessories
orion plus GRP Enclosure Plain Mounting Plates
Steel sheet 2mm thickness, aluminium zinc. Fixed directly to the back of the enclosure or on the sides
allowing the in-depth setting (fitting with slides FL450A). For dimensions see page 2.19.
For enclosures
Dimensions
Cat ref.
Height x Width (mm)
FL201B
300 x 250
FL41G
FL102A, FL152A
300 x 250
FL402A
FL104A, FL105A, FL204B, FL154A, FL155A, FL254B
350 x 300
FL404A
FL110A, FL209B, FL160A, FL259B
500 x 300
FL407A
FL112A, FL213B, FL162A, FL263B
500 x 400
FL408A
FL117A, FL118A, FL216B, FL167A, FL168A, FL266B
650 x 400
FL412A
FL120A, FL221B, FL170A, FL271B
650 x 500
FL413A
FL124A, FL229B, FL174A, FL279B
800 x 600
FL415A
FL126A, FL176A
900 x 600
FL416A
FL128A, FL178A
950 x 800
FL417A
FL327B, FL527B
1150 x 850
FL522E
Blank Front Cover for Modular Chassis
For enclosures
Width
Cat ref.
FL980A, FL981A
300mm
FL02Z
FL992A, FL993A
400mm
FL03Z
FL994A
500mm
FL04Z
FL996A, FL997A
600mm
FL05Z
FL998A
800mm
FL06Z
Equipment Kits for Modular Chassis
On Chassis
Only for FL980A and FL981A, composed of:
• DIN rails (slide length 44mm) assembled on chassis and adjustable in depth (of front plates with slide).
On Vertical Rail
Composed of:
• 2 vertical rail, DIN rail (slide length 44mm).
• Front plates with slit.
• A cross-rail allowing the assembly of bars on base and slides).
For enclosures
Rows (modules)
Cat ref.
FL104A, FL105A, FL204B, FL154A, FL155A, FL254B
2 rows (24)
FL980A
FL110A, FL209B, FL160A, FL259B
3 rows (36)
FL981A
FL112A, FL213B, FL162A, FL162A, FL263B
3 rows (48)
FL992A
FL117A, FL118A. FL216B, FL167A, FL168A, FL266B
4 rows (64)
FL993A
FL120A, FL221B, FL170A, FL271B
4 rows (88)
FL994A
FL124A, FL229B, FL174A, FL279B
5 rows (130)
FL996A
FL126A, FL176A
6 rows (156)
FL997A
FL128A, FL178A
6 rows (222)
FL998A
FL408A
FL981A
FL992A
