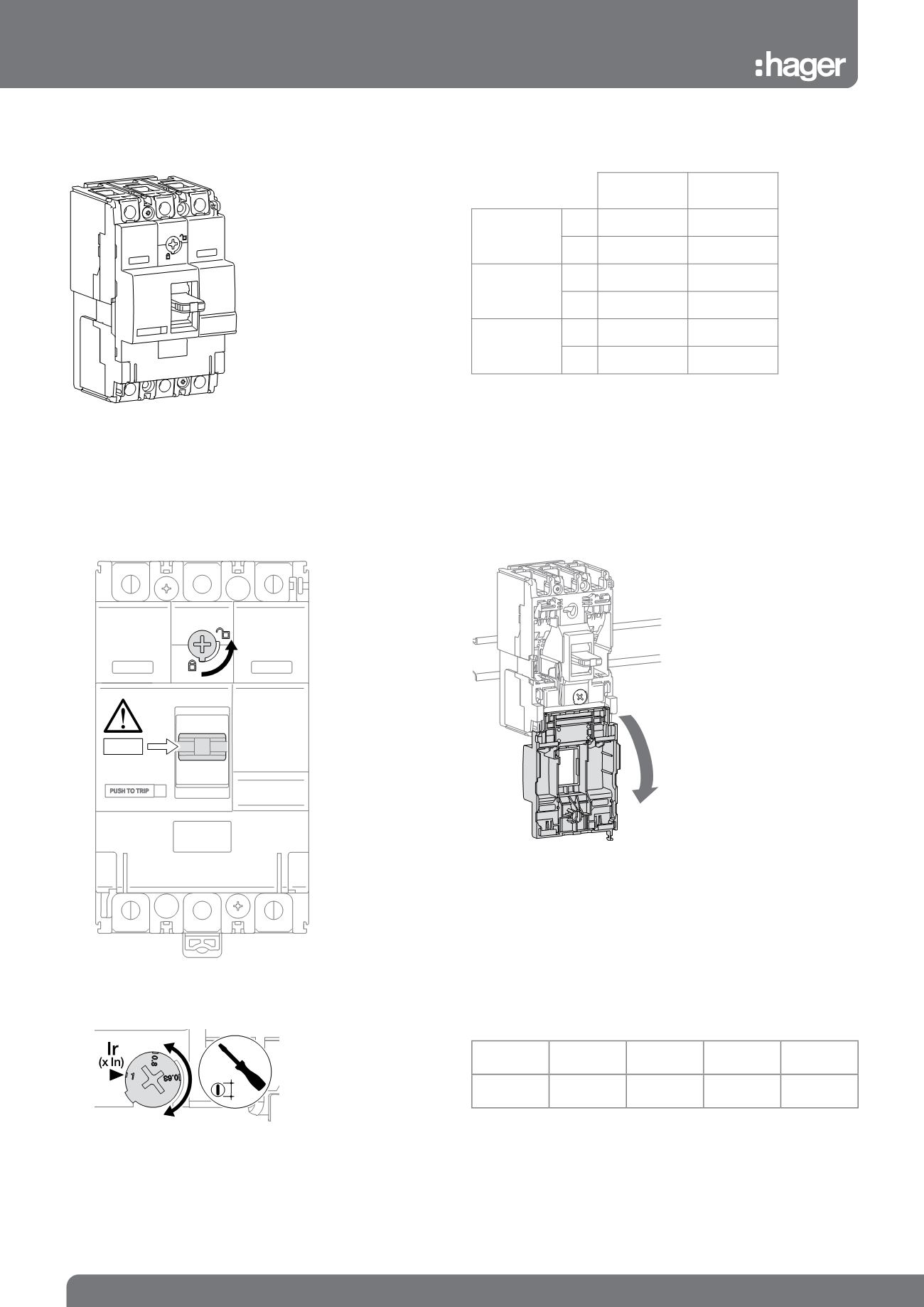

General Catalogue • Protection Devices • Technical
MCCBs, Moulded Case Switches
x160
MCCBs
Magnetic and thermal settings
220/240V AC
IEC 60 947-2
380/415V AC
IEC 60 947-2
HDA
Icu 25 kA
18 kA
Ics 25 kA
18 kA
HHA
Icu 35 kA
25 kA
Ics 25 kA
20 kA
HCA
Icm -
2.8 kA
Icw -
2 kA - 1s
Thermal adjustment from 0.63 to 1 x In
①
③
In
16 - 50 A 63 - 80 A 100 - 125 A 160 A
Imag
600 A
1000 A 1500 A 1600 A
Magnetic adjustment fixed > 10 x In
For DIN rail mounting, use HYA033H.
Ech. 30%
H T T I
H T T I
Ech. 65%
TRIP
Ir
(x In)
②
