4.39
MCCBs & Moulded case Switches x160
Description
Characteristics
In
Cat. Ref.
3P
4P
Add-on Blocks
l
Δn
300 mA
fixed sensitivity
instantaneous tripping
125A
HBA127H HBA128H
sensitivity l
adjustable: 0.03 - 0.1 - 0.3 - 1 - 3 - 6A
adjustable tripping:
• instantaneous
• time delay: 0.06 - 0.15 - 0.3
• 0.5 - 1s
125A
HBA125H HBA126H
160A
HBA160H HBA161H
Add-on blocks for x160
devices
These devices are intended to be
fixed on the right side of the
devices.
Type A and HI
For pulsating residual current.
High Immunity reduces the
unexpected tripping when
protecting equipment generating
disturbances (micro-processing,
electronic ballast...)
Fixed version: 300 mA sensitivity
and instantaneous tripping
Adjustable version: adjustable
sensitivity and time delay.
Test button for electrical
functioning check.
Mechanical test button
LED fault indication and auxiliary
output for remote indication.
(25-50% I
Δn
).
Assembly and disassembly
facilitated by the drawer
assembly system. The terminal
cover is part of the
add-on block.
Connection capacity
95 mm
2
rigid cables
70 mm
2
flexible cables
Complies with BS EN 60 947-2
annexe B when fitted to an
MCCB.

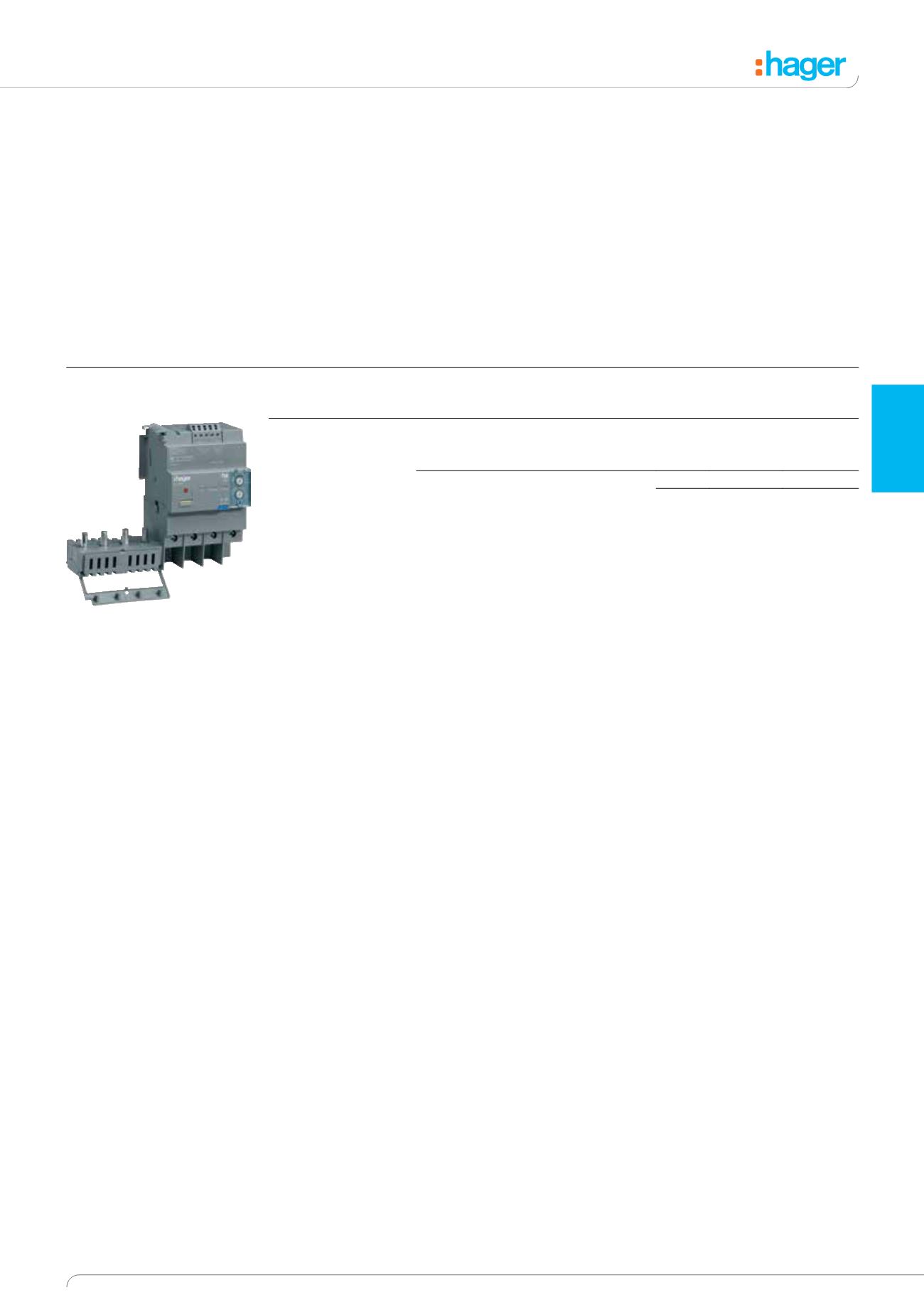

HBA161H
Protection
Devices
