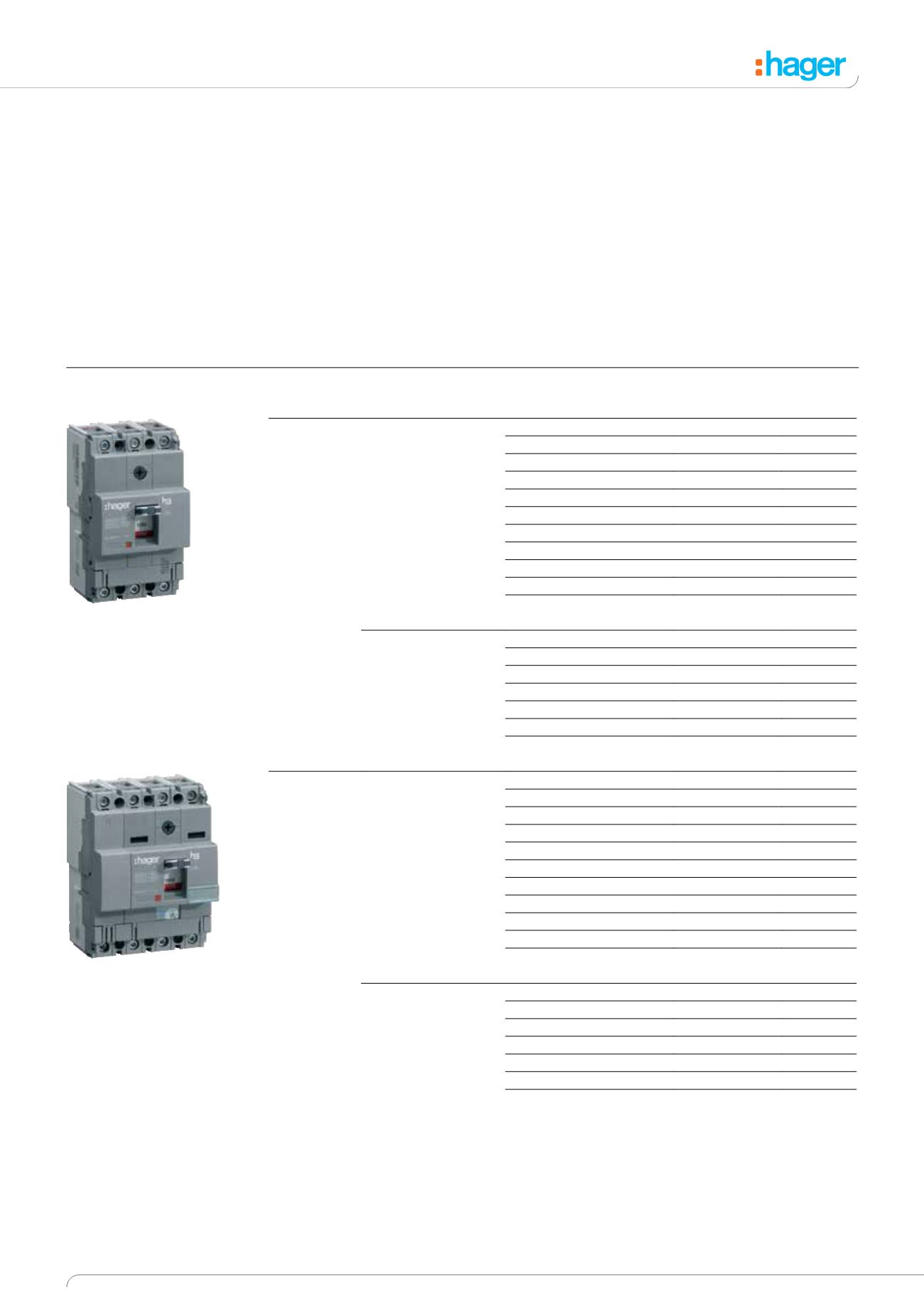

141 / 381
4.38
General Catalogue • Protection Devices
MCCBs x160
Description
Characteristics
In
Cat. Ref.
1P
3P
MCCBs x160
18kA
breaking capacity
Ics : 18 kA
(400/415 V AC)
fixed thermal
1x In
fixed magnetic
> 10 x In
16A
HDA014Z
HDA016Z
20A
HDA018Z
HDA020Z
25A
HDA023Z
HDA025Z
32A
HDA030Z
HDA032Z
40A
HDA038Z
HDA040Z
50A
HDA048Z
HDA050Z
63A
HDA061Z
HDA063Z
80A
HDA078Z
HDA080Z
100A
HDA098Z
HDA100Z
125A
HDA123Z
HDA125Z
160A
-
HDA160Z
adjustable thermal
0.63 - 0.8 - 1 x In
fixed magnetic
> 10 x In
25A
-
HDA025U
40A
-
HDA040U
63A
-
HDA063U
80A
-
HDA080U
100A
-
HDA100U
125A
-
HDA125U
160A
-
HDA160U
MCCBs x160
25kA
breaking capacity
Ics : 20 kA
(400/415 V AC)
fixed thermal
1x In
fixed magnetic
> 10 x In
16A
HHA014Z
HHA016Z
20A
HHA018Z
HHA020Z
25A
HHA023Z
HHA025Z
32A
HHA030Z
HHA032Z
40A
HHA038Z
HHA040Z
50A
HHA048Z
HHA050Z
63A
HHA061Z
HHA063Z
80A
HHA078Z
HHA080Z
100A
HHA098Z
HHA100Z
125A
HHA123Z
HHA125Z
160A
-
HHA160Z
adjustable thermal
0.63 - 0.8 - 1 x In
fixed magnetic
> 10 x In
25A
-
HHA025U
40A
-
HHA040U
63A
-
HHA063U
80A
-
HHA080U
100A
-
HHA100U
125A
-
HHA125U
160A
-
HHA160U
Moulded case circuit breakers
x160
Thermal magnetic trip unit, 2
versions:
• Z version: fixed thermal and
fixed magnetic
• U version: adjustable thermal
and fixed magnetic
1P, 2P, 3P and 4P
Access to mechanical test
button on cover. Lockable cover
protects MCCB settings.
Integrated padlocking handle
Ø 4mm,
MCCBs can be mounted on DIN
rail with use of accessory.
Connection capacity
95 mm
2
rigid cables
70 mm
2
flexible cables
collar terminals
Complies with BS EN 60 947-2.
Moulded case switches comply
with BS EN 60 947-3.
For technical details see table
page 4.44
HDA125Z
HDA161U
