MK Electric Catalogue No. 49

48 / 759

TV CO-AXIAL OUTLETS FOR DIGITAL TV SCREENED
NON ISOLATED
K5850WHI 5
K5850BLK 5
SINGLE OUTLET (IEC MALE)
ONE MODULE 25 X 50MM
K5851WHI 5
K5851BLK 5
SINGLE OUTLET
(IEC FEMALE)
ONE MODULE 25 X 50MM
K5855WHI 5
K5855BLK 5
SINGLE F-TYPE SATELLITE
SOCKET
ONE MODULE 25 X 50MM
Fully screened non isolated TV outlets
containing a combination of single, TV/
FM Diplexer and TV/FM/SAT Triplexer
for use within digital TV systems and
interactive TV services. Single outlets
for connection to a single TV, FM or
Satellite co-axial aerial lead.
TV/FM diplexer units for connection to a single co-axial aerial lead with combined
TV and FM signals.
TV/FM/SAT triplexer units for connection to a single co-axial aerial lead with
combined TV, FM and Satellite signals
K5852WHI 5
K5852BLK 5
TWIN OUTLET
TV/FM DIPLEXER
TWO MODULE 50 X 50MM
(IRELAND ONLY)
K5852DABWHI 5
K5852DABBLK 5
TWIN OUTLET TV-FM/DAB
DIPLEXER
TWO MODULE 50 X 50MM
K5853WHI 5
K5853BLK 5
TRIPLE OUTLET
TV/FM/SATELLITE TRIPLEXER
TWO MODULE 50 X 50MM
(IRELAND ONLY)
K5853DABWHI 5
K5853DABBLK 5
TRIPLE OUTLET
TV-FM/DAB-SAT TRIPLEXER
TWO MODULE 50 X 50MM
K5854DABWHI 5
K5854DABBLK 5
QUAD OUTLET
TV-FM/DAB-2XSAT
TWO MODULE 50 X 50MM

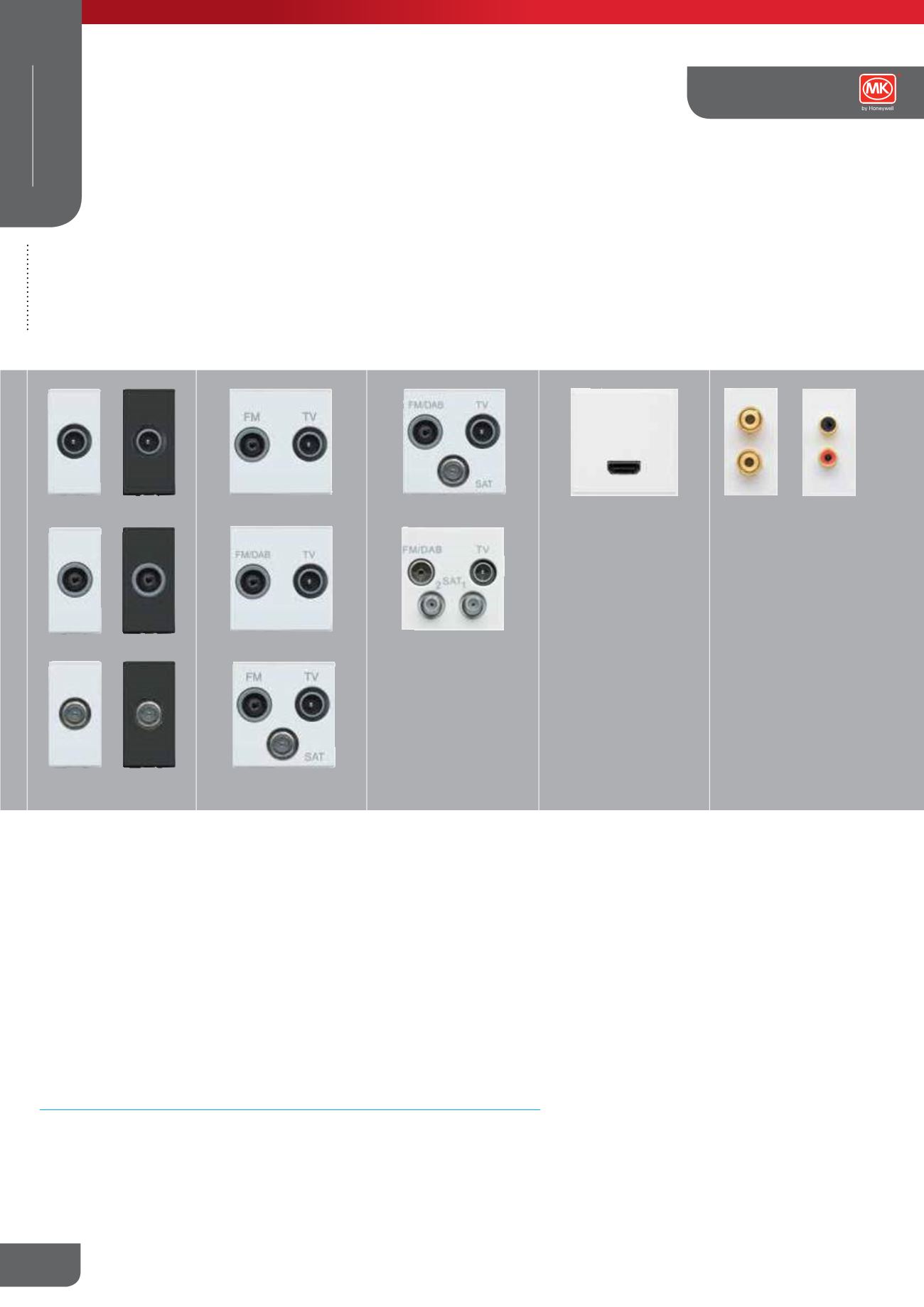

K5850WHI K5850BLK
K5851WHI K5851BLK
K5855WHI K5855BLK
K5852WHI
K5853WHI
These products are fully compatible with Labgear TV distribution systems and are approved for use in “Sky Homes” and “Homes On” specifications
K5852DABWHI
PERFORMANCE
SINGLE OUTLETS
TV/FM Iec Male Or Female
DC-950MHz
SAT F-TYPE
DC-1.75GHz
MOUNTING BOXES
Min box depth 32mm
DIMENSIONS
1 Module 25 x 50mm
2 Module 50 x 50mm
BS 3041:1997
IEC 169-2:1965
BS EN 50083 & BS 5733:2010
where applicable
TV/FM/SAT PRODUCTS
Outlet: Diplexer
TV: 5-65MHz
470-862MHz
FM/DAB: 87.5-108MHz
SAT: N/A
Outlet: Triplexer
TV: 5-65MHz
470-862MHz
FM: 87.5-108MHz
SAT1: 950-2300MHz
TV/FM/DAB/SAT PRODUCTS
FOR DIGITAL RADIO
Outlet: Diplexer
TV: 5-65MHz
470-862MHz
FM/DAB: 87.5-230MHz
SAT OR SAT1: N/A
SAT2:
Outlet: Triplexer
TV: 5-65MHz
470-862MHz
FM: 87.5-230MHz
SAT1: 950-2300MHz
SAT2: 5-2300MHz
K5853DABWHI
K5854DABWHI
Euro Multimedia
Modules
K5805WHI 5
K5805BLK 5
AUDIO BINDING POST
SET FOR SINGLE LOUD
SPEAKER
K5806WHI 5
K5806BLK 5
RCA TO SCREW
TERMINATION SET
1 RED AND 1 BLACK
DIMENSIONS
50 x 25 x 28mm
K5805WHI K5806WHI K5807WHI
K5807WHI 5
K5807BLK 5
FEMALE HDMI OUTLET
K5807 Female HDMI Outlet is HDMI
1.1, 1.2, 1.3 and 1.4 compatible, HDCP
compliant.
DATA RATE
Up to 2.25 Gbps
SCAN
Up to 1080p/1920x1200
INPUT CONNECTOR
1 x HDMI Female (Type A)
OUTPUT CONNECTOR
1 x HDMI Female (Type A)
Supports high resolution input
PC
VGA, SVGA, SXVGA (1280x1024)
and UXGA (1600x1200, 1920x1200)
HDTV
480p, 720p, 1080i and 1080p
HDMI input cable should be no larger
than 20m.
DIMENSIONS
50 x 50 x 20mm
AUDIO HDMI
48
WIRING DEVICESWHITE
Logic PlusTM
