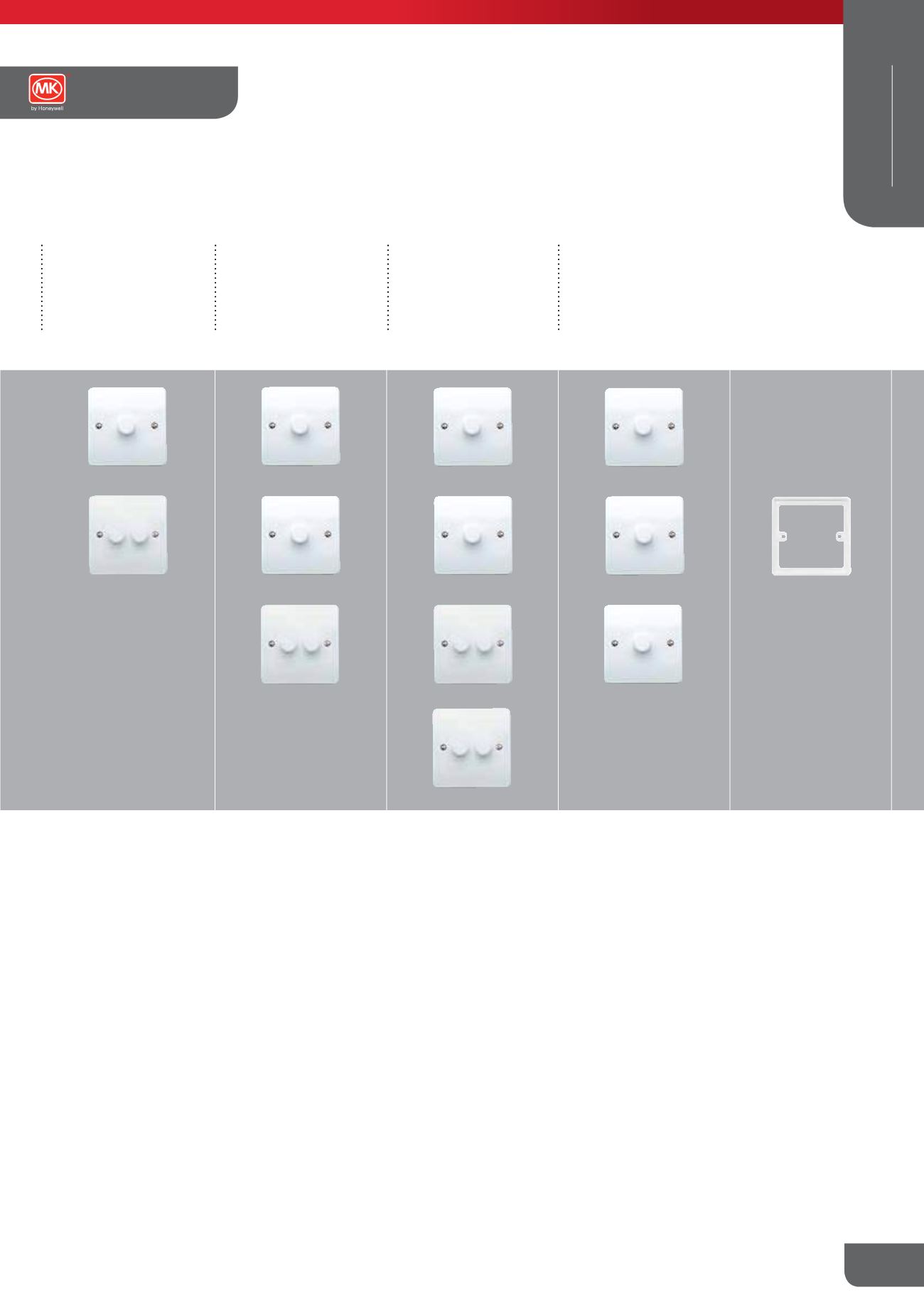

Intelligent
Dimmer Switches
230V A.C. 50HZ
TUNGSTEN FILAMENT
AND LOW VOLTAGE
HALOGEN LIGHTING
K1501WHILV
1
1 GANG SINGLE
TWO WAY 60W/VA-500W/400 VA
K1521WHILV
1
1 GANG SINGLE
TWO WAY 40W/VA-300W/240 VA
K1522WHILV
1
1 GANG DOUBLE
TWO WAY 2 X 40W/VA-300W/240 VA
FLUSH
861ZIC/866ZIC
SURFACE
K2140WHI
Micro controller based circuitry to
provide electronic soft-start and
overload protection. Suitable for use
with good quality electronic or wire
wound transformers. Can also be used
with good quality mains voltage halogen
lamps incorporating GU10 bases.
Please check with lamp manufacturer to
determine suitability.
DIMENSIONS
86 x 86mm
FIXING CENTRES
60.3mm
Conforms to BS EN 60669-2-1
K1501WHILV
K1521WHILV
K1522WHILV
Standard
Dimmer Switches
230V A.C. 50HZ
TUNGSTEN FILAMENT
K1511WHI
1
1 GANG SINGLE
ONE WAY 65-450W
K1531WHI
1
1 GANG SINGLE
ONE WAY 40-250W
K1532WHI
1
1 GANG DOUBLE
ONE WAY 2 X 40-250W
K1533WHI
1
1 GANG DOUBLE
TWO WAY 2 X 40-250W
K1534WHI
1
1 GANG SINGLE
TWO WAY 40-250W
K1535WHI
1
1 GANG SINGLE
TWO WAY 65-450W
MOUNTING BOXES
FLUSH
861ZIC/866ZIC
SURFACE
K2140WHI
Not suitable for fluorescent lamps or
low voltage lighting.
DIMENSIONS
86 x 86mm
FIXING CENTRES
60.3mm
Conforms to BS EN 60669-2-1
K1511WHI
K1531WHI
K1532WHI
Dimmer Switches
(NON UK)
200-250V A.C.
50 OR 60HZ
K1541WHI
1
1 GANG SINGLE
ONE WAY
75-500W 50HZ
K1561WHI
1
1 GANG SINGLE
TWO WAY
100-1000W 50HZ
K1641WHI
1
1 GANG SINGLE
ONE WAY
75-500W 60HZ
K1661WHI
1
1 GANG SINGLE
TWO WAY
100-1000W 60HZ
MOUNTING BOXES
FLUSH
861ZIC/866ZIC
SURFACE
K2140WHI
PATTRESS
For mounting in 16mm deep boxes
a mounting frame 40533PLWHIT9 is
available.
DIMENSIONS
86 x 86mm
FIXING CENTRES
60.3mm
K1541WHI
K1561WHI
K1661WHI
Intelligent LED
Dimmer Switch
K1523WHILV
1
1 GANG SINGLE
2 WAY
40W/VA - 300W/240VA
LED: 4-70W
K1524WHILV
1
1 GANG DOUBLE
2 WAY
40W/VA - 300W/240VA
LED: 4-70W
MOUNTING BOXES
FLUSH
861ZIC – 25mm deep min
SURFACE
K2140WHI – 30mm deep
Micro controller based circuitry to
provide electronic soft-start and
overload protection. Suitable for use
with most major manufacturers LED
lamps or electronic / wire wound
transformers. Can also be used with
good quality mains voltage GU10
halogen lamps.
Do not mix load types
This dimmer offers the user the
ability to adjust the minimum
brightness level.
Max number of lamps (10)
DIMENSIONS
86 x 86mm
FIXING CENTRES
60.3mm
BS EN 60669-2-1
K1523WHILV
K1524WHILV
40533PLWHIT9
1
CAN BE USED WITH
LOGIC PLUS DIMMERS TO
STAND PRODUCT FROM
MOUNTING SURFACE
WHERE BACK BOX DEPTH
IS NOT SUFFICIENT
DIMENSIONS
86 x 86mm
Patress thickness is 5mm
FIXING CENTRES
60.3mm
220V TO 240V A.C. 50HZ
LED, TUNGSTEN FILAMENT
AND LOW VOLTAGE
HALOGEN LIGHTING
4053PLWHIT9
K1533WHI
