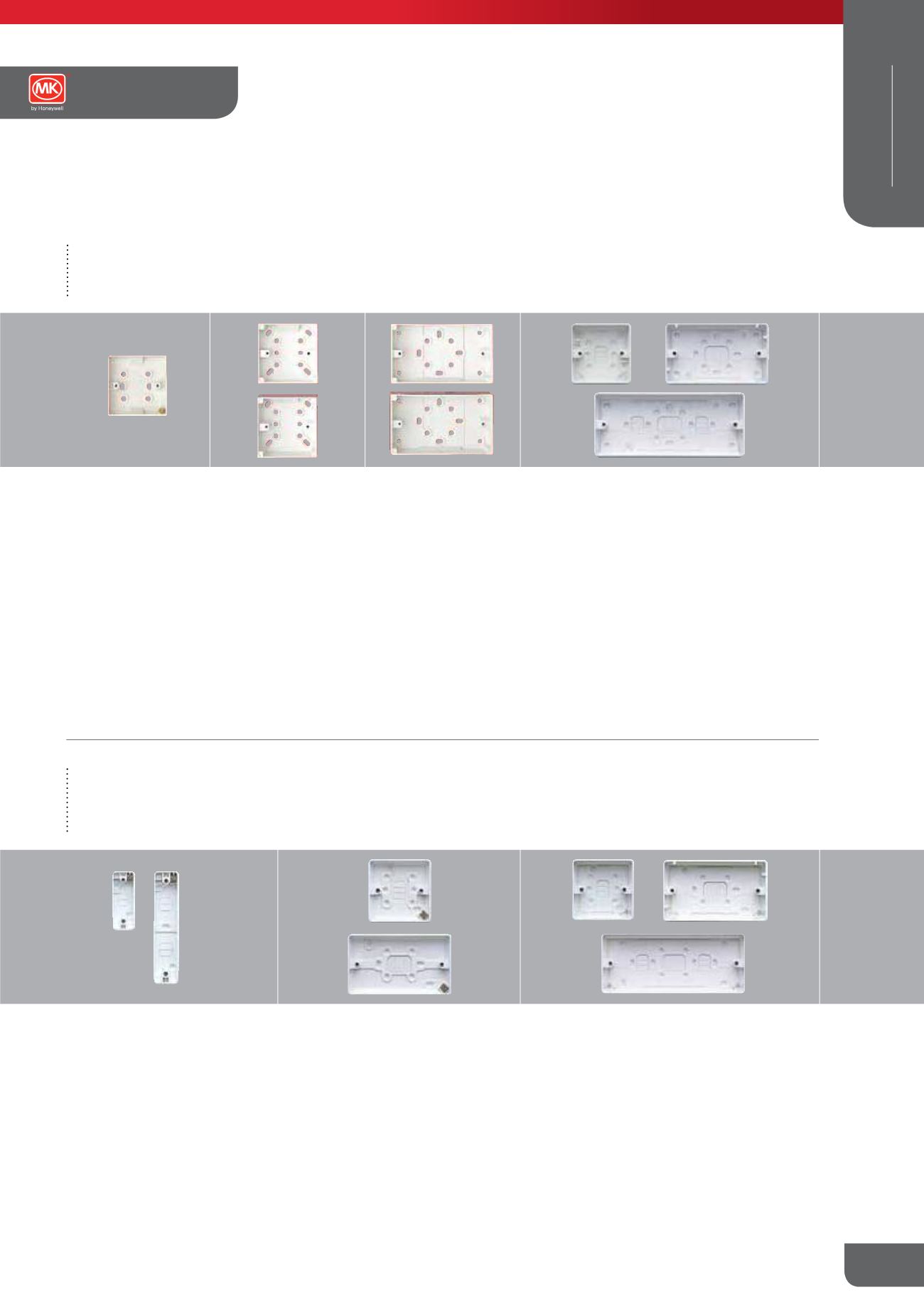

215 / 759
K2181WHI
10
FOR 1 GANG LOGIC PLUS
™
POWER ACCESSORIES
K2183WHI
5
FOR 2 GANG LOGIC PLUS
™
POWER ACCESSORIES
K2185WHI
5
FOR 3 GANG LOGIC PLUS
™
POWER ACCESSORIES
KNOCKOUTS
K2181:
One ‘cut-out’ for 20mm round conduit in top
face, one ‘cut-out’ for 20mm or 25mm oval conduit
in lower face and one 20mm round ‘push-out’ in
the base.
K2183 and K2185:
One ‘cut-out’ for 20mm round
conduit in top face, two ‘cut-outs’ for 20mm or
25mm oval conduit in lower face and one 20mm
round ‘push-out’ in the base. Both boxes are suitable
for fitting over 1 gang and 2 gang BS 4662 flush
steel boxes respectively.
DIMENSIONS
1 gang: 87 x 87mm
2 gang: 87 x 148mm
3 gang: 87 x 208mm
FIXING CENTRES
1 gang: 60.3mm
2 gang: 120.6mm
3 gang: 180.9mm
BS 4662:2006
where applicable
Moulded Boxes
K2153WHI
5
FOR 3 GANG
LOGIC PLUS
™
POWER ACCESSORIES
DIMENSIONS
1 gang: 87 x 87mm
2 gang: 87 x 148mm
3 gang: 87 x 208mm
FIXING CENTRES
1 gang: 60.3mm
2 gang: 120.6mm
3 gang: 180.9mm
BS 5733:2010
K2140WHI
10
FOR 1 GANG
LOGIC PLUS
™
POWER ACCESSORIES
K2142WHI
5
FOR 2 GANG
LOGIC PLUS
™
POWER ACCESSORIES
Knockouts in base and sides for
cable entry
K2142 and K2153 are suitable
for fitting over 1 gang and
2 gang BS 4662 flush steel boxes
respectively
K2160WHI
10
FOR 1, 2 AND
3 GANG LOGIC PLUS
™
PLATESWITCHES
K2161WHI
5
FOR 4 AND 6 GANG
LOGIC PLUS
™
PLATESWITCHES
Earth terminal fitted in base of boxes.
Knockouts provided in sides and bases.
DIMENSIONS
1 gang: 87 x 87mm
2 gang: 87 x 148mm
FIXING CENTRES
1 gang: 60.3mm
2 gang: 120.6mm
BS 5733:2010
K2151WHI
10
1 GANG
ARCHITRAVE BOX
K2152WHI
5
2 GANG
ARCHITRAVE BOX
Earth terminal fitted in base of
boxes.
DIMENSIONS
1 gang: 87 x 33 x 16mm
2 gang: 148 x 33 x 16mm
FIXING CENTRES
1 gang: 60.3mm
2 gang: 120.6mm
BS 5733:2010
30MM
SURFACE
16MM
SURFACE
ARCHITRAVE
SURFACE
2180WHI
10
1 GANG
2181WHI
10
1 GANG
DIMENSIONS
87 x 87mm
FIXING CENTRES
60.3mm
KNOCKOUTS
2180:
One ‘push-out’ for 20mm
oval conduit in top, one ‘cut-out’
for 20mm or 25mm oval conduit
and one 20mm round ‘push-out’
in the base.
2181:
One ‘push-out’ for 20mm
round conduit in top and one 20mm
round ‘push-out’ in base.
BS 5733:2010
2120WHI
10
FOR 1, 2 AND 3 GANG
PLATESWITCHES
With earth terminal
DIMENSIONS
87 x 87mm
FIXING CENTRES
60.3mm
Knockouts ‘Cut-out’ provided
in top and bottom for 16mm
oval PVC conduit. 20mm round
‘push-out’ type knockout in base
for cable entry. Fixing holes are
also provided for mounting to
wall or over BS 4568-2 small
circular boxes.
BS 5733:2010
2182WHI
5
2 GANG
2183WHI
5
2 GANG
DIMENSIONS
87 x 148mm
FIXING CENTRES
120.6mm
KNOCKOUTS
2182:
Two ‘push-outs’ for 20mm
oval conduit in top, two ‘cut-outs’
for 20mm or 25mm oval conduit
and one 20mm round ‘push-out’
in base
2183:
One ‘push-out’ for 20mm
round conduit in top and one
20mm round ‘push-out’ in base.
BS 5733:2010
32MM
SURFACE
19MM
SURFACE
PVC Boxes
MK Electric Catalogue
215
WIRING DEVICES
Technical Hotline
+44 (0)1268 563720
BOXES AND ANCILLARY
PRODUCTS
Boxes
