1kW Din Rail
Dimmer Modules
UNIVERSAL
1kW
LEADING EDGE
1kW 1kW
TRAILING EDGE
1kW 1kW
K1400 1
1kW UNIVERSAL
DIMMER – MASTER/SLAVE
DIMENSIONS
108 x 55 x 60mm
6 DIN module
MOUNTING
Suitable for mounting onto 35mm
DIN rail
TERMINALS
MAINS SUPPLY/SLAVE CONTROL
2 x 1.5mm² or 1 x 2.5mm²
T1/2/3 SWITCH CONTROL
1 x 1mm²
LOADS
Resistive, Incandescent and Mains
Halogen lamps: 60-1000W
Low voltage wire-wound
transformers: 50-900VA
Low voltage electronic transformers:
50-900VA
MAXIMUM CONTROL LINE LENGTH
100m
EN 60669-2-1
For use with up to 2 x K1400 units
configured as slaves
K1401M 1
1kW LEADING EDGE
DIMMER – MASTER
DIMENSIONS
108 x 55 x 60mm
6 DIN module
MOUNTING
Suitable for mounting onto 35mm
DIN rail
TERMINALS
MAINS SUPPLY/SLAVE CONTROL
2 x 1.5mm² or 1 x 2.5mm²
T1/2/3 SWITCH CONTROL
1 x 1mm²
LOADS
Resistive, Incandescent and Mains
Halogen lamps: 60-1000W
Low voltage wire-wound
transformers: 50-900VA
MAXIMUM CONTROL LINE LENGTH
100m
EN 60669-2-1
For use with up to 2 x K1401S or
K1402S slaves
K1401S 1
1kW LEADING EDGE
DIMMER – SLAVE
DIMENSIONS
108 x 55 x 60mm
6 DIN module
MOUNTING
Suitable for mounting onto 35mm
DIN rail
TERMINALS
MAINS SUPPLY/SLAVE CONTROL
2 x 1.5mm² or 1 x 2.5mm²
T1/2/3 SWITCH CONTROL
1 x 1mm²
LOADS
Resistive, Incandescent and Mains
Halogen lamps: 60-1000W
Low voltage wire-wound
transformers: 50-900VA
MAXIMUM CONTROL LINE LENGTH
100m
EN 60669-2-1
For use with K1401M or K1402M
Master dimmers
K1402M 1
1kW TRAILING EDGE
DIMMER – MASTER
DIMENSIONS
108 x 55 x 60mm
6 DIN module
MOUNTING
Suitable for mounting onto 35mm
DIN rail
TERMINALS
MAINS SUPPLY/SLAVE CONTROL
2 x 1.5mm² or 1 x 2.5mm²
T1/2/3 SWITCH CONTROL
1 x 1mm²
LOADS
Resistive, Incandescent and Mains
Halogen lamps: 60-1000W
Low voltage electronic transformers:
50-900VA
MAXIMUM CONTROL LINE LENGTH
100m
EN 60669-2-1
For use with up to 2 x K1401S or
K1402S slaves
K1402S 1
1kW TRAILING EDGE
DIMMER – SLAVE
DIMENSIONS
108 x 55 x 60mm
6 DIN module
MOUNTING
Suitable for mounting onto 35mm
DIN rail
TERMINALS
MAINS SUPPLY/SLAVE CONTROL
2 x 1.5mm² or 1 x 2.5mm²
T1/2/3 SWITCH CONTROL
1 x 1mm²
LOADS
Resistive, Incandescent and Mains
Halogen lamps: 60-1000W
Low voltage electronic transformers:
50-900VA
MAXIMUM CONTROL LINE LENGTH
100m
EN 60669-2-1
For use with K1401M or K1402M
Master dimmers
K1400 K1401M K1401S K1402M K1402S

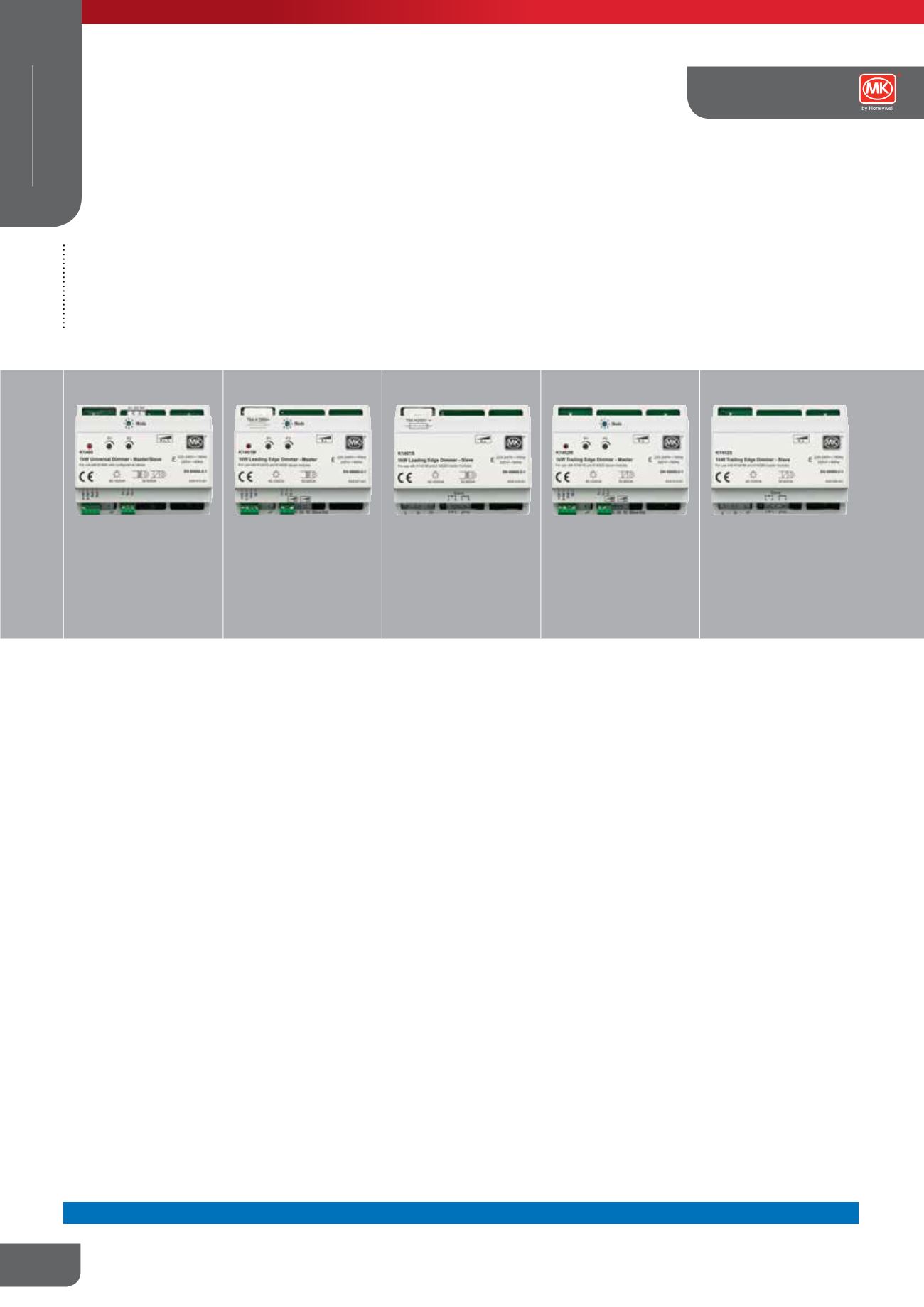

High Powered Dimmers are Din Rail mounted, suitable for any standard BS EN 50022 35mm Din Rail, and are 6 Din Modules wide.
