CI insulated enclosures
System overview
20/5
Basic enclosures
Five sizes can be combined
Width ≧ 187.5 ≦ 375 mm
Height ≧ 250 ≦ 750 mm
Depth ≧ 150 ≦ 275 mm
Metric cable entry knockouts in the
sides
Cover fasteners with
I/0 status indication,
sealable, pressure relief
through built-in spring
Cover
transparent, with/without door
Non-transparent, RAL 7032
￫Page 20/17
Product features
• Totally insulated
• Protection type IP65
• Safety class 2
• Distribution board system with
25 mm grid
• Modular system
• Captive, sponge-rubber gaskets
• Insulating wedge-lock fastener for
connecting the enclosures with
each other
• Enclosure of self-extinguishing,
-halogen free polycarbonate
Standards
• IEC/EN 60439-1
• VDE 0660 Part 500
• BS 5486 Part 1
• NF EN 60439-1
• SN EN 60439-1
Busbar systems 1
5-conductor systems
Rated operational current up to 630 A
Tinned copper busbars up to 630 A
Busbar terminals
￫Page 20/40
Fixing 2
Support frames for wall-mounted and
floor-standing distribution boards
Wall fixing bracket
Fixing straps
￫Page 20/64
Cable compartment 3
Plinths
Cable compartment cladding
￫Page 20/68￫Page 20/70
Cable entries 4
Gland plates for large cross-sections
Flanges
Metric cable glands/cable grommets
￫Page 20/23￫Page 20/29
Terminals, copper band
￫Chapter 16, Accessories for control
panel building
Mounting systems for basic
enclosures 5
Sheet steel mounting plates and
insulating material
Pre-drilled mounting plate for surface
mounting standard devices
￫Online catalogue
Mounting rails and module mounting
rails to IEC/EN 60715
Mounting depths 125 to 250 mm
Meter equipment
￫Page 20/26
Enclosures with components fitted/
service distribution boards (TTA) 6
MCB enclosures
Fuse enclosures
￫Page 20/52
Enclosures with LV h.b.c. fuse bases
￫Page 20/57
Enclosures with LV h.b.c. fuse
switch-disconnectors
￫Page 20/62
CI enclosures for NZM1, 2, 3
circuit-breakers and N1, 2, 3,
PN1, 2, 3 switch-disconnectors
￫Page 20/34
Meter enclosures
￫Page 20/37
Cover fasteners 7
Fixable or with cylinder lock
￫Page 20/22

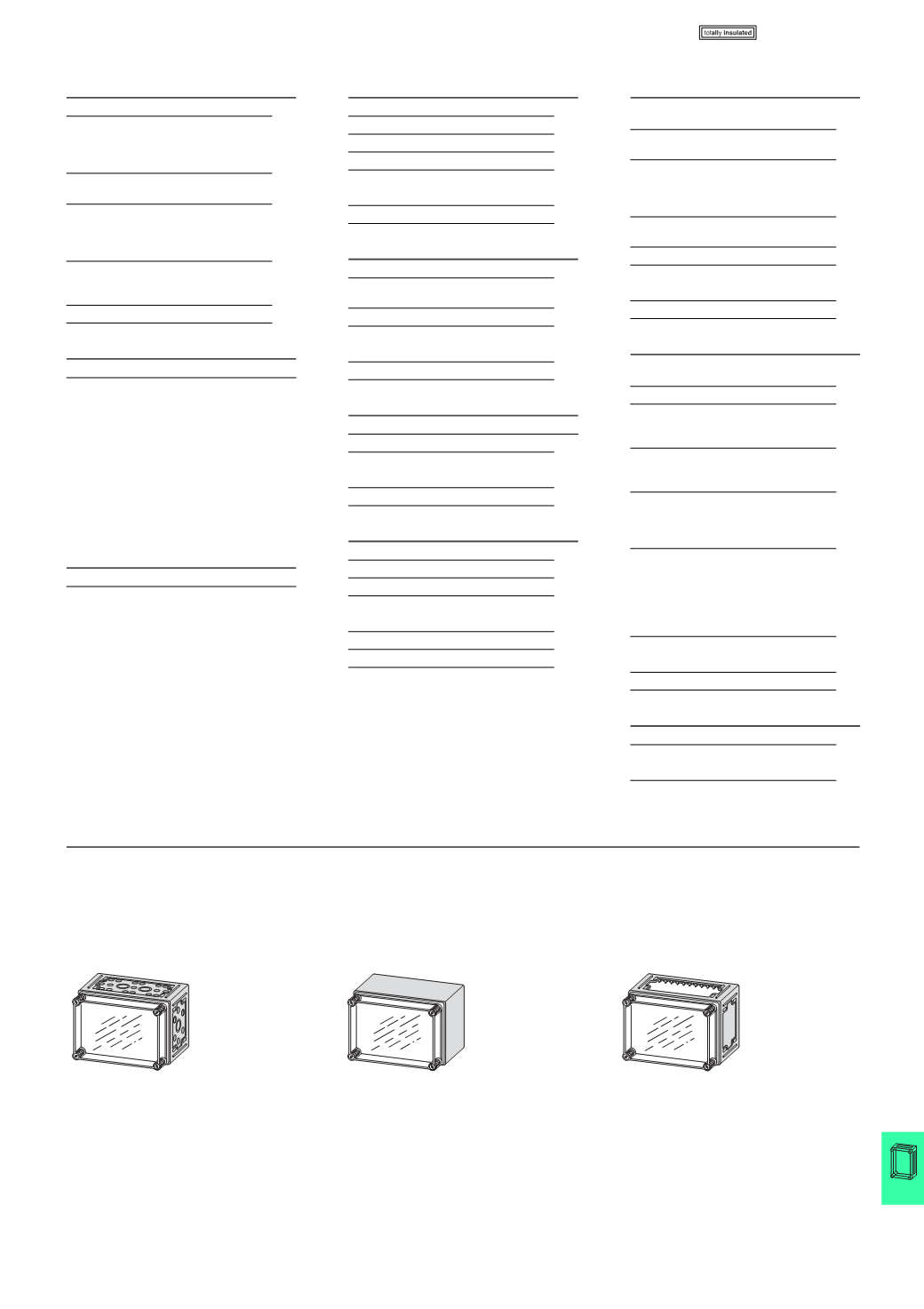

Enclosure styles
The enclosure cover is identical for all three construction types.
CI...E-... individual enclosure
• Metric cable entry knockouts in all sides
• All enclosure sides can also be knocked out
• Also for use in CI distribution board systems
CI...X-... individual enclosure
• All four enclosure side plates walls smooth
without knockouts
CI...-... panel enclosure
• Horizontal enclosure sides open
• Vertical enclosure sides with large knockouts
• Suitable for surface mounting CI distribution
board systems
