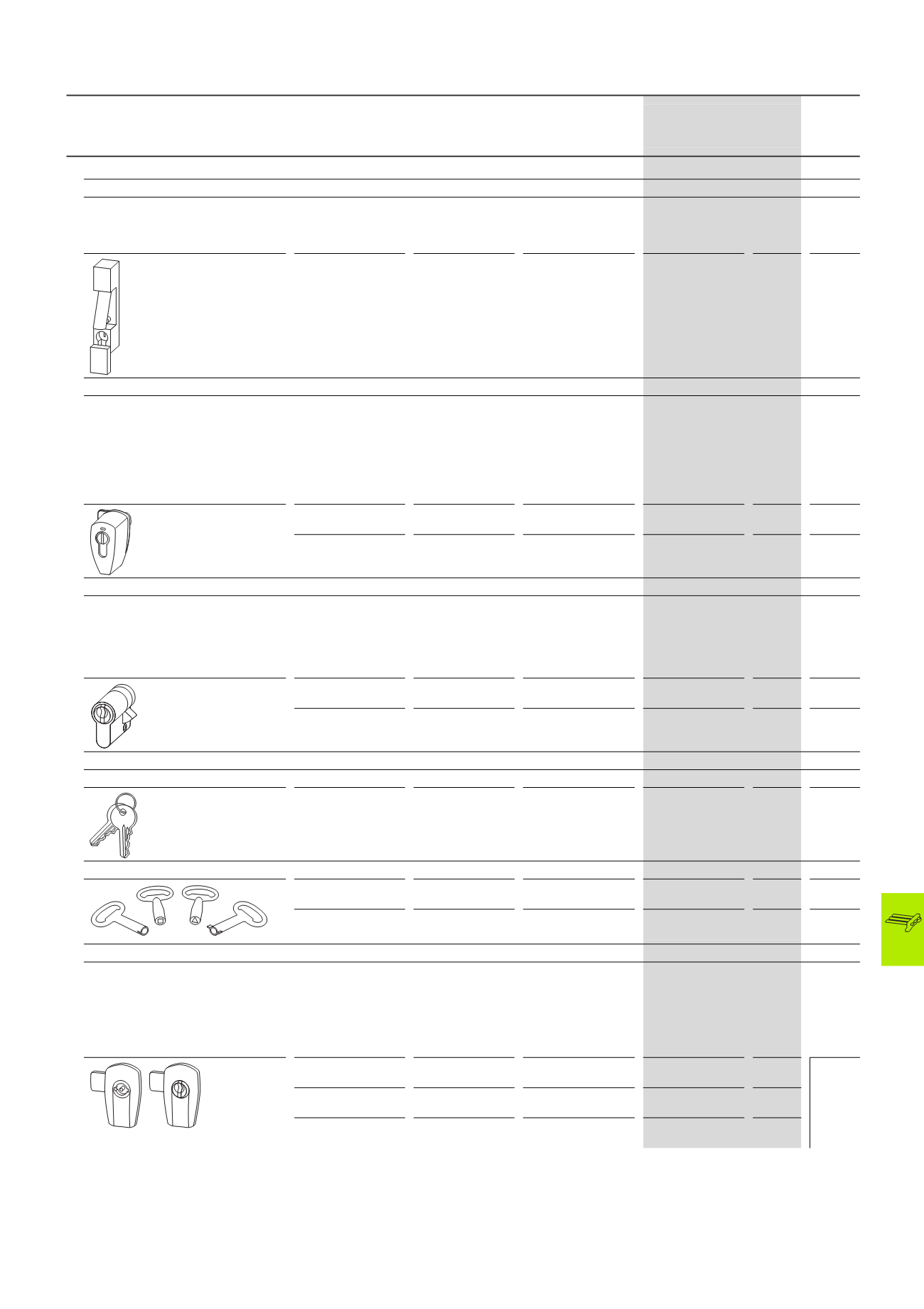

Accessories for control panel building
Closing and locking systems
2010 CA08103002Z-EN
16/81
Closingand locking systems
Description For lock mechanism Features Part no.
Article no.
Price
See
price list
Std. pack
Closing and locking systems
Comfort hinged handle
• Lever made from high-grade, impact-resistant pressure-cast zinc
• Ergonomically designed lever
• For XVTL, Profi Plus floor standing distribution boards
• Color black, powder-spray painted
– Europrofile single
cylinder lock
With pushbutton DH-COMF
133107
1 off
Comfort rotary handle
• Rotary handle for taking europrofile cylinders
• With integrated “locked” indication
• As retrofitting or complete kit
• Handle made from high-grade, impact-resistant pressure-cast zinc
• Suitable for all universal locks LC-...
• For standardized door cutouts 22.5 × 20.4 mm
• Color dusty grey RAL 7037, powder-coated
• Order lock cylinders separately
Complete kit Europrofile single
cylinder lock
– PHZ-A-COMP
133105
1 off
Retrofitting kit Europrofile single
cylinder lock
– PHZ-A-ADD-ON
133106
1 off
Cylinder locks for comfort handles
• For comfort rotary and hinged handles
• Lock cylinder designed to DIN 18252 and DIN EN 1303
• Cylinder locks 10/30 with nickel silver pin tumblers
• Lock bit with eight adjustment positions, five pin pairs
• Keyed alike or individually keyed mechanism
• One key included per cylinder
Keyed alike – – PHZ-E10/30-GS
138574
1 off
Individually keyed
mechanism
– – PHZ-E10/30-VS
138575
1 off
Spare keys for cylinder locks
• For cylinder locks PHZ-E…-GS
Keyed alike Europrofile single
cylinder lock
– KEY-E10/30-GS
138576
4 off
Key for lock mechanisms
– – 3 mm double ward key NWS-SL/DLB/3
255317
1 off
– – 5 mm double ward key NWS-SL/DLB/5
255318
1 off
Universal locks
• Escutcheon made from high-grade, impact-resistant pressure-cast zinc
• Metal lock mechanisms and bolts
• Color dusty grey RAL 7037, powder-coated
• For indoor and outdoor use
• Metal lock nut, notched
• Compatible with standard bolts
• For standardized door cutouts 22.5 × 20.4 mm
– – 3 mm double ward key LC-DBIT3-CS
133102
1 off
– – 5 mm double ward key LC-DBIT5-CS
133103
Keyed alike – Cylinder lock with two
keys
LC-ZSBIT-CS
133104
DH-COMF, PHZ, LC-DBIT HPL16081EN
