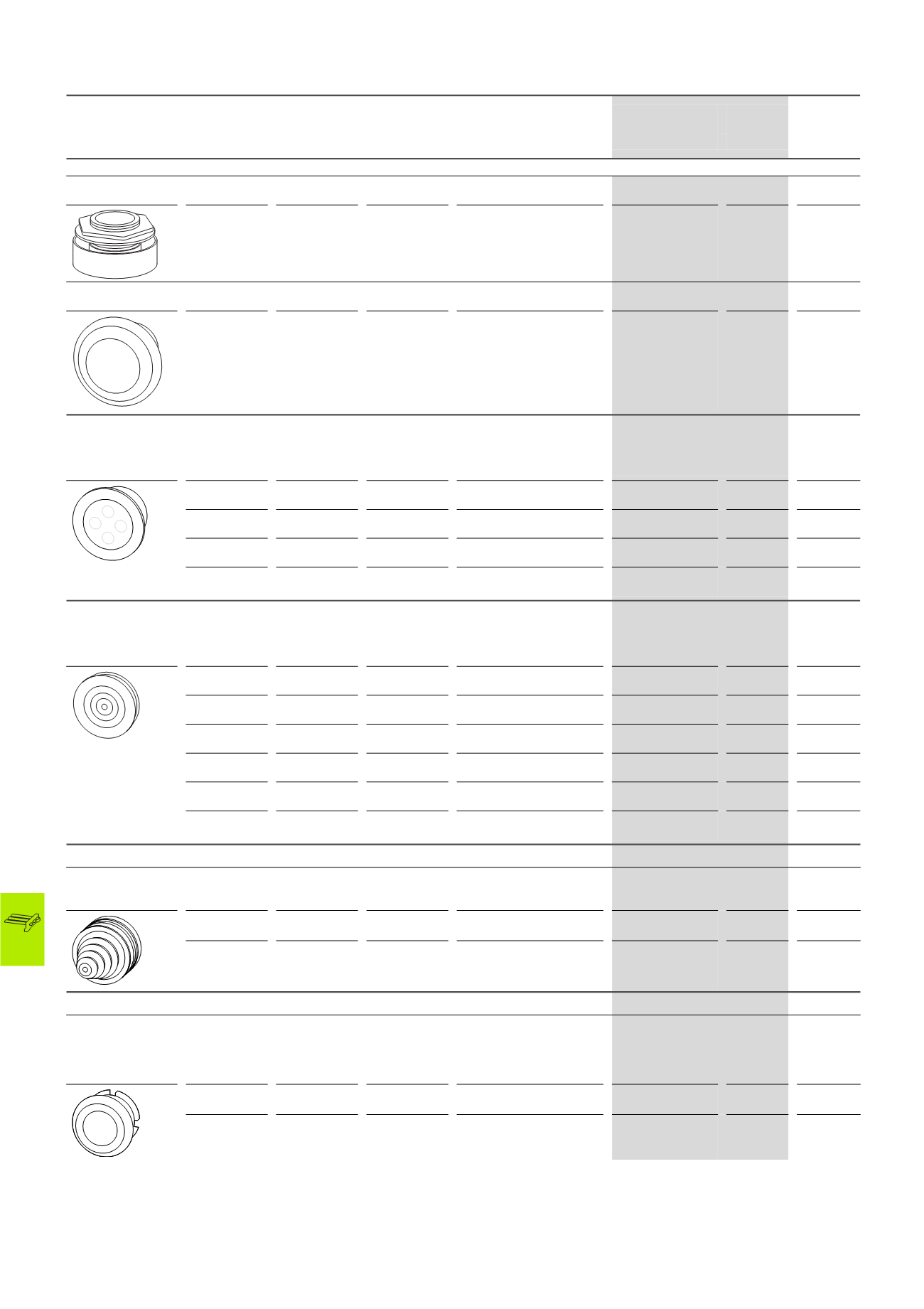

Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

16/64 Accessories for control panel building

Cable glands, cable grommets, pressure compensating grommets

2010 CA08103002Z-EN

www.eaton.com

Cableglands,cablegrommets,pressurecompensatinggrommets

Cable entry

Drilling

dimensions

External diameter

of cable

For use with NYM/NYY cables,

4-core

Part no.

Article no.

Price

See price

list

Std. pack

Pressure compensating plug

Pressure compensating plug, IP66, metric

Color RAL 7035

M40 x 1.5

–

DAV-M40

107225

2 off

Pressure compensating plug, IP66, PG

Color RAL 7032

PG29

–

DA412

079219

2 off

Cable grommets, metric

• IP66, with integrated push-through diaphragm

• PE and thermoplastic elastomer, halogen-free

• Color RAL 7035

M16

16.5

1 - 9

H03VV-F3 x 0.75 mm

NYM 1 x 16/3 x 1.5 mm

KT-M16

216983

100 off

M20

20.5

1 - 13

H03VV-F3 x 0.75 mm

NYM 5 x 1.5/5 x 2.5 mm

KT-M20

207602

100 off

M25

25.5

1 - 18

H03VV-F3 x 0.75 mm

NYM 4 x 10 mm

KT-M25

207603

100 off

M32

32.5

1 - 25

H03VV-F3 x 0.75 mm

NYM 4 x 16/5 x 10 mm

KT-M32

207604

100 off

PG cable grommets

• For wall thickness 2 - 8 mm

• Soft PVC, cadmium- and lead-free

• Color similar to RAL 7035

PG13.5

21.5

7 - 16

1.5 - 4

KT13.5

019658

100 off

PG16

23.5

7 - 17

1.5 - 10

KT16

022031

100 off

PG21

29.5

12.5 - 20

1.5 - 16

KT21

026777

100 off

PG29

12.5 - 31

1.5 - 35

KT29

029150

50 off

PG36

18 - 40

10 - 70

KT36

033896

20 off

PG42

18 - 47

10 - 95

KT42

038642

10 off

Stepped cable grommets

• For wall thickness 2 - 3 mm,

• PVC

• Color RAL 7035

–

14 - 54

–

KT3

031523

2 off

–

14 - 68

–

KT4

036269

3 off

Pressure compensating grommets

• Ventilation grommet with filter disc

• Fitting below or on side of enclosure

• PE and PVC

• Color RAL 7035

• Metric and P6

M25

25.5

–

KT-M25F

224556

100 off

PG16

23.5

–

KT16F

024404

100 off

KT-M, KT, KT...F
