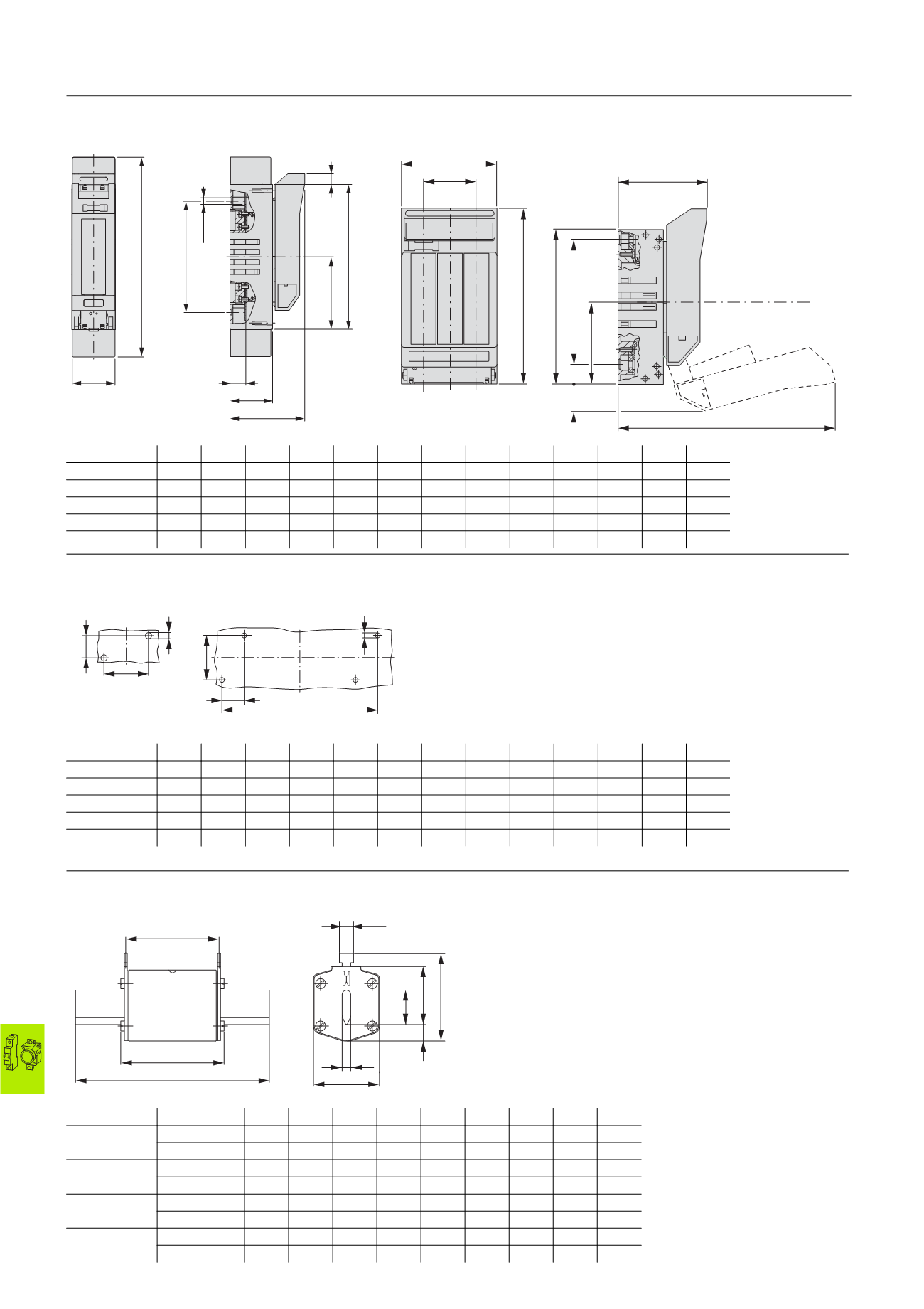

LV h.b.c. fuse switch-disconnectors
1 pole
3 pole
GSTA00-160-1P
GSTA00-160
GSTA1
GSTA2
GSTA3
LV h.b.c. fuse switch-disconnectors, drilling dimensions
GSTA00-160
GSTA2
GSTA1
GSTA3
LV h.b.c. fuse links
Z-NH-...
9
135
o
10.5
220.5
270
91
430
96
147
30.5
c3
b2
b3
b5
b4
c
b1
b
a1
a
Part no.
a
a1
b
b1
b2
b3
b4
b5
c
c3
d
e
f
GSTA00-160-1P 49
-
169
79
149
120
-
-
86.5
-
7
-
-
GSTA00-160
106
66
169
79
149
120
25
26
86.5
197
7
50
-
GSTA1
182
116
250
115
230
184
30
23
111
294
5.5
150
-
GSTA2
208
132
275
128
256
217
30
19.5
125
330.5 5.5
175
25
GSTA3
254
164
283
135
270
238
30
16
142
348
5.5
200
50
e
d
25
d
50
e
f
Part no.
a
a1
b
b1
b2
b3
b4
b5
c
c3
d
e
f
GSTA00-160-1P 49
-
169
79
149
120
25
-
86.5
197
7
-
-
GSTA00-160
106
66
169
79
149
120
25
26
86.5
197
7
50
-
GSTA1
182
116
250
115
230
184
30
23
111
294
5.5
150
-
GSTA2
208
132
275
128
256
217
30
19.5
125
330.5 5.5
175
25
GSTA3
254
164
283
135
270
238
30
16
142
348
5.5
200
50
9.8
c
b
a
k
f
d
e
g
h
Part no.
a
b
c
d
e
f
g
h
k
Z-NH-00/
Up to 100 A 79
53
47
35
15
21
52
7.5
6
125-160 A
79
53
47
35
15
28
56
12
6
Z-NH-1/
Up to 160 A 135
68
65
40
15
28
61
12
6
200-250 A
135
72
65
40
20
46
65
14
6
Z-NH-2/
to 250 A
150
72
65
48
20
46
73
14
6
315-400 A
150
72
65
48
26
54
73
14
6
Z-NH-3/
to 400 A
150
72
65
60
26
54
84
14
6
500-630 A
150
72
65
60
33
65
84
14
6
GST..., Z-NH
