Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

539 / 543

Circuit-breakers, fuses
Power meters, busbars, miniature circuit-breakers
2010 CA08103002Z-EN
19/85

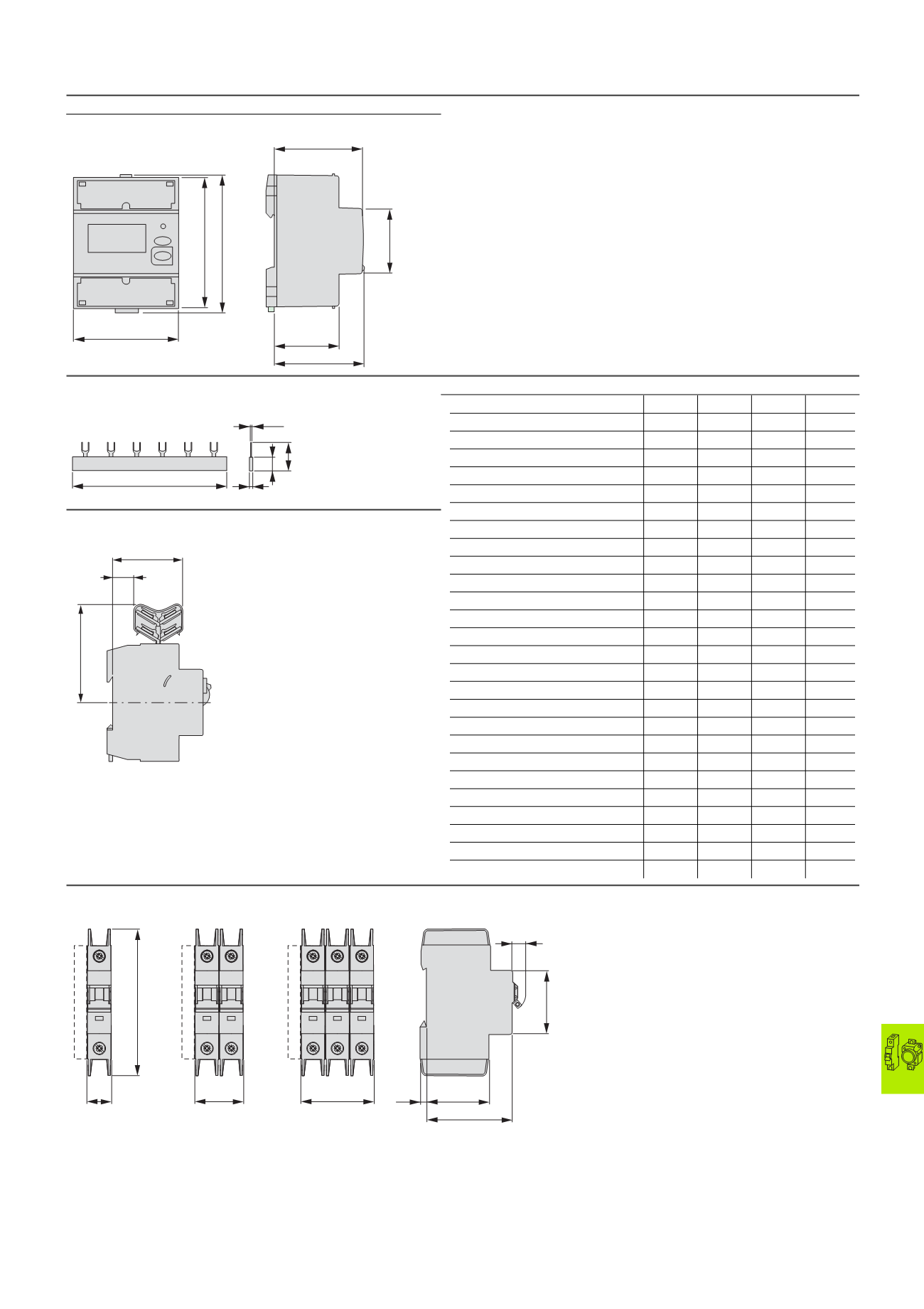

Powermeters,busbars,miniaturecircuit-breakersPower meter
KWZ-3PH...
Euro-Vario busbars
EVG-10(16)/...
Connecting bracket
ZV-...-80A-...
Miniature circuit-breakers (MCB)
FAZ-...-NA, FAZ-...-RT
71.2
45
62
44
60.6
89 93
Part no. a b b1 c
EVG-(16)/1PHAS/2MODUL 33 25.9 14 3.4
EVG-(16)/1PHAS/6MODUL 105 25.9 14 3.4
EVG-(16)/1PHAS/12MODUL 210 25.9 14 3.4
EVG-(16)/2PHAS/4MODUL 75.5 30.9 19 7.3
EVG-(16)/2PHAS/6MODUL 105 30.9 19 7.3
EVG-(16)/2PHAS/12MODUL 209.5 30.9 19 7.3
EVG-(16)/3PHAS/6MODUL 102.5 30.9 19 10.3
EVG-(16)/3PHAS/9MODUL 156 30.9 19 10.3
EVG-(16)/3PHAS/12MODUL 209.5 30.9 19 10.3
EVG-(16)/3PHAS/16MODUL 285 30.9 19 10.3
EVG-(16)/3PHAS/20MODUL 353 30.9 19 10.3
EVG-(16)/4PHAS/8MODUL 138 30.9 19 13.3
EVG-(16)/4PHAS/12MODUL 209.5 30.9 19 13.3
EVG-(16)/3PHAS/N/5MODUL/LS 156 30.9 19 10.3
EVG-(16)/3PHAS/N/8MODUL/LS 209.5 30.9 19 10.3
EVG-(16)/1PHAS/2MODUL/HI 60 25.9 14 3.4
EVG-(16)/1PHAS/6MODUL/HI 156.5 25.9 14 3.4
EVG-(16)/1PHAS/9MODUL/HI 237 25.9 14 3.4
EVG-(16)/2PHAS/4MODUL/HI 75.5 30.9 19 7.3
EVG-(16)/2PHAS/6MODUL/HI 120 30.9 19 7.3
EVG-(16)/2PHAS/10MODUL/HI 209.5 30.9 19 7.3
EVG-(16)/3PHAS/6MODUL/HI 115 30.9 19 10.3
EVG-(16)/3PHAS/12MODUL/HI 237 30.9 19 10.3
EVG-(16)/3x 1PHAS/6MODUL/HI 152 30.9 19 10.3
EVG-(16)/3x 1PHAS/8MODUL/HI 209.5 30.9 19 10.3
EVG-(16)/3x 1PHAS/9MODUL/HI 229 30.9 19 10.3
c
b1
b
a
1.5
65
17
46
35.4 44
60
10
45
5.5 17.7
105
53.1
KWZ, EVG, FAZ-NA, FAZ-RT
