Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

471 / 543

Circuit-breakers, fuses
Combination switches, power meters
2010 CA08103002Z-EN
19/17

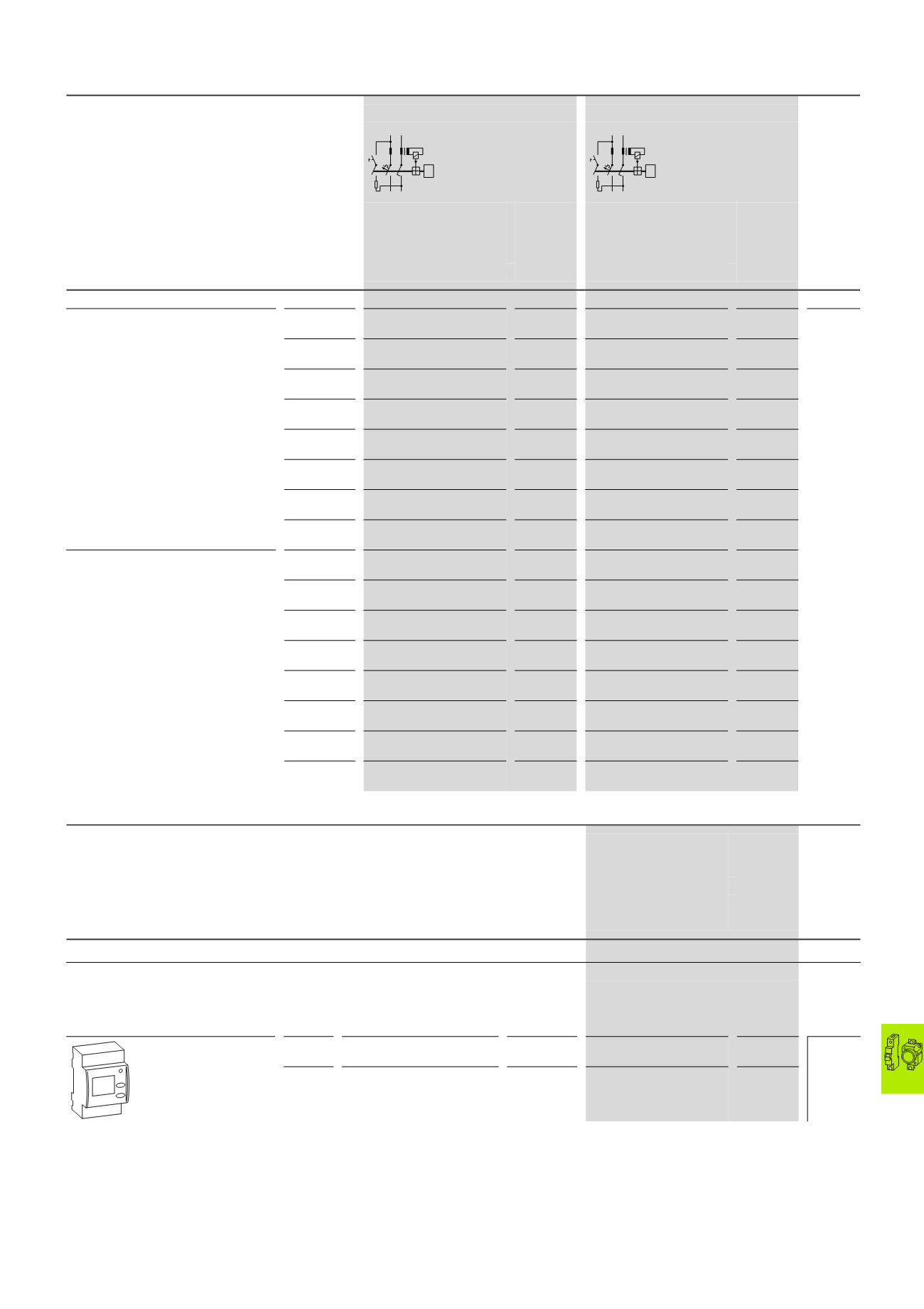

Combination switches,powermeters
Powermeter
2 pole 2 pole
Rated
operational
current
Part no.
Article no.
Rated fault current
IΔN = 30 mA
Price
See price
list
Part no.
Article no.
Rated fault current
IΔN = 300 mA
Price
See price
list
Std. pack
In
A
PKNM combination switches, type A
Characteristic B
Switching capacity 10 kA
6 PKNM-6/1N/B/003-A-DW
238580
PKNM-6/1N/B/03-A-DW
238582
1 off
10 PKNM-10/1N/B/003-A-DW
238640
PKNM-10/1N/B/03-A-DW
238642
13 PKNM-13/1N/B/003-A-DW
238701
PKNM-13/1N/B/03-A-DW
238703
16 PKNM-16/1N/B/003-A-DW
238773
PKNM-16/1N/B/03-A-DW
238775
20 PKNM-20/1N/B/003-A-DW
238807
PKNM-20/1N/B/03-A-DW
238809
25 PKNM-25/1N/B/003-A-DW
238837
PKNM-25/1N/B/03-A-DW
238839
32 PKNM-32/1N/B/003-A-DW
238867
PKNM-32/1N/B/03-A-DW
238869
40 PKNM-40/1N/B/003-A-DW
238896
PKNM-40/1N/B/03-A-DW
238898
Characteristic C
Switching capacity 10 kA
6 PKNM-6/1N/C/003-A-DW
238590
PKNM-6/1N/C/03-A-DW
238592
10 PKNM-10/1N/C/003-A-DW
238650
PKNM-10/1N/C/03-A-DW
238652
13 PKNM-13/1N/C/003-A-DW
238713
PKNM-13/1N/C/03-A-DW
238715
16 PKNM-16/1N/C/003-A-DW
238785
PKNM-16/1N/C/03-A-DW
238787
20 PKNM-20/1N/C/003-A-DW
238817
PKNM-20/1N/C/03-A-DW
238819
25 PKNM-25/1N/C/003-A-DW
238847
PKNM-25/1N/C/03-A-DW
238849
32 PKNM-32/1N/C/003-A-DW
238877
PKNM-32/1N/C/03-A-DW
238879
40 PKNM-40/1N/C/003-A-DW
238906
PKNM-40/1N/C/03-A-DW
238908
Pole Description Rated
operational
current
Part no.
Article no.
Price
See price
list
Std. pack
In
A
Power meter
Power meter to IEC/EN 62053 for sub measurements
• For active/reactive energy
• Three-phase models also suitable for unbalanced load
• Programmable through 2 keys on device front
• Front plate and terminal area can be sealed
3 + N Connection through current
transformer
5 KWZ-3PH
110825
1 off
3 + N Connection through current
transformer
63 KWZ-3PH-63
110826
N1
N2
H
N1
N2
H
PKNM, KWZ HPL19017EN
