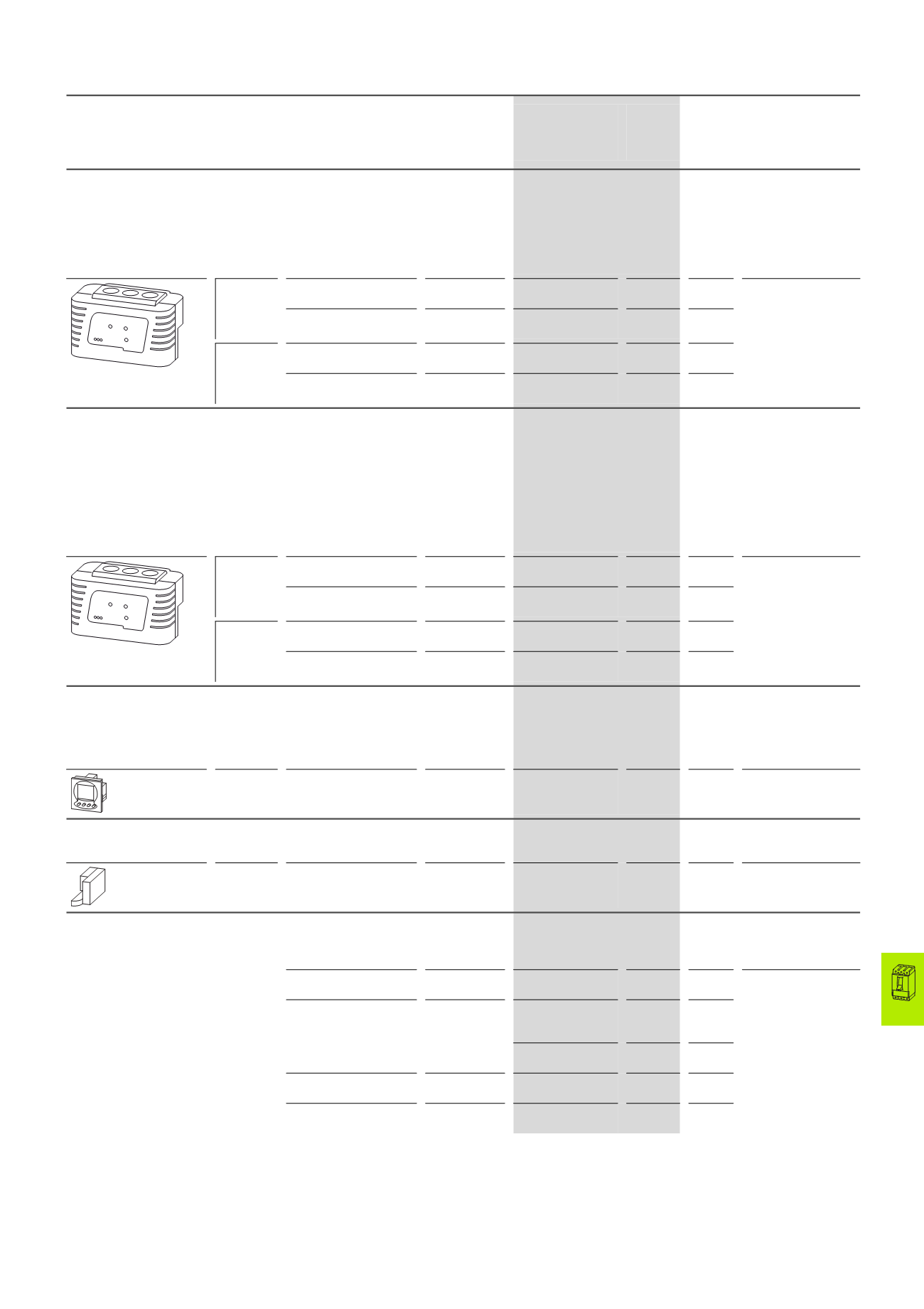

Circuit-breakers, switch-disconnectors
Energy measuring module
2010 CA08103002Z-EN
17/141
Energymeasuringmodule
Number of
conductors
Description For use with Part no.
Article no.
Price
See price
list
Std.
pack
Notes
Energy measuring module
For measuring the electrical active energy.
The module has three built-in current transformers and three voltage taps, which are
contacted with self-tapping screws that penetrate the cable insulation.
Power supply 24 VDC
The module supplies SO pulses, which can be counted with an external device.
One pulse output for active energy. The pulse rate is fixed.
3 pole – NZM 2 ≦ 300 A NZM2-XMC-S0
129839
1 off When mounting,
observe the minimum
clearances to circuit-
breaker NZM.
Themodule can be fitted
on the input or output
side.
– NZM 3 ≦ 500 A NZM3-XMC-S0
129960
1 off
4 pole – NZM 2 ≦ 300 A NZM2-4-XMC-S0
129963
1 off
– NZM 3 ≦ 500 A NZM3-4-XMC-S0
129964
1 off
Measuring and communication module
For measuring current, voltage, power and energy.
The module has three built-in current transformers and three voltage taps, which are
contacted with self-tapping screws that penetrate the cable insulation.
Power supply 24 VDC
Two SO pulse outputs
MODBUS interface (slave)
The total energy consumption value is permanently stored in the module.
Display device NZM-XMC-DISP can be connected for local indication of the readings.
Can be extended with up to two add-on cards +NZM-XMC.
3 pole – NZM 2 ≦ 300 A NZM2-XMC-MB
129961
1 off When mounting,
observe the minimum
clearances to circuit-
breaker NZM.
Themodule can be fitted
on the input or output
side.
– NZM 3 ≦ 500 A NZM3-XMC-MB
129962
1 off
4 pole – NZM 2 ≦ 300 A NZM2-4-XMC-MB
129965
1 off
– NZM 3 ≦ 500 A NZM3-4-XMC-MB
129966
1 off
Digital display device
For door-mounting (connection to local display)
For all measurement and communication modules with MODBUS interface
Per-phase indication of current, voltage, power and energy values
Includes fixed display configurations
3/4 pole Front cutout
96 × 96 knockout
NZM...XMC-MB NZM-XMC-DISP
129967
1 off –
Power supply
Power supply 230 V AC
3/4 pole Can be plugged onto basic
device
NZM...XMC-MB NZM-XMC-AC
129968
1 off –
Add-on cards for NZM-XMC modules
Every measurement and communication module can
be equipped with up to two expansion cards.
MODBUS interface – +NZM-XMC-MB
135524
1 off Order add-on cards
together with basic
device.
The cards are then
supplied readily fitted in
the basic device.
Analog output for
4–20 mA pointer-type
instruments
– +NZM-XMC-1AO
135525
1 off
2 relay outputs
(changeover contact)
– +NZM-XMC-2DO-R
135526
1 off
4 relay outputs
(changeover contact)
– +NZM-XMC-4DO-R
135527
1 off
4 digital inputs and
4 digital outputs
– +NZM-XMC-4DI-4DO
135528
1 off
NZM...-XMC HPL17141EN
