Transformers
Enclosure for transformers
2010 CA08103002Z-EN
15/19

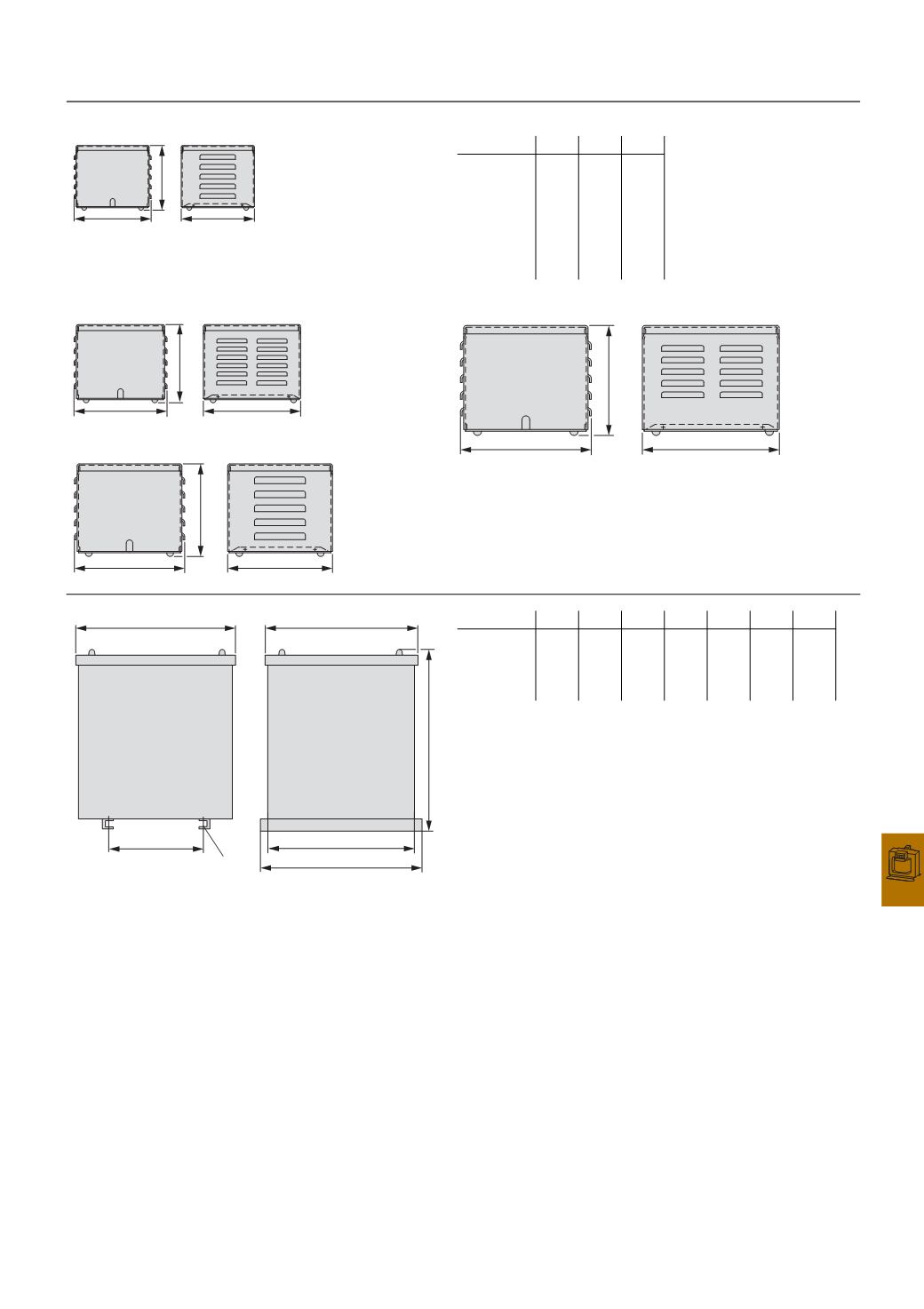

Enclosure for transformersIP23 enclosures
+IP23/01, +IP23/02
+IP23/03 +IP23/04, +IP23/31, +IP 23/32A
+IP23/30
+IP23/05, +IP23/06, +IP 23/33, +IP23/34
b
a
c
Part no. a b c
+IP23/01 122 118 145
+IP23/02 160 192 184
+IP23/03 203 192 184
+IP23/04 203 231 254
+IP23/30 160 192 184
+IP23/31 203 231 254
+IP23/32A 315 263 360
b
a
c
b
a
c
b
a
c
b c
a
f
c1 g
e
Part no. a b c c1 e f ⌀g
+IP23/05 570 390 390 430 230 390 10
+IP23/06 690 500 480 540 270 500 13
+IP23/33 520 410 340 360 212 330 10
+IP23/34 620 560 440 460 350 430 12
IP23
