Description
HMI with integratable
PLC

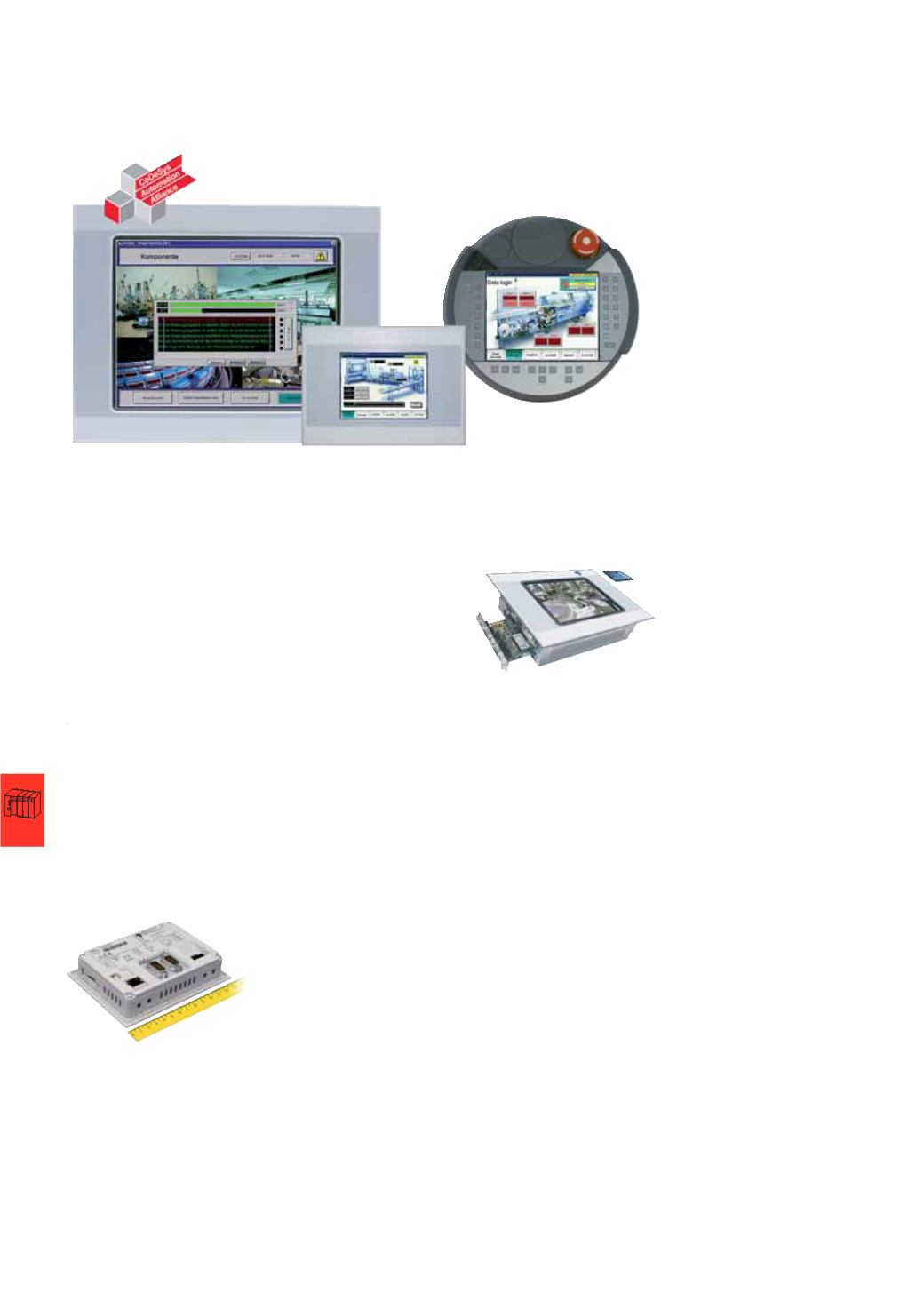

The modern touch displays XV can
optionally be used as fully-featured
PLCs. This cost-saving, leading-edge
concept offers the perfect solution for
every application, whether in the
low-cost segment or in the demanding
high-end segment, where perfor-
mance is key. The devices are
available in display sizes from 3.5” to
15”
and, depending on model with
resistive or infrared touch. Alter-
natively, the panels can also be
mounted edgewise.
XV100:
Designed for the low-cost
segment, these devices excel with
a compact design, light-weight
plastic housing and a wide range
of onboard interfaces. Despite its
small size, the XV100 with 3.5” touch
display has an exceptional range of
performance features, including PLC
function.
The touch panels with 5.7”
and 7” display feature an
additional USB host and an RS232
interface.
XVS400 and XV400:
These multipur-
pose devices with their rugged metal
housing are exceptionally flexible and
provide comprehensive communica-
tion possibilities. The XVS400 features
a PROFIBUS-DP master/MPI interface
as standard as well as Ethernet, RS232
and onboard USB host. With optional
communication modules the XV400
can be easily and quickly expanded
and adapted.
The XV400 with stainless steel front
is also ideally equipped for special
applications:
•
IP69K: cleaning using high-pressure
and steam jets (5.7“)
•
Ex zone 1: For use in potentially
explosive atmospheres (10.4” and
12.1”)
XVM400:
The mobile version with its
round, ergonomic design is easy to
operate with just one hand.
Licencing procedure
To make sure that you pay for only
those functions that you actually need,
the devices work with a license point
system. Use the points to activate
specific functions, such as:
•
Runtime for the visualization
(
GALILEO or EPAM)
•
Communication (e.g. Ethernet,
CANopen, Siemens MPI)
•
Tools (e.g. CE Telediag,
S7 PG Router)
•
XSOFT-CODESYS-2 runtime for
the PLC function
With license product certificates you
can buy additional license points. This
has the following benefits for you:
•
Cost optimization
•
Low warehousing costs
•
Flexible handling
￫For detailed information about this
topic see chapter Licensing
