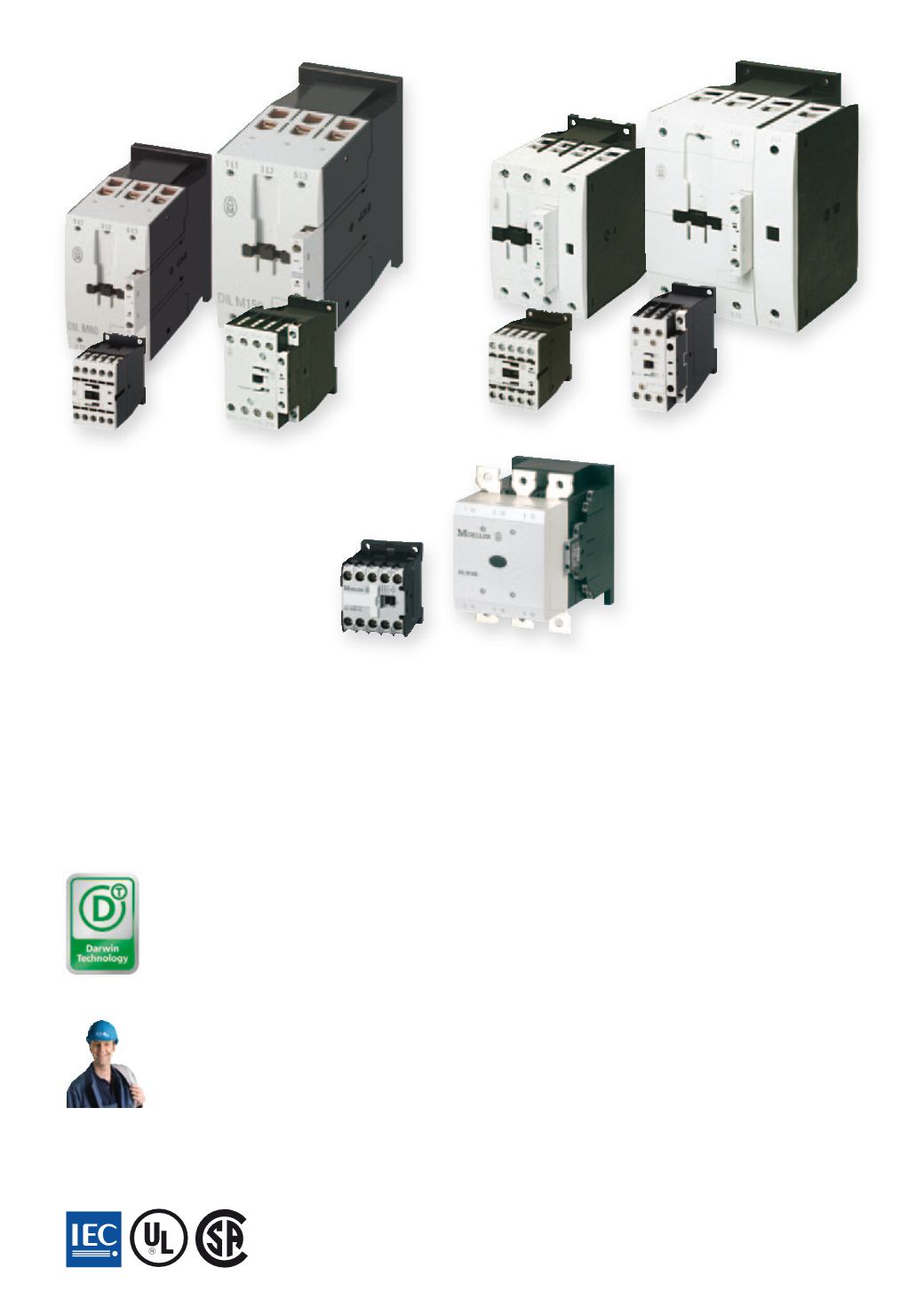

Mini contactor relay DILE…,contactor relays, contactors up to 12 A AC-3 at 400V
Compact dimensions for the highest packing densities +++ Extended performance range up to
5.5
kW at 400 V
AC and DC contactor system DILM…, contactor relays, 3 pole contactors up to 170 A AC-3
at 400V, 4 pole contactors up to 200 A AC-1
Easier engineering through identical construction sizes for AC- and DC-operated contactors +++
Energy savings and higher packing density in control panel due to minimized heat dissipation
+++ High wiring security through doubled box terminals +++ Less coupler relays: direct
actuation from the PLC for contactors up to 32 A +++ Easy engineering through integrated
suppressor circuits for DC +++ Uniform accessories for 3- and 4-pole contactors +++
Mechanical interlock double conductor run mountable without additional separation gap +++
Direct fieldbus connection through the communication system SmartWire-Darwin, through
plug-in type protective module
High rated contactors - contactors up to 1600 A AC-3 at 400V, contactors up to 2600 A
AC-1
Compact dimensions with high switching power +++ Direct actuation from the PLC saves
coupler relays +++ Easy engineering through wide range coils +++ Cost and energy savings for
control panel ventilation due to reduced heat dissipation +++ Long lifespan through vacuum
technology from 580 A
SmartWire-Darwin
The DIL product range offers contact elements which can be connected to the SmartWire-
Darwin communication system. ￫ Protective modules, Page 5/62
Continual operation requires high operational reliability in the components used. The
DILM contactor achieves the best lifespan values in AC-3 applications and is ideal for
heavy AC-4 jogging.
Mini contactor relays,
contactor relay, contactors
Eaton After Sales Service
Testing switching devices in
compliance with regulations
applicable to this technology
￫ Chapter 22
