9/42 DM4 soft starters
Communication module
Communicationmodule
Part no. overview
Application
Theplug-inDE4-NET-DP2communication
module is used for direct connection to
the PROFIBUS DP fieldbus (DIN 19245
Part 1 and 3). It can be usedwith DM4 soft
starters.
Function
The DE4-NET-DP2 module can be
plugged in and removed during
operation. It provides direct access to
all parameters. The drive (slave) can
be controlled and monitored via the
PLC (master). Status and alarm
messages are displayed.
Features
The DE4-NET-DP2 module receives its
power from the basic device or from
an external DC supply (+24 V, max.
60 mA) through two plug-in screw
terminals.
Model:
• 9-pole SUB-D plug
• Network topology:
PROFIBUS-DP line
• Max. cable length: 1200 m at 93.7
kBaud, 25 m at 12000 Baud
Documentation
For a detailed description, see the
documentation: AWB8240‐1398-EN.
This documentation is not supplied
with the device. You can download it
from our website:

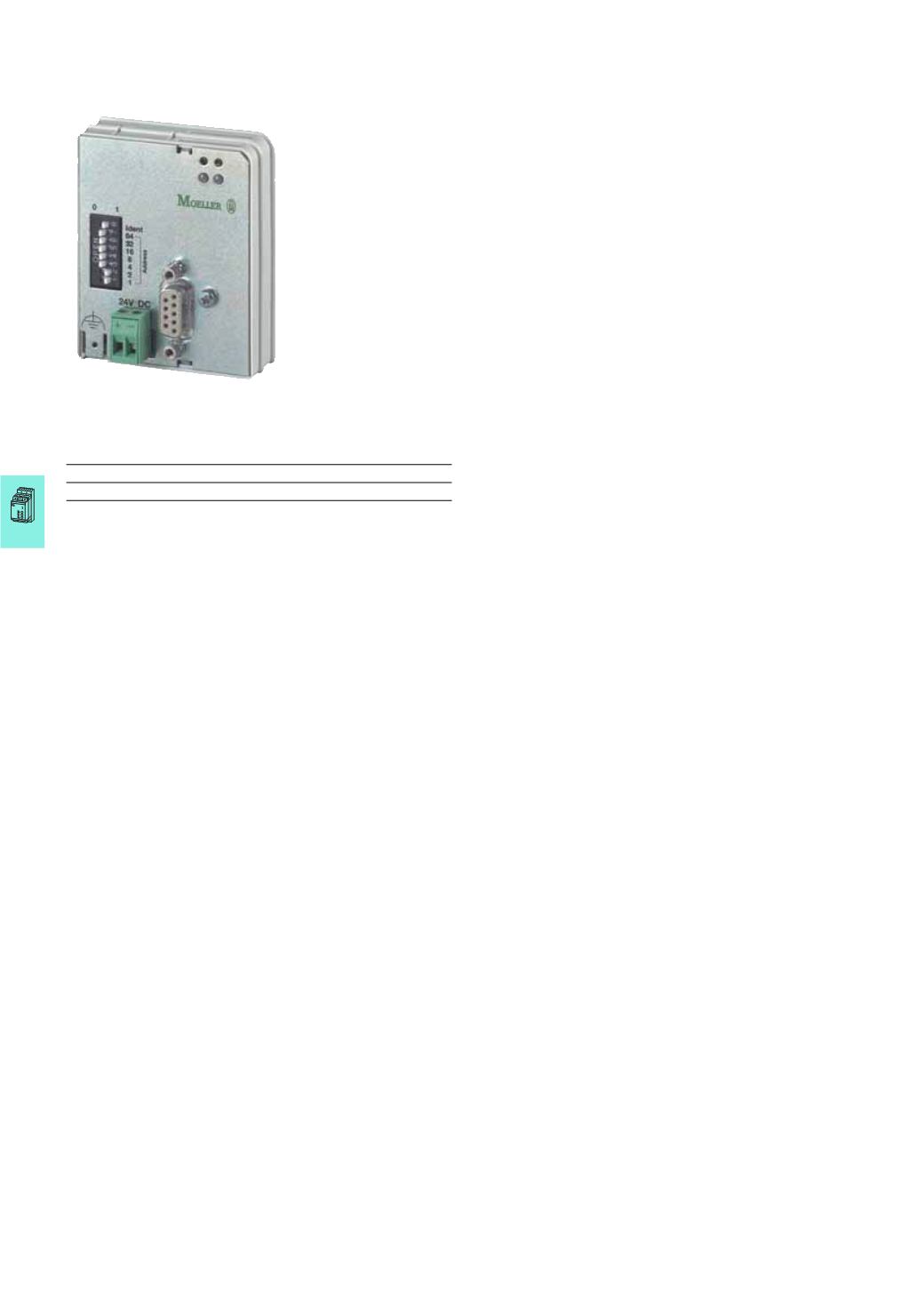

DE4-NET-DP2
PROFIBUS DP fieldbus module
DE4-...
