DM4 soft starters
Accessories
9/41
AccessoriesDescription
Part no. overview
Application
The DM4 soft starters are factory set
for the most common applications.
For various standard applications,
parameter sets can be selected via an
application selector switch.
There is no longer a need for manual
setting for different applications and
its associated risk of errors.
The preset application parameter sets
can also be selected via an optional
keypadwith plain text display. With the
keypad, all parameters can be viewed,
edited and adapted for specific
applications. The keypad is also
required for reprogramming the soft
starter’s digital or analog inputs and
outputs. Interface modules can be
used as an alternative to the keypad.
The soft starters can be interfaced
with a PLC via PROFIBUS-DP.
Assigning parameters via the PLC
offers the same range of functions as
are possible via the keypad.
Documentation
For a detailed description, see the
documentation: AWB8240‐1344.
The documentation is available on the
Internet at:

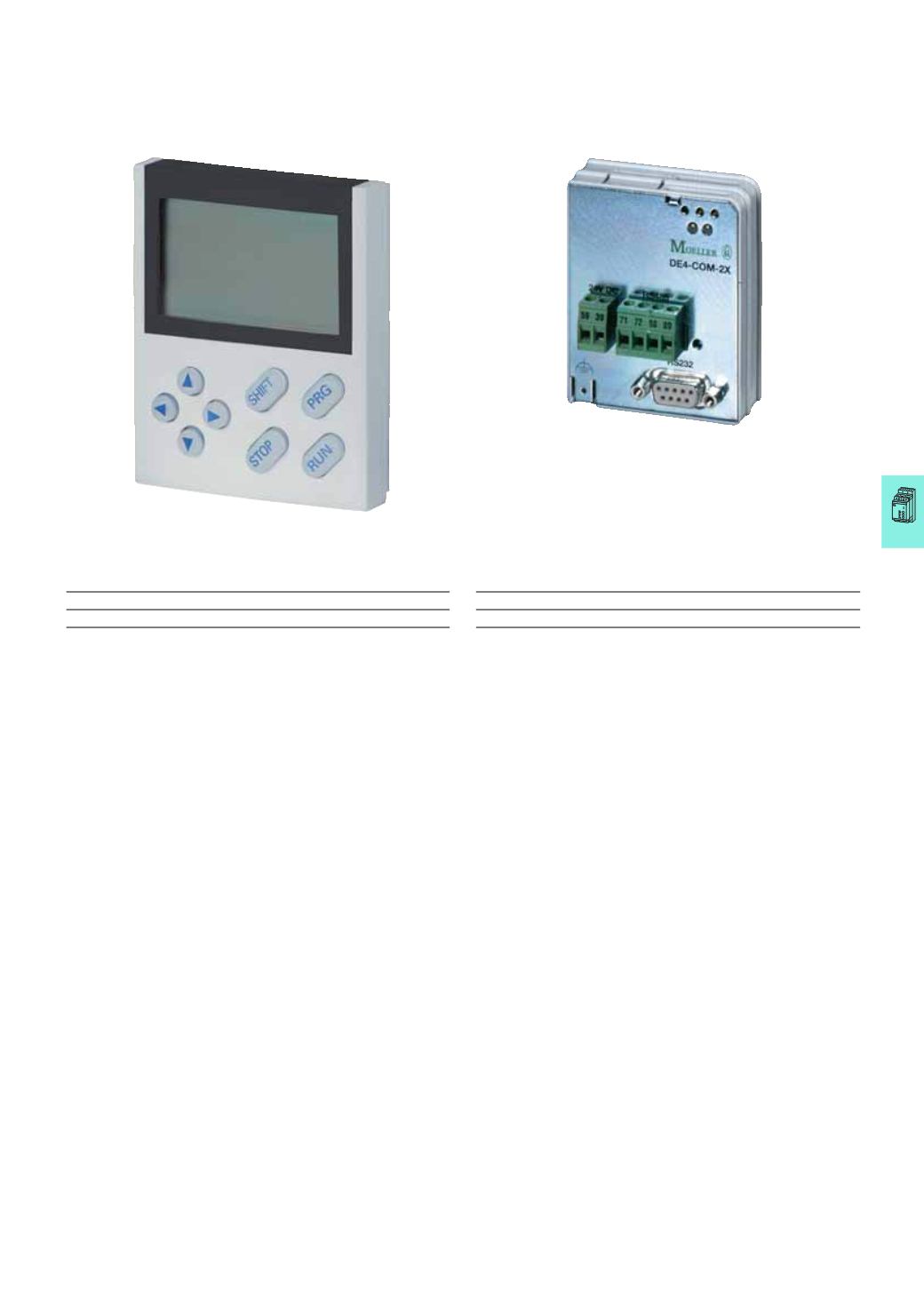

DE4-KEY-2
Keypad
Part no. overview
Application
The DE4-COM-2X plug-in communica-
tion module contains RS 232C and
RS 485 serial interfaces for direct
connection to a PC (point-to-point
connection). It can be used with DM4
soft starters.
Function
The DE4-COM-2X module can be
plugged in and removed during
operation. It provides direct access
to all parameters. The drive can be
controlled and monitored from the PC.
Status and alarm messages are
displayed.
Features
The DE4-COM-2X module receives its
power from the basic device or from
an external DC supply (+24 V, max.
80 mA) through two plug-in screw
terminals.
RS232C interface
• 9-pole SUB-D plug
• Pin 2 (RxD), pin 3 (TxD), pin 5 (GND)
• Point-to-point connection
• Max. cable length: 15 m
• Maximum data transfer rate:
19200 Bit/s
RS485 interface
• 4 pole plug-in screw terminals
• Network topology: in-line
• Max. cable length: 1200 m
• Maximum data transfer rate:
19200 Bit/s
Notes
The PS416-ZBK-210 serial interface
cable for connecting the serial
interface with a PC must be ordered
separately.
Documentation
For a detailed description, see manual
AWB823-1279D/GB/F.
This documentation is not supplied
with the device. You can download it
from our website:
DE4-COM-2X
RS 232C/RS 485 serial interface
DE4-...
