Eaton Industrial Switchgear - xStart switching, protections and actuating motors

244 / 439

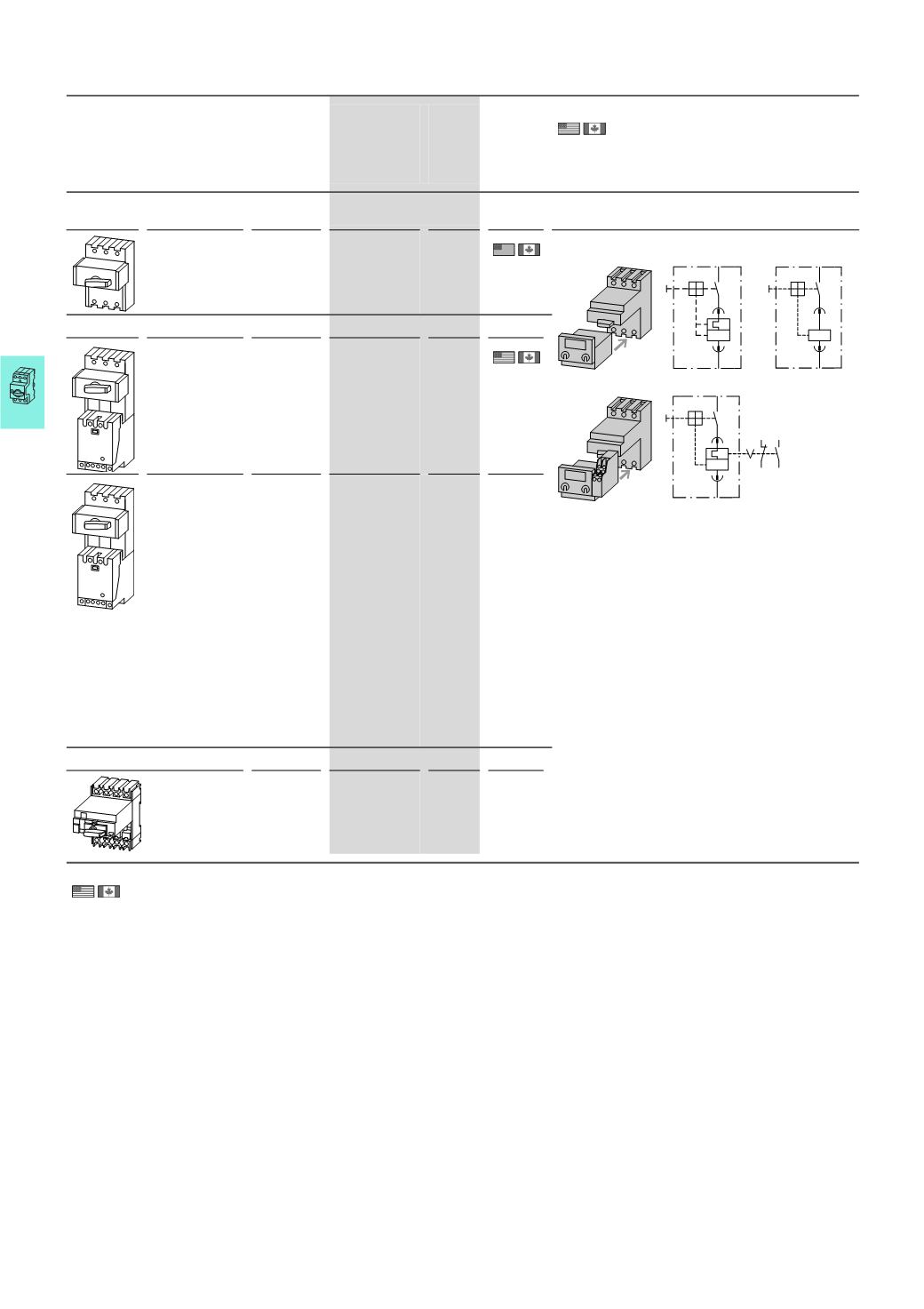

7/52 Motor-protective circuit-breakers PKZ2
Motor and system protection modules
2010 CA08103002Z-EN
Motorand systemprotectionmodules
Rated
uninterrupted
current
Part no.
Article no.
Price
See price
list
Std. pack Information relevant for export to North America
Iu
A
Basic device, 3 poles, motor and system
protection
– 40 PKZ2
026606
1 off
Basic device,3 pole, motor protection
Basic device PKZ2
with high-capacity
contact module
fitted S-PKZ2 (1 NC,
1 N/O) supplied on
C-PKZ2 clip plate.
Cannot be
combined with
Z...-0.6-PKZ2..
40 PKZ2/S(230V50HZ,
240V60HZ)
063572
1 off
Basic device PKZ2
with SE1A/11-PKZ2
contact module
fitted (1 NC, 1 N/O)
supplied on C-PKZ2
clip plate. Cannot
be combined with
Z...-0.6-PKZ2.
40 PKZ2/SE1A/
11(230V50HZ,
240V60HZ)
082142
1 off
Basic device, 4 poles, system protection
- 40 PKZ24
004521
1 off
Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 12528
CSA Class No. 3211-05
NA Certification UL Listed, CSA certified
Circuit for
ZM…PKZ2(4) M…PKZ2(4)
ZMR…PKZ2
Adjustable:
H ≙ manual position or
A ≙ automatic position
For EEx e applications the 95/96 break contact must always be
used to de-energize the (high-capacity) contact module or
contactor.
Motor-protective trip blocks ZMR-...-PKZ2 cannot be combined
with U/A voltage releases and RE/RS remote operators.
Further actuating voltages ￫Page 7/70
Manual ￫Page 7/69
I > I >
95
96
97
98
H A
I >
PKZ2, PKZ2/S... HPL07052EN
